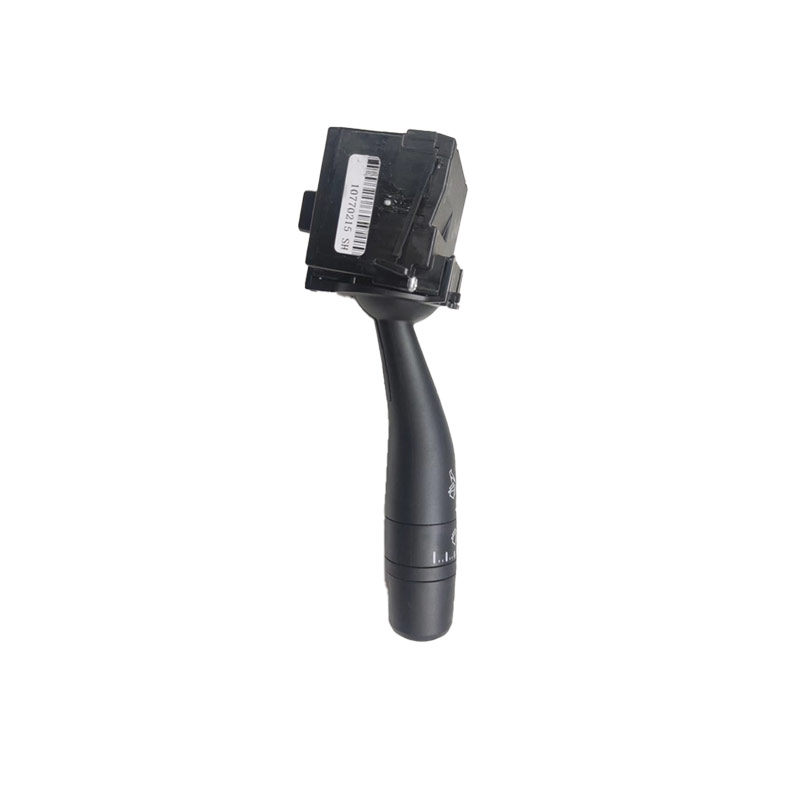

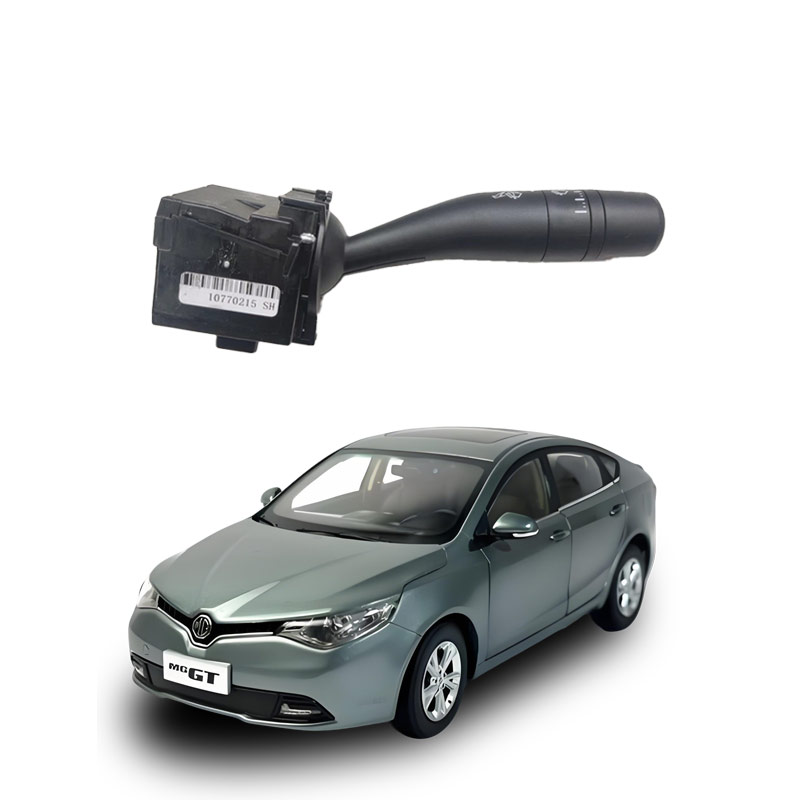

Car windshield wiper switch: The control core for safeguarding vision and troubleshooting
Among the numerous control components of a car, the windshield wiper switch may seem insignificant, but it is a crucial device that ensures driving safety. It is like the "vision guardian" of the driver, precisely controlling the working state of the wiper to clear vision obstructions in various weather conditions. As a frequently used component, the windshield wiper switch is prone to various faults, which can affect the normal operation of the wiper system. Understanding the functions and common faults of the windshield wiper switch is essential knowledge for every car owner.
The core function of the car windshield wiper switch
The core mission of the windshield wiper switch is to flexibly control the working mode of the wiper according to different weather and road conditions, ensuring that the driver always has a clear view in front. Its functions cover all scenarios from daily cleaning to extreme weather responses, which can be divided into the following categories:
Basic gear control: The most basic function of the windshield wiper switch is to achieve the opening, closing, and gear switching of the wiper. Common gears include "OFF" (off) gear, "MIST" (mist) gear, "INT" (intermittent) gear, "LO" (low speed) gear, and "HI" (high speed) gear. The "MIST" gear is suitable for clearing small amounts of water, dust, or insect debris on the glass, and the wiper will automatically reset after a single stroke of the lever; the "INT" gear works in light rain conditions, and the wiper operates at a preset interval in intermittent mode. Some models also support adjusting the intermittent time through a knob, adapting to different rainfall intensities; the "LO" and "HI" gears are continuous scraping modes, respectively addressing moderate rain and heavy rain conditions, ensuring that rain does not form a obstruction on the glass.
Smart sensor adjustment: Vehicles equipped with rain sensor systems have a windshield wiper switch with a sensitivity adjustment function. Drivers can adjust the sensor's sensitivity by rotating the button. Rotating to the right increases sensitivity, triggering the scraping when there is a light raindrop; rotating to the left reduces sensitivity to avoid "empty scraping" in heavy rain. This intelligent design enables the wiper system to automatically adjust the working frequency according to the rain amount, significantly enhancing driving convenience.
Front and rear wiper linkage: For SUVs, MPVs, and other models with rear wipers, the windshield wiper switch usually has a dedicated rear wiper control area. Rotating to the corresponding gear activates the rear wiper. Some models support intermittent and continuous modes for the rear wiper, helping the driver maintain a clear rear view, especially in reversing or muddy road conditions.
Glass water spray control: The windshield wiper switch also integrates the glass water spray function. Pulling the handle towards the driver's direction will automatically spray glass water, while the wiper operates simultaneously to achieve coordinated spraying and scraping, quickly removing stubborn stains such as oil films and mud on the glass.
Common faults and troubleshooting of car windshield wiper switches
The windshield wiper switch is exposed to the complex environment inside the car and is frequently operated, which can lead to internal component wear and aging, thereby causing faults. Common fault types and troubleshooting methods are as follows:
Wiper does not work: This is the most direct manifestation of a windshield wiper switch fault. When the switch is turned, the wiper does not respond, most likely due to poor contact or damage in the switch's internal circuit. At this point, first check if the fuse is blown. If the fuse is normal, measure the switch's continuity with a multimeter to determine the fault point. If the switch is damaged, replace the same model of wiper switch assembly.
Wiper operates abnormally: Wiper operates abnormally, with irregular swinging or inability to stop, is mostly caused by internal contact wear or incorrect control signals. For example, poor contact may cause the wiper to work intermittently or run at high speed in low-speed gear. In this case, try disassembling the switch to clean the internal contacts. If they are severely worn, replace the switch. The glass water spray function fails: After pulling the switch, the glass water does not spray out. Besides checking the glass water level and whether the spray nozzle is blocked, the spray control circuit of the wiper switch also needs to be checked. If the spray control module inside the switch is damaged, it will prevent the signal from being transmitted to the spray motor. At this time, the switch or the internal circuit need to be replaced.
The gear adjustment fails: Some car owners may encounter problems such as the inability to switch the wiper gear or the failure of intermittent gear time adjustment. This is usually caused by the wear and jamming of the gear adjustment mechanism inside the switch. Minor jamming can be solved by lubricating the adjustment mechanism. If the wear is severe, the switch assembly needs to be replaced.
Daily maintenance and care of the wiper switch
To extend the service life of the wiper switch and reduce the occurrence of faults, car owners should pay attention to the following points in daily driving:
Avoid violent operation: When operating the wiper switch, gently move it and avoid applying excessive force to prevent internal components from being damaged. Especially in winter, if the wiper is frozen on the glass, do not forcibly move the switch. First, thaw it and then operate to prevent burning out the motor or damaging the switch.
Keep clean and dry: Regularly clean the dust and stains on the surface of the wiper switch to avoid liquids from seeping into the switch and causing a short circuit. When washing the car, be careful not to spray the high-pressure water gun directly at the switch area.
Regular inspection and testing: During each vehicle maintenance, test each gear of the wiper switch to ensure normal function. If any abnormalities are found, promptly investigate and repair to avoid small faults from escalating into major problems.
In conclusion, the wiper switch is an indispensable part of the car's safety system, and its function directly relates to the driving view and driving safety. Understanding its functions and common faults, and mastering the correct usage and maintenance methods, can ensure that the wiper system remains in the best condition and protects each trip.
