Car radiator frame: The invisible guardian of the vehicle's front
In the complex structure of a car, the radiator frame may seem insignificant, but it is a crucial component that ensures the normal operation of the vehicle and the integrity of its appearance. It is like an invisible guardian of the vehicle's front, silently undertaking multiple important responsibilities. Once it fails, it may trigger a series of chain reactions, affecting the vehicle's performance and driving safety.
The core function of the car radiator frame

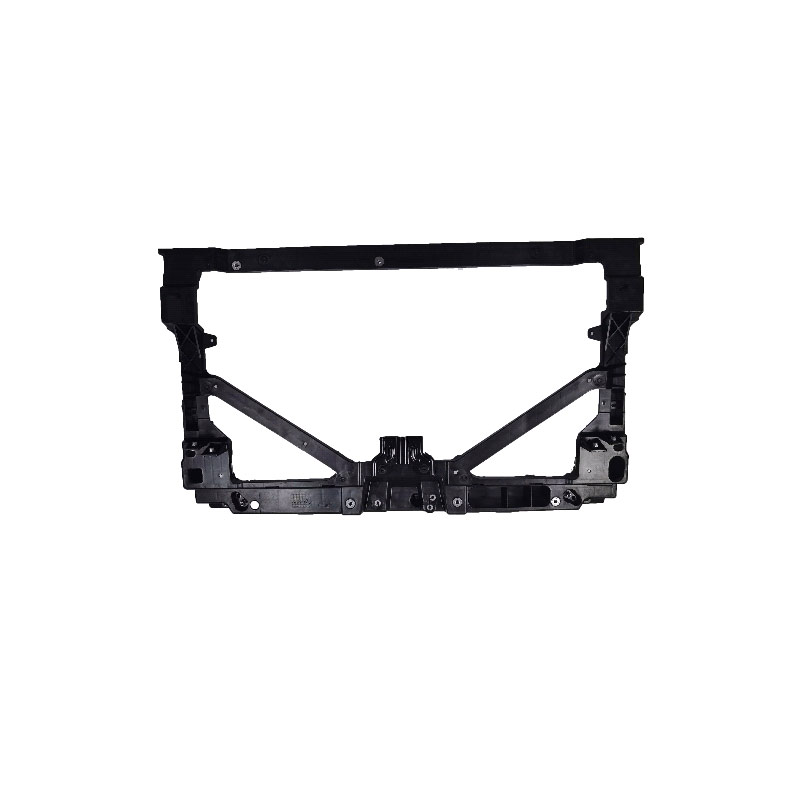

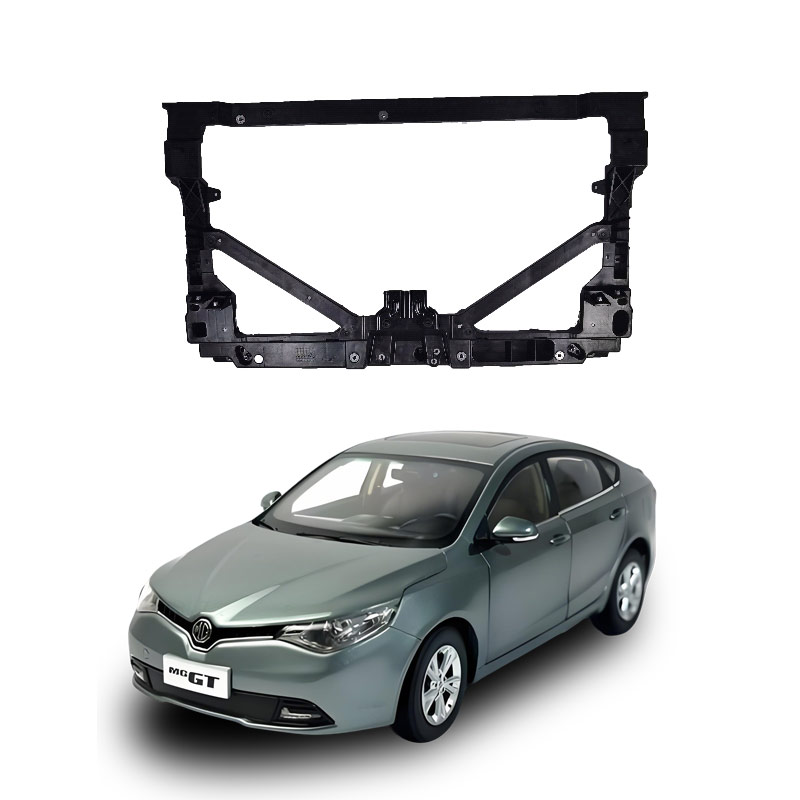

The radiator frame, also known as the radiator support frame or radiator gantry, is a key load-bearing component of the vehicle's cooling system and the vehicle's front structure. Its role runs through multiple dimensions of the vehicle's functions and safety.
Firstly, it is the stable foundation of the cooling system. The core responsibility of the radiator frame is to fix the radiator and the condenser, ensuring that these core components of the cooling system remain in a stable position during vehicle operation, thereby ensuring the normal operation of the engine's cooling function. It is like a sturdy support, spanning the vehicle's front, firmly holding the radiator and the condenser, preventing these components from shifting or shaking during bumps, acceleration, and deceleration, thereby affecting the circulation of coolant and the dissipation of heat.
Secondly, it bears the responsibility of connecting the vehicle's front appearance components. Front bumpers, headlights, fenders, grilles, and many other front appearance components all need to be fixed by the radiator frame. It is like a hub, integrating these scattered components to maintain the overall shape of the vehicle's front. At the same time, the hood lock, some sensors are also installed on the radiator frame, and its stability directly affects the precise operation of these components, such as whether the headlights' illumination angle is accurate, whether the hood lock can operate normally, etc.
Furthermore, it is of great significance to the overall stability of the engine compartment. The rigidity of the radiator frame directly affects the performance of the engine compartment on bumpy roads. If the frame is not rigid enough, when the vehicle travels on bumpy roads, the engine compartment is prone to shaking, which can cause abnormal sounds, or even lead to loose water pipe interfaces and coolant leakage, affecting the normal operation of the engine. Moreover, in the event of a collision, the original design radiator frame can participate in collision energy absorption, through a reasonable deformation path, to disperse the impact force and protect the safety of the passenger compartment.
In addition, during the transportation and installation of the radiator, the radiator frame can also play a role in protecting the radiator, sharing the pressure and weight of the inside and outside of the radiator and preventing the radiator from being damaged during transportation and installation.
Common faults and impacts of the car radiator frame
Although the radiator frame is of crucial importance, it is prone to various factors affecting it and causing faults in daily use.
Collision damage is the most common cause of radiator frame faults. Due to its position in the front of the vehicle, when a vehicle experiences a minor scrape or collision during operation, it often takes the brunt of it. For example, the Fit GE8 model is prone to damage due to its front radiator frame position, which can be damaged by minor scrapes or collisions during operation. Collision can cause the frame to deform, crack, or even break. Deformed frames will affect the positioning of the radiator and headlights, causing the headlights' illumination angle to shift, affecting driving safety at night; it may also cause the radiator and water pipe interfaces to be misaligned, resulting in coolant leakage and an increase in engine temperature, and in severe cases, it can lead to engine seizure, damage.
Corrosion and rust are also a major threat to the radiator frame. Long-term exposure to humid environments or coolant leakage soaking will cause the radiator frame to gradually rust and corrode， especially for those made of steel materials， where rust will continuously erode its structure， reducing its strength. When the rust is severe， the frame's load-bearing capacity will significantly decrease， unable to effectively fix the radiator and appearance components， increasing the risk of component detachment.
Aging and loosening are also not to be ignored. As the vehicle's service life increases， the material of the radiator frame will gradually age， and some connection gaskets and screws will also become loose. For example, the old model Mazda 6 is prone to having the rubber pads of the water tank frame deteriorate, causing the frame to loosen and the entire front structure to shake. During driving, there will be a clicking sound. The loosened frame not only causes abnormal noises but also makes the water tank, condenser and other components unevenly stressed, accelerating the aging and damage of surrounding components.
Some models also have frame damage problems due to design flaws. For instance, the low-end or mid-range models of the new Jetta and Santana, due to the omission of the front bumper deflector and the engine under guard plate, the water tank frame is directly exposed at the bottom of the vehicle. The thin plastic plate at the bottom end is very likely to be damaged when the vehicle is bottomed out, which will affect the function of the entire frame and even cause damage to the water tank and condenser.
The response and prevention of water tank frame faults
When facing water tank frame faults, timely detection and handling are crucial. In daily driving, car owners should regularly open the engine compartment for inspection, observing whether the water tank frame has deformation, cracks, rusting, etc., and checking if the connecting screws have signs of loosening or being tightened. If a slight crack is found on the frame and it is not in a stressed area, it can be repaired according to professional advice; however, if the crack is large, there is obvious deformation, severe rusting or a serious collision has occurred, the frame should be replaced immediately.
When choosing a new water tank frame to replace, it is recommended to prioritize original factory parts or reliable brand parts to ensure that their materials, hole position accuracy, etc. are matched with the original vehicle, avoiding new faults caused by accessory quality problems. At the same time, for models with design flaws, consider installing front bumper deflector, engine under guard plate and other protective components to reduce the risk of water tank frame damage.
In conclusion, although the water tank frame is not conspicuous, it plays an indispensable role in vehicle operation. Understanding its function, attaching importance to its faults, and doing regular inspections and maintenance can ensure that this hidden guardian of the vehicle head continues to function and guarantee the safety and stable operation of the vehicle.
