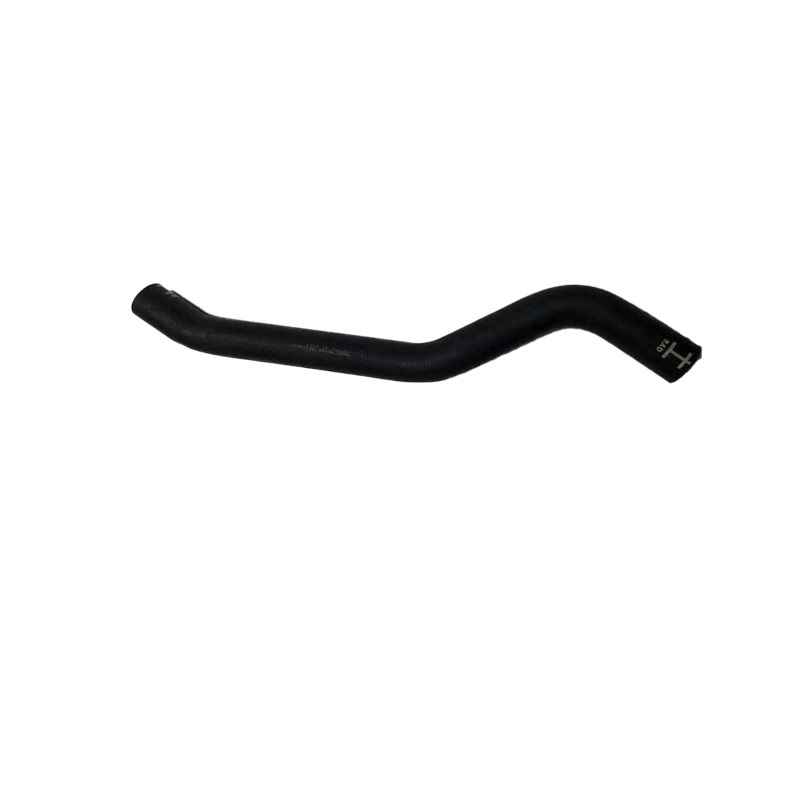

The core function of the upper water pipe of the car water tank
The upper water pipe of the car water tank is the "artery" of the engine cooling system, playing multiple crucial roles in maintaining the normal operating temperature of the engine. Firstly, it is the exclusive delivery channel for high-temperature coolant. The pipe connects the outlet of the engine water passage at one end and the top of the water tank at the other end. When the engine water temperature rises to 80 - 90℃, the thermostat opens the large circulation mode, and the coolant at a temperature of 90 - 95℃ will quickly flow into the water tank through this pipe, preparing for the subsequent heat dissipation process. The internal coolant flow rate can reach 8 - 12L/minute, efficiently conducting the large amount of heat generated by the engine. Secondly, it undertakes the responsibility of pressure center regulation. This pipe has to withstand the main pressure of the cooling system ranging from 1.1 - 1.5bar, and it is also linked with the expansion water tank to precisely regulate the system pressure, avoiding pipe burst due to excessive pressure or air blockage caused by insufficient pressure. Its sealing performance directly affects the operation efficiency of the entire cooling system. Moreover, the unique "top liquid intake" design helps optimize the heat dissipation efficiency. When the hot liquid enters the top of the water tank, it naturally stratifies and is assisted by gravity for circulation. It works in conjunction with the heat dissipation fins and electronic fans in the water tank. Compared to the side-mounted system, it can enhance the heat dissipation efficiency by approximately 15%. This helps lower the coolant temperature quickly and ensure that the engine remains within the appropriate operating temperature range.
Common faults and solutions of the upper water pipe of the car water tank
During long-term use, the upper water pipe of the car water tank may malfunction due to various factors, and it is necessary to identify and address them promptly.
Leakage fault This is the most common problem, and the causes are diverse. Aging of the pipe is one of the main reasons. When exposed to high temperatures for a long time, the rubber material of the pipe will gradually harden and become brittle, resulting in cracks or damage, which leads to coolant leakage. In this case, it is necessary to replace the reliable and vehicle model-compliant pipe in a timely manner. It is recommended to replace it every 2 years or 40,000 kilometers, whichever comes first. Poor sealing at the connection point can also cause leakage. For example, loose clamps or aging and damaged sealing gaskets cause the connection point to not fit tightly, allowing coolant to seep out through the gaps. At this time, the clamps should be tightened, or the sealing gaskets should be replaced. Ensure that the connection point is clean and free of impurities and oil stains when installing to maintain a good sealing effect. In addition, excessive water tank pressure, such as engine overheating or cooling system failure, causing the internal pressure to exceed the range that the pipe can withstand, or external force damage to the pipe caused by foreign objects impact or scraping during driving, can also cause leakage. If the leakage is caused by excessive pressure, a comprehensive check of the cooling system should be conducted to identify pump failures, radiator blockages, and other issues and repair them promptly; for external force damage, handle it based on the extent of the damage. Small damages can be temporarily repaired with professional glue or tape, but for safety, it is best to replace the damaged pipe.
Abnormal temperature difference between the upper and lower water pipes is normal after a stable warm-up. The temperature difference between the upper and lower water pipes should be between 5 - 15℃. If this range is exceeded, it is considered abnormal. If the upper pipe is hot and the lower pipe is cool, it is likely that the thermostat is stuck in the closed state, and the coolant only circulates internally in a small manner. The upper pipe continuously absorbs heat and becomes hot to the touch, while the lower pipe, not participating in the circulation, remains at a low temperature. This situation requires immediate inspection of the thermostat and replacement with original factory parts. If the coolant temperature difference occurs after changing the antifreeze or after maintenance, it is usually due to air blockage in the cooling system. Air hinders the circulation of coolant, resulting in uneven heat distribution and accompanied by fluctuating water temperature gauges. Correct排气 requires cold vehicle operation. Slowly unscrew the antifreeze tank cap， start the engine at idle speed， and wait for the water temperature to rise. Then gently step on the accelerator to observe the bubbles being expelled from the tank until the liquid level stabilizes. Manual排气 is ineffective， then a professional vacuum extraction tool should be used. The failure of the water pump can also cause abnormal temperature differences. If the pump impeller is worn or the belt slips, it will result in insufficient power for the coolant circulation, manifesting as no fluctuation in the water tank level after cold engine start, and a continuous temperature difference of over 15℃ between the upper and lower water pipes. During inspection, the antifreeze tank can be opened to observe if the liquid level flows regularly at idle speed. If it is stagnant, the water pump may be faulty. Vehicles with over 80,000 kilometers of mileage should be regularly checked for water pumps and worn impellers or slipping belts should be replaced in time.
If the water pipe is flattened, once it is discovered that the upper water pipe of the water tank is flattened, it usually indicates that the water tank is dehydrated or there is a blockage. Dehydration of the water tank will make it difficult for hot air to escape, causing the water temperature to rise sharply, and subsequently flattening the water pipe; a blockage will hinder the circulation of the coolant, causing abnormal pressure in the pipeline. In such cases, it is essential to promptly visit a professional repair shop to check the cooling system, identify the root cause of the fault, and avoid serious problems such as engine overheating.
Key points of daily maintenance
To extend the service life of the upper water pipe of the water tank and reduce the occurrence of faults, daily maintenance is indispensable. Regularly check the elasticity of the water pipe and the sealing performance of the interface, pay attention to any signs of bulging, cracks, leakage, etc. of aging, and pay special attention during seasonal maintenance. At the same time, use the original factory specification antifreeze, avoid corrosion of the pipeline by inferior antifreeze, and strictly follow the correct steps when replacing the antifreeze to ensure that the air is completely expelled from the cooling system.
