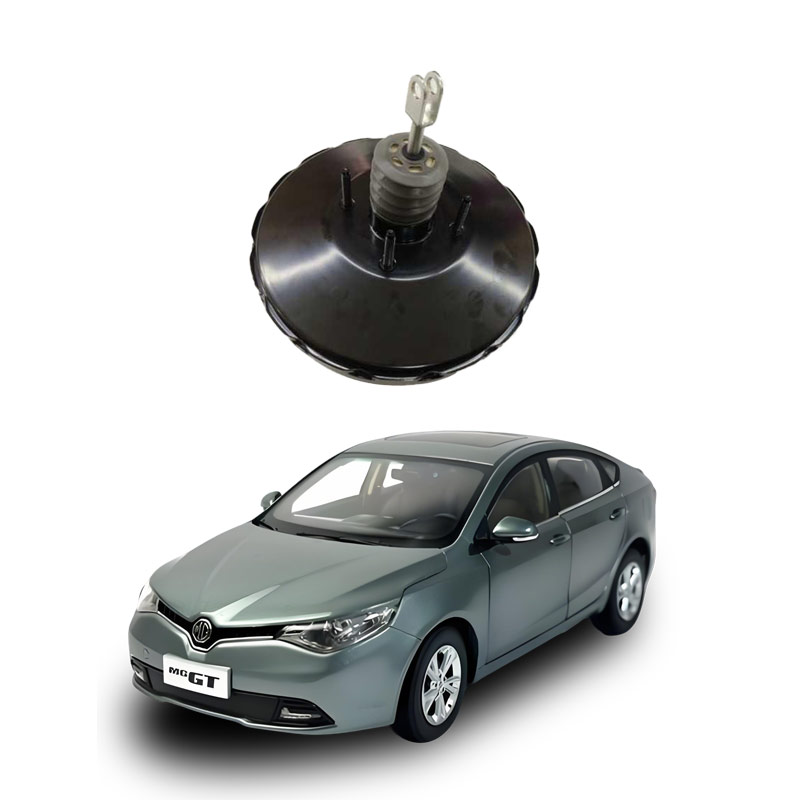

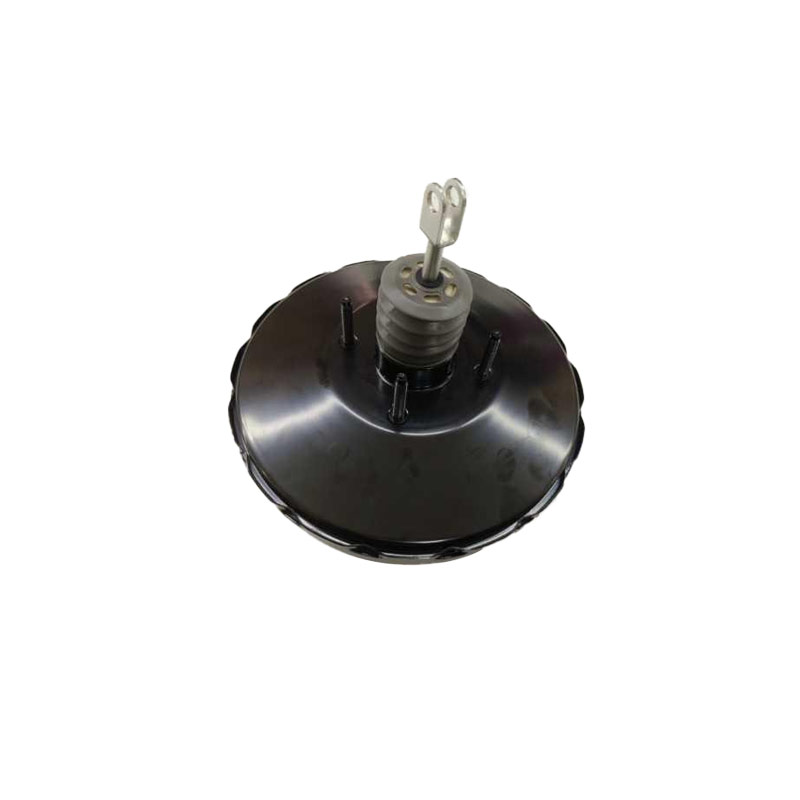

Automobile Vacuum Booster Assembly: The Core Defender and Fault Response in the Brake System
In the "family" of the automobile brake system, the vacuum booster assembly is regarded as a humble yet indispensable core member. It is like a powerful figure hidden behind the scenes, silently safeguarding each braking operation of the driver. It not only reduces the physical burden on the driver but also builds a crucial defense line for driving safety.
The core function of the vacuum booster assembly
Efficient braking, reduced operation burden The most obvious function of the vacuum booster assembly is to achieve efficient braking. It uses 50 - 80 kPa of vacuum negative pressure generated by the engine intake manifold or an electric vacuum pump. When the driver steps on the brake pedal, the diaphragm of the servo chamber forms a pressure difference on both sides, thereby generating a 600 - 1200 N thrust, which is superimposed on the driver's foot pressure, reducing the pedal force by 40% - 70%. For example, the driver only needs 10 kg of foot force to achieve the equivalent of 30 kg of actual braking effect, which is particularly friendly for female or physically weak drivers, effectively reducing the physical exhaustion during long driving.
Failure safety guarantee, survival in extreme situations In case of a vacuum system failure, the failure safety guarantee function of the vacuum booster assembly will come into play. At this time, the control valve push rod will directly push the main cylinder push rod through the mechanical structure. Although the force required on the brake pedal will significantly increase from the normal 80 - 150 N to 300 - 500 N, the basic braking force is still retained, in line with the national mandatory safety standard (GB 21670 - 2008). This design ensures that the vehicle can maintain basic braking capability in extreme situations, giving drivers precious time for emergency handling.
Real-time response control, improved braking accuracy It adopts a dual-valve structure, which can complete the vacuum path switching within 0.1 - 0.3 seconds. The braking assistance delay is lower than the international standard threshold of 200 ms, ensuring the immediate response of the braking operation. The internal rubber counteracting disc can transfer 85% - 95% of the servo force and simultaneously provide the driver with pedal force feedback, helping the driver accurately perceive the braking force, improving the accuracy of the braking operation. For electric vehicle models, the electric vacuum pump installed also can meet the dual requirements of the energy recovery system and the traditional braking system, optimizing the vehicle's braking performance and energy utilization efficiency.
Common faults and solutions of the vacuum booster assembly
Brake pedal becomes hard, increased braking resistance This is a common fault manifestation, usually indicating a sealing problem in the vacuum system, possibly caused by vacuum pipe leakage, aging and damaged vacuum pump sealing ring, etc. When this occurs, the driver will feel that braking is like stepping on "hard stones", requiring more effort. The solution is to promptly go to a professional repair facility to check the sealing of the vacuum pipe, vacuum pump, and the booster itself, and replace the damaged sealing ring or repair the leaking pipe.
Abnormal return of the brake pedal If the brake pedal returns slowly or fails to return after being depressed, it is likely that there is a mechanical failure in the booster internal structure, such as component jamming or damage. This will affect the normal reset of the braking system and increase driving risks. During maintenance, the booster assembly needs to be disassembled to inspect the internal mechanical components, lubricate the jammed components or replace the damaged parts.
Increased braking distance, decreased braking performance When the vacuum booster assembly fails to provide sufficient assistance, the braking effect will be greatly reduced, and the braking distance will significantly increase. The fault may be caused by vacuum pump motor or electronic delay module failure, pressure switch or pressure switch line failure, etc. Maintenance personnel can read the fault code and data flow by connecting a diagnostic instrument to check the performance status, working current and vacuum system pressure value of the vacuum pump, determine the specific fault point and replace the corresponding components. Brake noise and vehicle shaking During the braking process, if there is abnormal noise or vehicle shaking, it may be due to wear of the internal components of the booster or a malfunction of the vacuum booster, causing uneven braking force. At this time, it is necessary to promptly check the wear of the internal parts of the booster, replace the severely worn parts, and also check whether there are any air leaks in the vacuum system to ensure uniform and stable braking force.
Although the vacuum booster assembly is hidden inside the vehicle, it directly relates to driving safety and driving experience. When drivers use the vehicle daily, they should pay attention to the abnormal manifestations of the braking system and regularly inspect and maintain the vacuum booster assembly. If any problems are found, they should be dealt with promptly, so that this "backing guard" can always perform at its best and ensure the safety of every trip.
