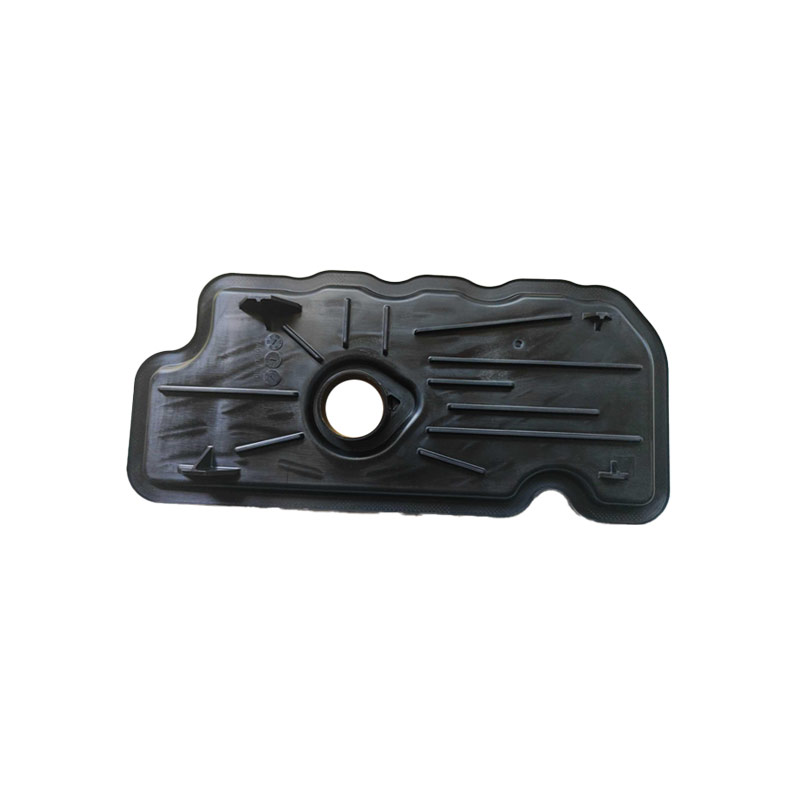

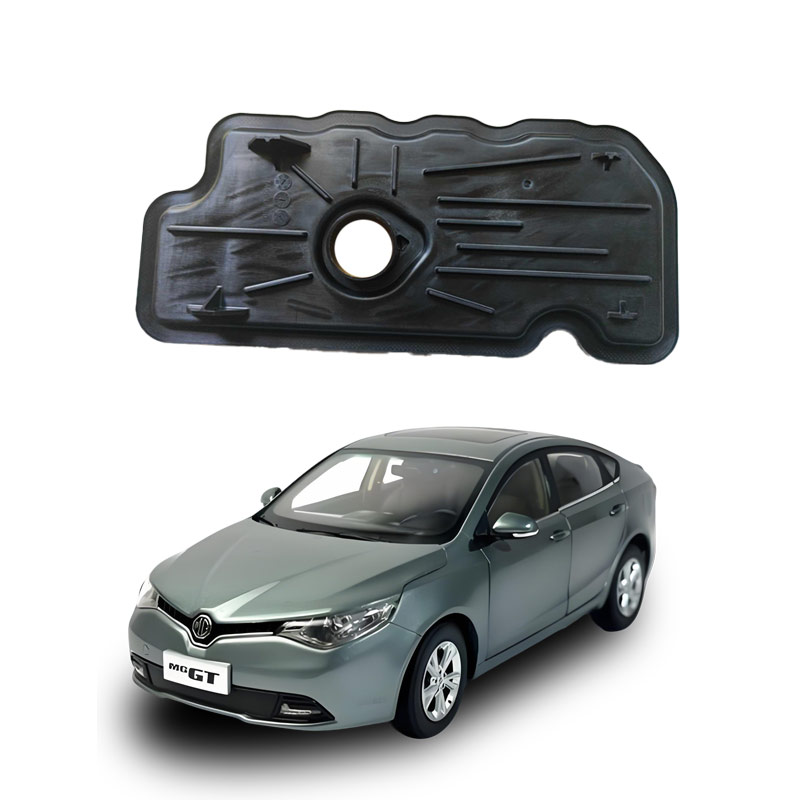

Transmission Filter: The Invisible Guardian of the Transmission System
In the transmission system of a car, the transmission is the core component that determines the efficiency of power transmission and the smoothness of driving. And the transmission filter is the "invisible guardian" that ensures its stable operation. This seemingly insignificant component undertakes the crucial task of filtering out impurities from the transmission oil and maintaining the cleanliness inside the transmission. It directly affects the lifespan and performance of the transmission.
The core function of the transmission filter
The primary function of the transmission filter is to filter out impurities from the transmission oil, providing a clean environment for the internal precision components. The transmission oil performs multiple tasks during operation, such as transmitting power, cooling components, and lubricating gears. Components such as friction plates and gears will inevitably produce metal powder, sediment, and other impurities during long-term operation. The filter can effectively intercept these contaminants, preventing them from circulating into the planetary gear set, valve body, and other precision areas with the oil, and preventing increased wear or oil blockage.
From the structural design perspective, transmission filters mostly adopt an integrated structure, which not only ensures the sealing of the filtering process but also simplifies the replacement process, suitable for both manual and automatic transmissions and other types. For automatic transmissions, the filter is particularly crucial as it can intercept over 90% of harmful impurities, maintaining the stability of core functions such as lubrication, cooling, and hydraulic transmission, and reducing the risk of shift judder and abnormal noise.
In addition, the filter's lifespan usually matches the replacement cycle of the transmission oil, with a low replacement cost but providing continuous protection for the transmission. Without the filtering effect of the filter, impurities will accelerate component wear and even cause locking, and subsequent repairs will not only be complex but also cost significantly more.
Abnormal fault manifestations of the transmission filter
The filter may seem sturdy, but it can also malfunction due to long-term use or improper maintenance, thereby causing various transmission faults. Its shift judder and slowness. When the filter is damaged, impurities directly contaminate the transmission oil, causing a decline in oil performance, and during shifting, there will be a noticeable judder; if the filter is clogged, the oil flow is blocked, and the shifting components cannot receive sufficient drive oil pressure, resulting in delayed shifting, and the problem becomes more prominent in winter when the oil viscosity increases, or even difficulty in shifting. Its transmission abnormal noise and burnt smell. A clogged filter causes insufficient lubrication, and components due to increased friction produce "clicking" and "buzzing" sounds; severely, the friction plate slips and generates a burnt smell, which is a clear sign of internal component damage. Its transmission oil leakage. If the filter installation is not in place or misaligned, it may cause oil accumulation pressure to rise, break through the sealing gasket, and cause oil leakage; if the filter is damaged, impurities will accelerate the aging of the sealing parts, further increasing the risk of oil leakage. Finally, its transmission overheating. A clogged filter will cause poor oil circulation and reduced heat dissipation efficiency, with heat accumulating in the transmission, which may cause the oil temperature indicator light to illuminate. Long-term high temperature will accelerate oil oxidation and deterioration, damaging internal components.
Causes and preventive measures for filter failures
Filter failures mainly result from three aspects: first, the filter itself ages and gets clogged, with the filter pore deforming over time, reducing the filtering efficiency; second, the transmission oil is not replaced for a long time, with the oil oxidizing and deteriorating, and impurities accumulating continuously; third, using inferior transmission oil, which is prone to decomposition and oxidation at high temperatures, exacerbating component wear and filter clogging.
To avoid filter failures, car owners should regularly check the condition of the transmission oil, observing whether the oil is cloudy, discolored, or has a burnt smell. According to the vehicle manual, replace the transmission oil every 4-6 thousand kilometers or every 2 years, and replace the filter at the same time; if the vehicle is driven in congested or high-temperature environments for a long time, the replacement cycle should be shortened. During replacement, pay attention to choosing an adapter filter for the vehicle model, and ensure the seal is in place when installing, to prevent oil leakage.
For different types of gearboxes, the replacement of filters also varies: For AT gearboxes, the cleanliness of the oil is highly required, and when replacing the oil, the filter must be replaced simultaneously; for CVT gearboxes, the external filter element needs to be replaced during each maintenance, while the internal filter net generally does not need to be replaced frequently; for dual-clutch gearboxes, the filter also needs to be replaced regularly to ensure the smooth operation of the shifting mechanism. Conclusion
Although the transmission filter is small, it is a crucial guarantee for the smooth operation of the transmission. Understanding its function and fault manifestations, and paying attention to daily maintenance and regular replacement, can effectively extend the lifespan of the transmission and avoid costly repairs. As a car owner, do not ignore this "invisible guardian" and let it always protect your car's transmission system.
