The "invisible bond" of automotive power: The functions and fault analysis of timing belts and timing chains
In the core operation system of an automotive engine, the timing belt and timing chain are like "invisible bonds", seemingly insignificant but controlling the precise rhythm of the engine's valve mechanism, serving as the key guarantee for the engine's normal operation.
From the perspective of their functions, both bear the same core mission: driving the engine's valve mechanism, allowing intake and exhaust valves to open and close at precise moments, synchronizing perfectly with the four strokes of the piston - inhalation, compression, power generation, and exhaust. Specifically, they connect the crankshaft and camshaft, ensuring that when the crankshaft rotates two times, the camshaft rotates exactly once, allowing the intake and exhaust valves to complete one opening and closing action each, enabling the mixture to enter the cylinder promptly and the exhaust to be smoothly discharged, ensuring the engine's power output and fuel economy.

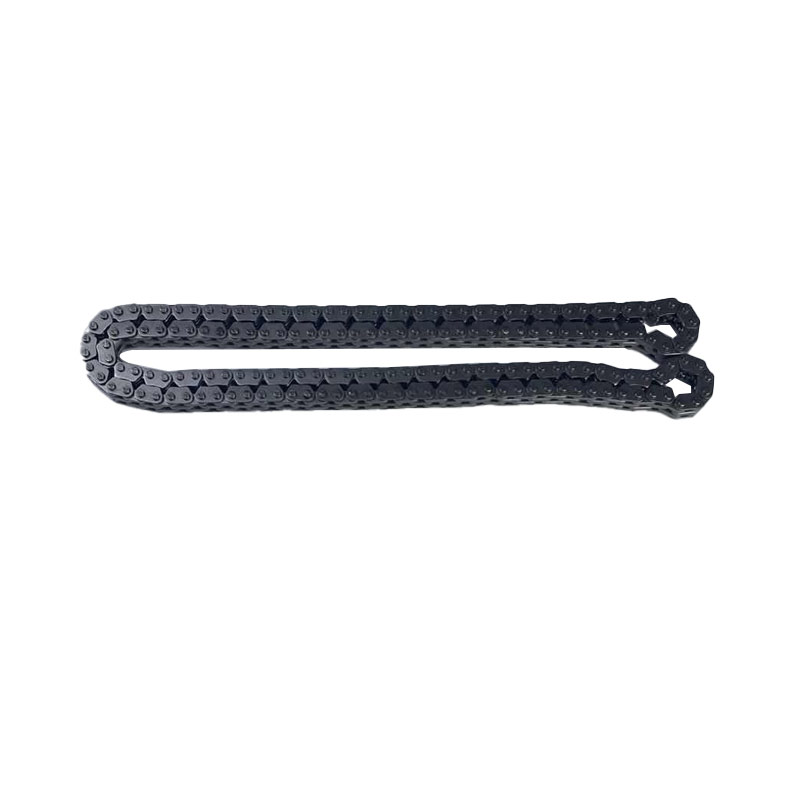

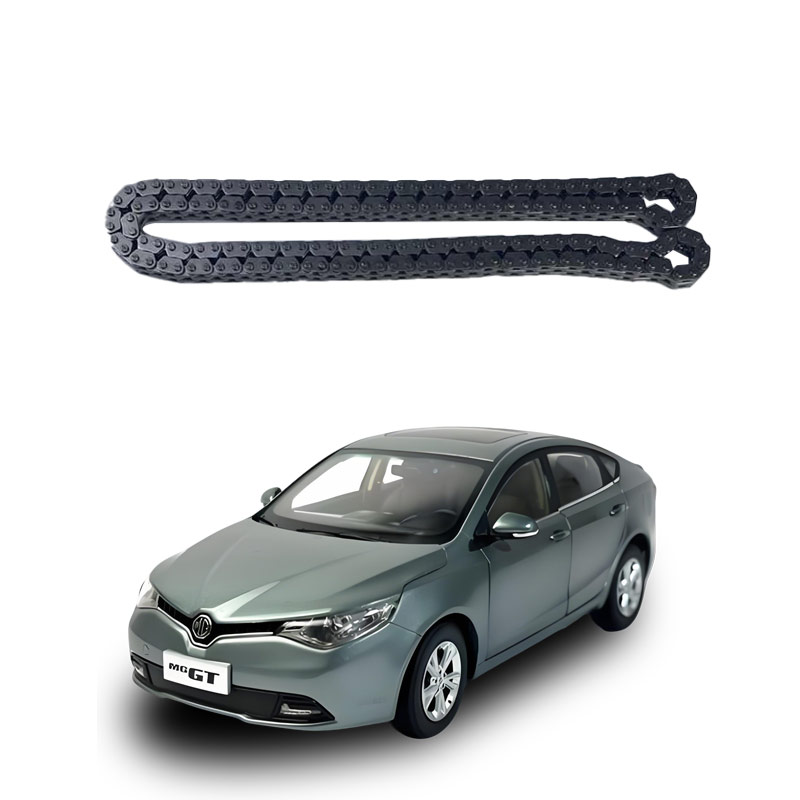

However, there are significant differences in the materials and characteristics of the two. Timing belts are mostly made of rubber, with a fiber layer embedded inside to enhance toughness. During operation, they produce low noise, have low transmission resistance, and have lower manufacturing costs. But rubber materials are susceptible to temperature and oil contamination, making them consumables. Over time, they will age and crack, typically requiring replacement after 6 - 10 thousand miles. Timing chains, on the other hand, use a metal link structure, offering greater durability. Most models claim that they can be maintained without maintenance for a lifetime, with a lifespan of over 20 thousand miles. However, they produce a slight metal friction sound during operation and rely on engine oil for lubrication. If the oil quality is poor or not replaced in time, it will accelerate their wear.
Whether it is the timing belt or the timing chain, once a fault occurs, it will have a significant impact on the engine. The most direct manifestation of a timing belt fault is aging and breakage. At that moment, the camshaft loses driving force, and the valve timing completely becomes chaotic, causing the engine to immediately shut down. For interference-type engines, it can also lead to collisions between the piston and the valve, causing severe mechanical damage such as valve bending and piston damage, with repair costs often exceeding tens of thousands of yuan. Before breaking, it may also emit warning sounds, such as a "clicking" sound in the engine compartment when cold starting, which gradually subsides after warm-up. However, as the wear intensifies, the abnormal noise will persist, and the vehicle may experience delayed startup, lack of acceleration power, and abnormal increase in fuel consumption.
Timing chain faults are mostly characterized by elongation and skipping teeth. Initially, there may be a "thumping" metallic knocking sound during cold start, which improves after warm-up. However, as the wear intensifies, the abnormal noise will persist, and the vehicle will experience delayed startup, lack of acceleration power, and unstable idle. If the chain elongates excessively, the tensioner cannot effectively adjust the tension, causing skipping teeth, resulting in misaligned valve timing and, in severe cases, causing the piston to hit the valve, even leading to the engine's immediate failure. Additionally, chain faults will also be accompanied by a significant increase in fuel consumption and oil consumption, and the engine fault indicator light on the dashboard may also illuminate.
To avoid the double blow of damage to the vehicle and wallet caused by timing system faults, daily maintenance is crucial. For vehicles with timing belts, it is essential to strictly follow the requirements of the vehicle's maintenance manual and replace them in a 6 - 10 thousand mile cycle. It is recommended to replace the tensioner and idler wheel along with the timing belt during replacement to avoid damaging the new belt due to old components' faults. For vehicles with timing chains, although no regular replacement is required, after 8 thousand miles of driving, regular checks on the wear degree of the chain and the tensioner status should be conducted, and the use of specifications-compliant engine oil should be maintained to ensure adequate lubrication. Once abnormal signals such as engine noise, power loss, or other abnormalities are detected, it is necessary to immediately visit a professional repair facility for inspection. Do not have psychology， as small faults may escalate into major problems.
