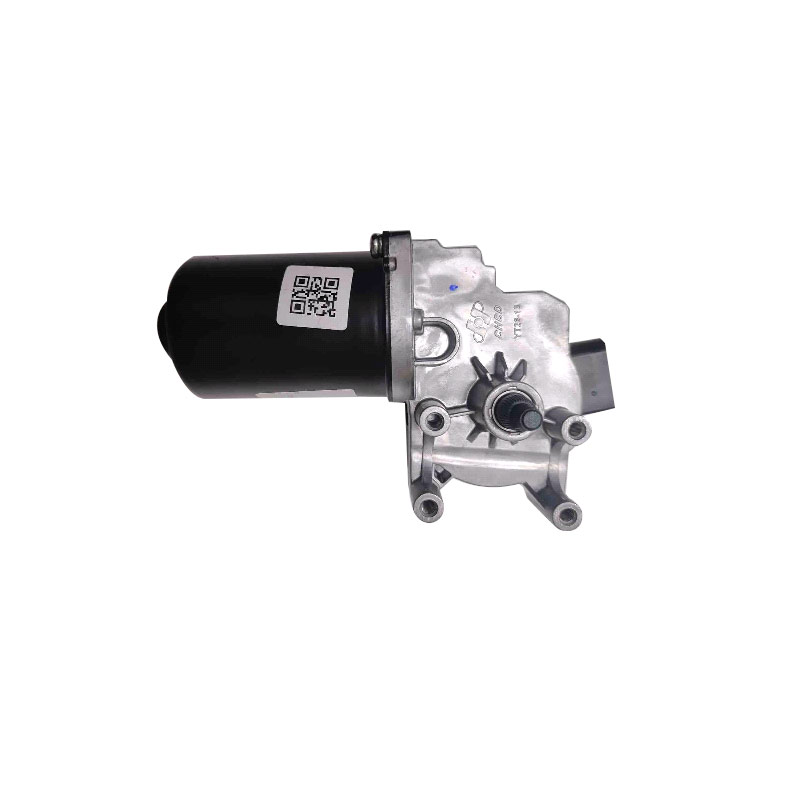

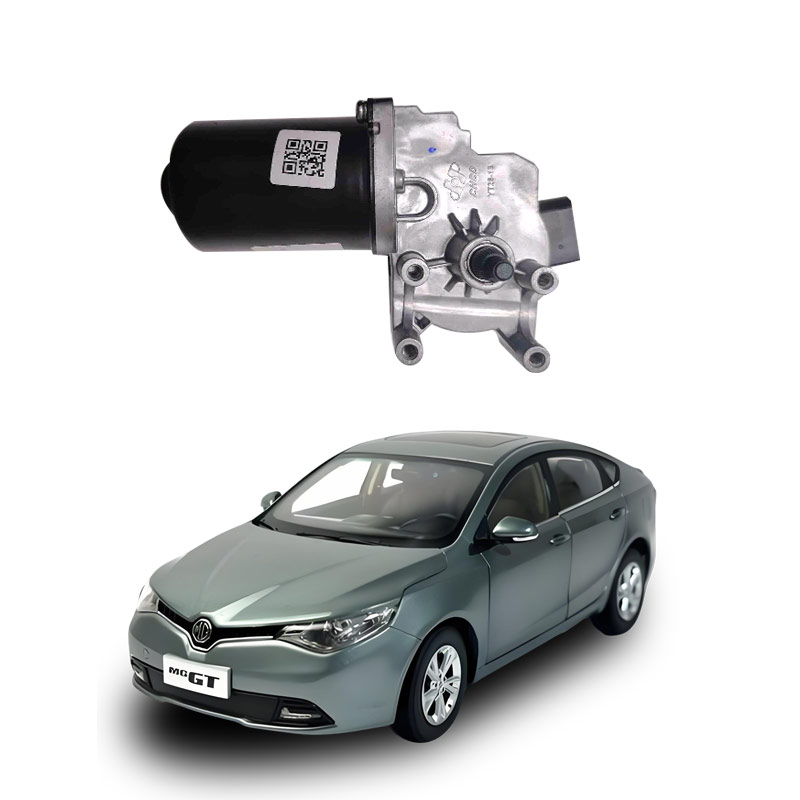

The front windshield wiper motor: The core force safeguarding driving visibility
Among the numerous components of a car, the front windshield wiper motor may seem insignificant, but it is one of the key components ensuring driving safety. It is like the "eye guardian" of the car, clearing the vision obstacles for the driver in harsh weather conditions such as rain, snow, and sandstorms, ensuring driving safety.
The core function of the front windshield wiper motor
The front windshield wiper motor is the power source of the wiper system. Its main function is to convert electrical energy into mechanical energy, through the linkage mechanism, converting the rotational motion of the motor into the reciprocating motion of the wiper arm, thereby achieving the swinging of the wiper blade to remove obstacles such as rain, snow, and sand from the front windshield, providing a clear view for the driver.
Specifically, the functions of the front windshield wiper motor are reflected in the following aspects:
Adapting to different weather conditions: By adjusting the motor's speed, the wiper can achieve three working modes: high speed, low speed, and intermittent. It can deal with different intensities of rainfall, snowfall, or sandstorm conditions. In heavy rain, the high-speed mode can quickly clear the large amount of rainwater on the windshield; in light rain or foggy weather, the intermittent mode can avoid the frequent swinging of the wiper affecting the driver's view.
Enhancing driving safety: Clear vision is the foundation of driving safety. The front windshield wiper motor can promptly clear the obstacles on the windshield, ensuring that the driver can clearly see the road conditions, traffic signs, and other vehicles, thereby making accurate driving judgments and avoiding traffic accidents.
Protecting the windshield: The wiper blade, driven by the motor, can evenly wipe the windshield, avoiding scratches on the glass caused by rain, sand, and other impurities, and prolonging the service life of the windshield.
Common faults and diagnosis methods of the front windshield wiper motor
Although the structure of the front windshield wiper motor is relatively simple, various faults may still occur during long-term use. Here are some common faults and diagnosis methods:
The wiper does not work at all: If the wiper does not move at all when the wiper switch is turned on, it may be caused by the following reasons:
Fuse blown: The fuse is an important component for protecting the circuit. If the fuse in the wiper motor circuit blows, the motor will not receive power and the wiper will not work. At this time, check if the corresponding fuse in the fuse box has blown and replace it with a fuse of the same specification.
Motor damage: If the fuse is intact, it may be a fault in the wiper motor itself. You can turn the ignition switch on and then open the front hood to try starting the wiper. If you do not hear the motor turning or smell burnt odor, it is likely that the motor is damaged and a new motor needs to be replaced.
Line fault: A broken, short-circuited, or improperly connected line in the wiper motor can also cause the motor to fail to work properly. In this case, use a multimeter to test the lines and find the fault point for repair.
Abnormal wiper operation: The wiper can work, but there are speed abnormalities, uneven swinging, or abnormal sounds, which may be caused by the following reasons:
Carbon brush wear: The carbon brush inside the wiper motor is an important component for transmitting current. After long-term use, it will gradually wear out. When the carbon brush wears to a certain extent, it will cause unstable current in the motor, thereby causing abnormal wiper speed or uneven swinging. At this time, replace the new carbon brush.
Linkage mechanism failure: The wiper motor converts rotational motion into reciprocating motion of the wiper arm through the linkage mechanism. If the linkage mechanism is loose, deformed, or damaged, it will cause uneven swinging of the wiper or abnormal sounds. Check each component of the linkage mechanism and tighten or replace the damaged parts in time.
Poor lubrication of motor bearings: Lack of lubricating oil in the motor bearings will cause dry wear of the bearings, increasing the resistance of the motor's rotation, and thereby causing abnormal wiper operation. At this point, it is necessary to add an appropriate amount of lubricating oil to the motor bearings to ensure the normal operation of the motor.
The wiper cannot be reset: After turning off the wiper switch, the wiper blade cannot return to the bottom of the windshield. This may be due to a malfunction in the automatic reset device. The automatic reset device is an important component of the wiper motor, which ensures that the wiper blade automatically returns to the initial position after the switch is turned off. If the contacts, springs, or gears in the automatic reset device are damaged, it will cause the wiper to fail to reset. It is necessary to check all the components of the automatic reset device and repair or replace the damaged parts in time.
Daily maintenance and care of the front wiper motor
To extend the service life of the front wiper motor and reduce the occurrence of faults, drivers should pay attention to the following points during daily use:
Avoid dry scraping: Do not turn on the wiper when the windshield is dry. This will prevent the wiper blade from directly rubbing against the glass and damaging the wiper blade and the motor.
Regularly check the wiper blade: The wiper blade is a wear-prone part. After long-term use, it will age and wear out. Regularly check the condition of the wiper blade. If cracks, wear, or reduced scraping effect are found on the wiper blade, it should be replaced in time.
Keep the motor clean: Regularly clean the dust, oil, and other impurities on the surface of the wiper motor to prevent impurities from entering the motor and affecting its normal operation.
Pay attention to the operating environment: In high-temperature, high-humidity, or corrosive environments, it is necessary to strengthen the inspection and maintenance of the wiper motor to avoid damage to the motor due to environmental factors.
In conclusion, the front wiper motor is an important guarantee for safe driving of the vehicle. Drivers should fully recognize its importance, understand its function and common faults, and do daily maintenance and care work to ensure that the wiper motor is always in good working condition, protecting the safety of driving.
