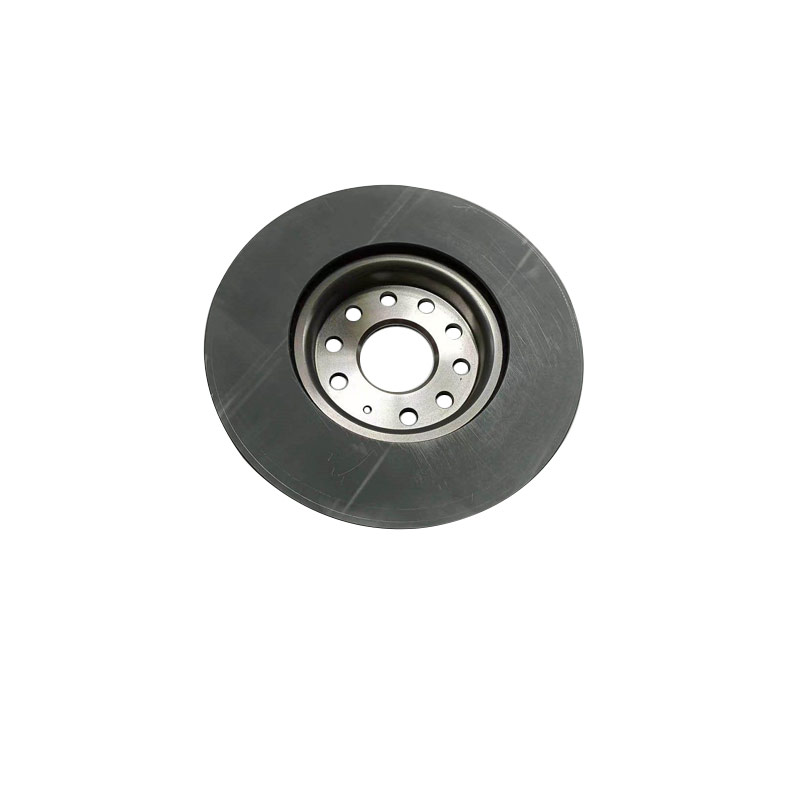

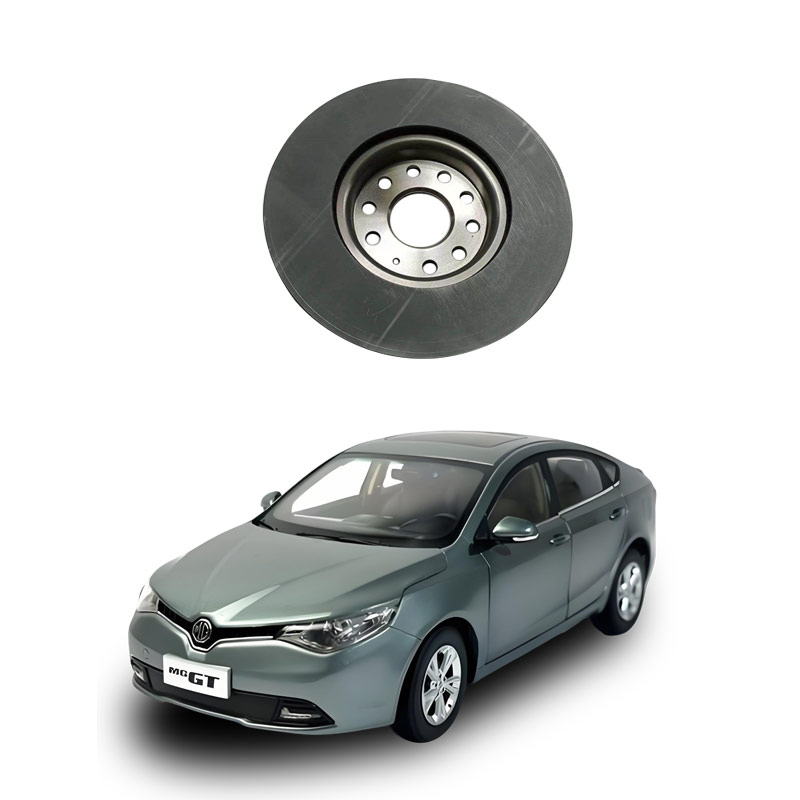

The front brake disc: The key role in ensuring driving safety
In the braking system of a car, the front brake disc is undoubtedly one of the most crucial components. It functions as the "feet brake" of the vehicle, always ready to bring the speeding vehicle to a stop, providing a solid guarantee for driving safety.
The core function of the front brake disc
The main braking efficiency is responsible for 70%-80% of the braking force during vehicle operation. It is the key force for deceleration or stopping. When the driver steps on the brake pedal, the hydraulic system quickly drives the brake caliper to clamp the front brake disc. Through the intense friction between the two, the vehicle's kinetic energy is converted into heat energy, allowing the vehicle to quickly decelerate and come to a stop. This process is extremely fast, usually at a level of 0.1 seconds, providing precise support for electronic stability systems such as ABS and ESP, ensuring safety during emergency braking.
Ventilation and stability guarantee Frequent braking causes the temperature of the front brake disc to rise sharply. If the heat cannot be dissipated in time, it is likely to lead to a decrease in braking force, seriously threatening driving safety. Therefore, the front brake disc generally adopts a ventilated disc design. This structure can effectively discharge heat, with a cooling efficiency of over 30% higher than that of a solid disc, allowing the working temperature to remain within a reasonable range of 200 - 300°C. In scenarios of frequent braking such as long downhill or urban congestion, the ventilated disc is more advantageous, continuously and stably providing braking force.
Environmental adaptability optimization In rainy or humid conditions, the surface of the front brake disc is prone to form a water film, affecting the braking effect. Some front brake discs will be designed with slots or holes, which can quickly drain the water, with a drainage efficiency of over 90%, while reducing dust accumulation and extending the lifespan of the brake pads. Although brake discs with slots or lines have a relatively higher daily maintenance cost, they can significantly improve the braking reliability in complex environments.
Collaboration with electronic systems Working together with ABS, TCS, etc., the front brake disc does not operate independently. It needs to coordinate with these electronic systems to achieve more advanced braking functions. For example, the ABS system monitors the wheel speed through sensors. When it detects that the wheels are about to lock, it quickly adjusts the braking pressure to create high-frequency intermittent braking actions between the front brake disc and the brake pads, up to 15 times per second, ensuring the vehicle's stability during emergency braking.
Common faults and solutions of the front brake disc
Brake noise This is one of the most easily detectable fault signals for car owners. If there is a sharp metallic friction sound when braking, it is likely that the brake pads have reached the limit of wear, with the metal warning strips on the surface directly contacting the front brake disc; if the sound is low and dull, it may be that the piston of the brake caliper is due to dust accumulation or aging of the rubber seal ring causing poor return, causing the brake pads to remain in close contact with the front brake disc for a long time. In such cases, it is necessary to promptly check the thickness of the brake pads, and if necessary, replace the brake pads, while cleaning or replacing the brake caliper seal ring.
Excessive wear of the brake disc The replacement cycle of the front brake disc is usually 5 - 8 ten thousand kilometers, but it depends on the usage situation. If deep grooves appear on the surface of the front brake disc, and the total thickness of the grooves on both sides exceeds 3 millimeters, or if there are obvious cracks or uneven wear on the disc surface, it is necessary to replace the brake disc promptly. In addition, if the replacement frequency of the brake pads is high, one should also pay attention to the wear condition of the front brake disc to avoid the braking effect being affected due to excessive wear of the brake disc.
Brake disc deformation Long-term use or improper operation may cause the front brake disc to deform, manifested as shaking of the brake pedal, steering wheel deflection, etc. The causes of brake disc deformation may include incorrect installation, material issues, overloading, or high-speed driving. Once the brake disc is deformed, it should be checked and replaced at a professional repair shop as soon as possible to restore the stability of braking.
The situation where the brake disc cannot rotate is quite serious and may be caused by insufficient lubrication, excessive wear of the brake pads, damage to the surface of the brake disc, leakage of the brake fluid, or malfunction of the braking system. When such a problem occurs, you should immediately stop driving and check the lubricant of the braking system, the brake pads, the surface of the brake disc, and the condition of the brake fluid. If necessary, seek help from professional repair personnel.
Daily maintenance tips for the front brake disc
To ensure the performance and lifespan of the front brake disc, car owners should conduct regular inspections and maintenance. It is recommended to check the thickness and surface condition of the front brake disc during each maintenance. If any abnormalities are found, they should be dealt with promptly. At the same time, develop good driving habits and try to avoid sudden braking and sudden stops to reduce the wear on the brake disc. Additionally, do not wash the vehicle immediately after braking; wait for the temperature of the brake disc to cool down before cleaning to prevent deformation or cracks of the brake disc due to thermal expansion and contraction.
In summary, the front brake disc is a key component of the vehicle's braking system, and its performance directly affects driving safety. Understanding the function, common faults, and maintenance methods of the front brake disc can help car owners identify problems in time and take effective measures to ensure the safety of themselves and others during travel.
