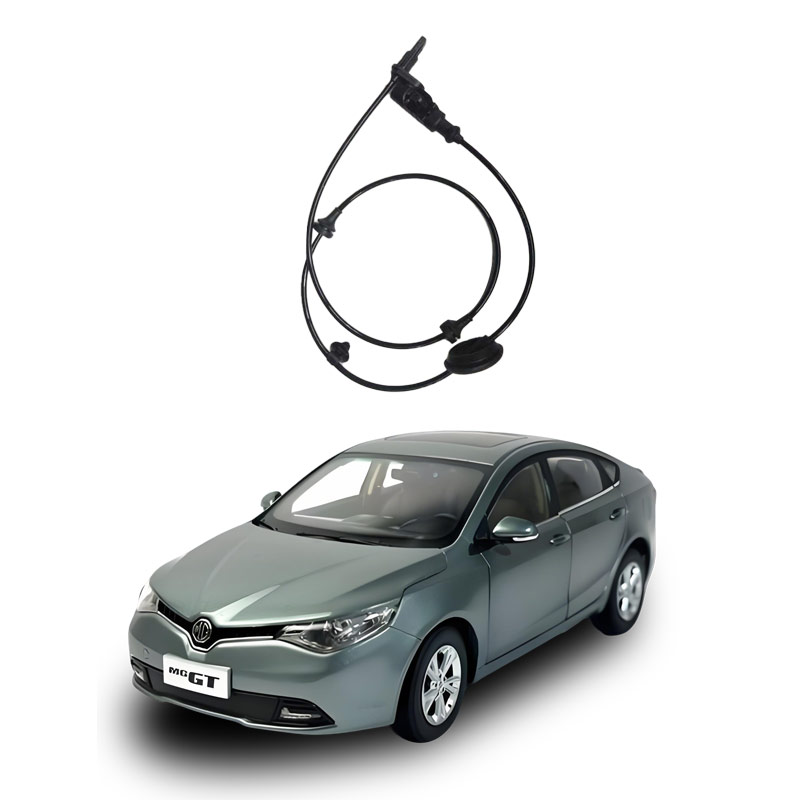

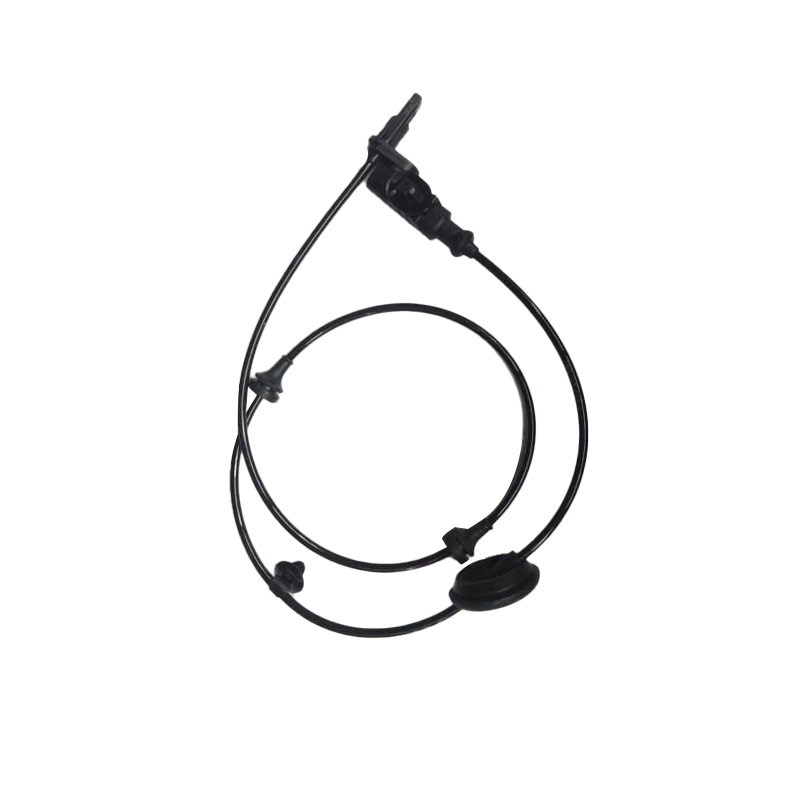

Front ABS Sensor: The Key Guardian of Brake Safety in Cars
In the braking safety system of a car, the front ABS sensor is like a sensitive "nerve ending", silently safeguarding driving safety. It may seem insignificant, but it plays an irreplaceable role in critical moments such as emergency braking, and it is also prone to failure due to various factors, affecting the braking performance of the vehicle.
The core function of the front ABS sensor
The front ABS sensor is an important component of the anti-lock braking system (ABS) of a car, mainly installed on the front wheels. Its core function revolves around brake safety.
Firstly, it is a real-time wheel speed monitor. Through thousands of revolutions per second of speed monitoring, the front ABS sensor can accurately capture the rotation state of the front wheels and convert the speed signal into an electrical signal to be transmitted to the vehicle's electronic control unit (ECU). During emergency braking, the ECU uses these signals to determine whether the wheels are about to lock, and precisely control the braking force to avoid the wheels losing grip due to locking, preventing the vehicle from skidding or losing control. For example, on slippery roads, emergency braking can easily cause the front wheels to lock, and the front ABS sensor can promptly sense and provide information, allowing the ABS system to quickly adjust the braking force, keeping the vehicle on a stable driving trajectory.
Secondly, it is the data provider for multiple safety systems. Besides serving the ABS system, the wheel speed data provided by the front ABS sensor is also crucial for the normal operation of systems such as ESP (Electronic Stability Program) and TCS (Traction Control System). The ESP system compares the speed difference between the front and rear wheels to determine if the vehicle is experiencing a skidding trend and intervenes promptly; the TCS system determines whether the driving wheels are slipping based on the wheel speed data, thereby adjusting the power output. In essence, the front ABS sensor provides the most fundamental and critical vehicle driving status information for these systems, jointly building a safety protection network for the vehicle.
In some models, the front ABS sensor also undertakes the task of speed detection. It converts the monitored wheel speed signal into vehicle speed information and displays it on the vehicle's dashboard, allowing the driver to know the vehicle's speed in real time. In some models with indirect tire pressure monitoring, the front ABS sensor indirectly determines whether the tire pressure is normal by monitoring the subtle differences in wheel speed, adding another layer of safety for driving.
Common faults and causes of the front ABS sensor
Although the front ABS sensor is of great significance, it is also prone to failure due to various factors. The common faults and causes include the following.
Firstly, dirt invasion. The metal dust from the worn brake pads is the number one "killer" for the front ABS sensor. During vehicle operation, the metal dust from the worn brake pads will adhere to the sensor head. Especially in rainy weather or after passing through muddy sections, this dust will mix with mud and water, forming magnetic particles that encapsulate the sensor head, affecting its signal transmission. For example, a Mercedes-Benz S-Class in Foshan after the rainy season experienced intermittent ABS alarms due to the front ABS sensor head being encapsulated by magnetic particles, and the problem was resolved after cleaning.
Secondly, wiring issues. The wiring of the front ABS sensor is exposed in the complex vehicle operation environment and is prone to contact problems due to vibration from the suspension and oxidation. When testing a Toyota Corolla, it was found that the wiring of the right front wheel sensor was due to suspension vibration, resulting in a contact resistance of 20Ω, far above the normal value ≤ 0.5Ω, which would cause unstable signal transmission and even interruption, triggering ABS system failures.
Thirdly, component aging. The vehicle's operating environment is complex, and the high temperature in the engine compartment can cause damage to the permanent magnet of the front ABS sensor. The durability test in Hainan showed that when continuously operating in an 80℃ environment for 2000 hours, the magnetic flux of the permanent magnet in the sensor decreased by more than 35%, which would lead to a decline in the signal detection accuracy of the sensor and make it unable to accurately reflect the wheel speed information.
Fourth, the gear ring damage. If the gear ring, which works in conjunction with the previous ABS sensor, has missing teeth, rust, or stones stuck in it, it will cause the sensor to receive intermittent signals. Wuling Hongguang once had a problem where the front gear ring had stones stuck in it, causing the ECU to receive a 0.5-second blank speed signal, which directly triggered the ABS protection and affected the normal driving of the vehicle.
Fifth, abnormal power supply. Voltage fluctuations are more dangerous than power shortage. If the system voltage peak is too high due to faults in the vehicle's generator regulator or other reasons, it may burn out the front ABS sensor. The BMW X5 once had a problem where the generator regulator failed, causing the system voltage peak to reach 16V, and burned out two front ABS sensors.
The hazards and solutions of the front ABS sensor failure
When the ABS fault light on the vehicle's dashboard lights up, or if there is a decrease in braking performance, abnormal vibration of the brake pedal, etc., it is necessary to promptly check the front ABS sensor. First, a basic cleaning can be performed, using an air gun to blow the sensor at an appropriate angle to avoid impurities from entering the bearing, and using a special cleaning agent to dissolve magnetic oil stains; second, check the connection of the lines, using a multimeter to measure the line resistance to ensure good contact; if it is due to component aging or damage, it is necessary to replace the sensor in time; for gear ring damage and abnormal power supply problems, targeted repairs and treatments should also be carried out.
In conclusion, the front ABS sensor is the key guardian of braking safety in automobiles. Understanding its function, fault causes, and response methods can help us better maintain the braking system of the vehicle and ensure driving safety.
