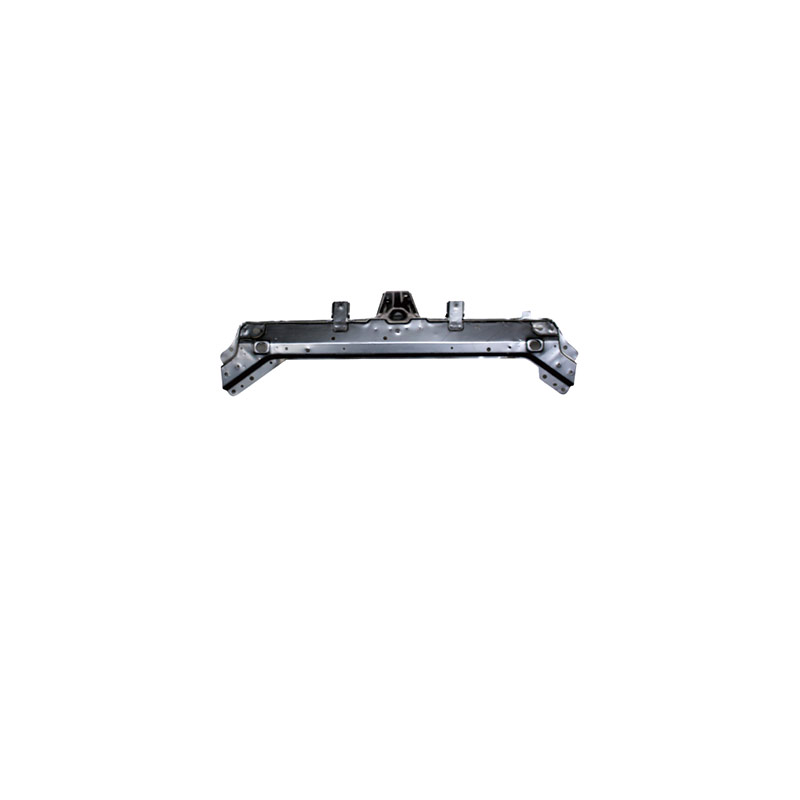

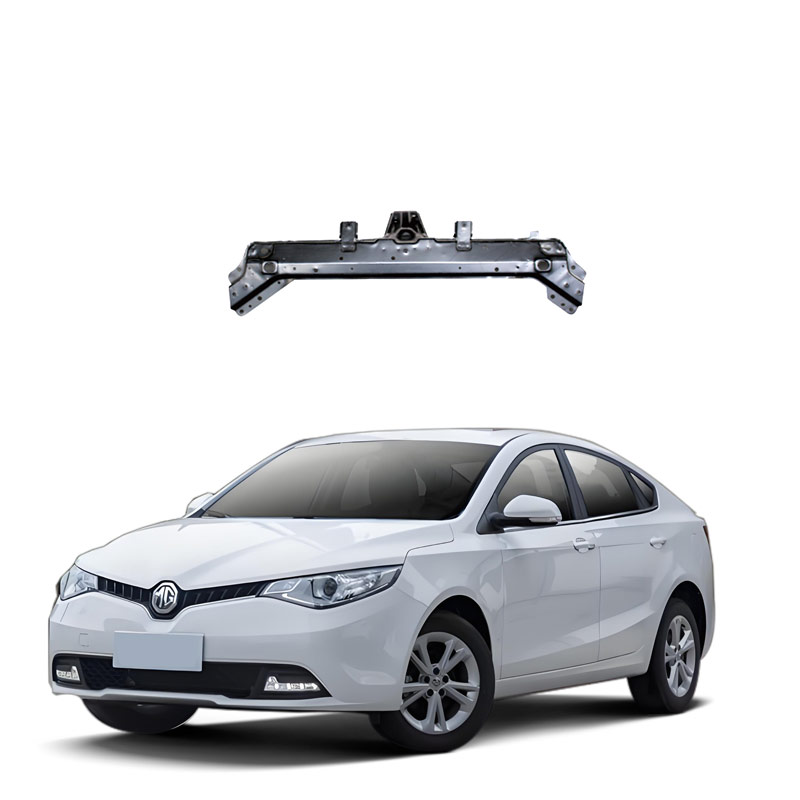

What is the crossbeam on the water tank
The upper crossbeam of the radiator is a frame structure in the car body structure used to support the radiator and condenser, mainly undertaking the functions of fixation, support and protection.
Structural features
It is usually installed above the engine compartment, spanning the left and right longitudinal beams, and the components are connected by riveting technology. Its structure consists of components such as the front column, reinforcing plate, and connecting bracket, forming a closed cavity to enhance the supporting stiffness.
Function and role
Youdaoplaceholder0 Fixation and protection : Through the layout of the front bumper mounting points and the engine hood buffer block support points, the radiator and condenser are securely installed.
Youdaoplaceholder0 Structural reinforcement : Simplify the installation process, reduce the number of components, and improve the utilization rate of the front cabin space.
Youdaoplaceholder0 Precision control : Due to the high precision requirements for the installation of appearance parts, it is necessary to strictly ensure their positioning accuracy to avoid the problem of body clearance surface difference.
Q&A
It is necessary to regularly check the sealing performance of the cooling system to prevent water leakage caused by the aging or damage of the radiator hoses, which may affect the heat dissipation performance.
The main functions of the crossbeam on the water tank include enhancing installation stability, simplifying structural design and strengthening support strength.
Enhance installation stability
The crossbeam of the water tank works in coordination with components such as the reinforcing plate on the wheel cover to ensure the stability of the water tank frame and reduce the risks of vibration and displacement.
Simplify the structural design
The introduction of the crossbeam can omit some connecting components (such as support ribs and connection points), making the structure more compact and achieving a lightweight design at the same time.
Enhance the support strength
The addition of crossbeams can disperse the force, enhance the overall strength of the water tank frame, and ensure the durability and safety of the water tank.
The malfunction of the crossbeam on the water tank may be caused by various reasons. The following are common causes and solutions:
Cause of malfunction
Youdaoplaceholder0 structural design or material issues
The crossbeam may be unable to withstand vibration or pressure due to a small pipe diameter, insufficient side plate thickness or unreasonable structural design, and may crack or break after long-term use.
Youdaoplaceholder0 Vibration or overloading
Vibration generated by vehicle operation or overloading of equipment may cause fatigue damage to the crossbeam. Such problems are prone to occur in scenarios like vibrating screens.
Youdaoplaceholder0 external physical damage
If the crossbeam of the water tank lacks a protective structure (such as the protective beam below), it is prone to damage due to bumps when used outdoors.
Youdaoplaceholder0 Improper installation or lack of maintenance
Insufficient matching between the crossbeam and the longitudinal rail, loose fixing screws or inadequate lubrication can lead to uneven force distribution and accelerate the aging of components.
Solution
Youdaoplaceholder0 Structural reinforcement
If it is a vibrating device, reinforcing ribs or a belt frame can be added to enhance the load-bearing capacity. When the vehicle crossbeam is unbalanced, the frame foot screws need to be adjusted synchronously and the level calibrated.
Youdaoplaceholder0 replace parts
If the crossbeam has broken or been severely deformed, a reinforced crossbeam that meets the standards should be replaced, and it should be ensured that the new component matches the water tank cover and other accessories.
Youdaoplaceholder0 regularly maintain
Check the meshing condition between the crossbeam and the longitudinal rail, remove foreign objects and lubricate regularly. Avoid overloading the equipment and regularly inspect loose parts.
Youdaoplaceholder0 environmental protection
Water tanks used outdoors need to be treated for rust prevention. When installing, reserve maintenance space to facilitate subsequent maintenance.
The crossbeam on the radiator is also known as the gantry frame or radiator frame . It is a core supporting structure at the front of the vehicle used to fix components such as the radiator, radiator and headlights.
Aliases and Functions
Youdaoplaceholder0 Official name : Front frame or radiator frame.
Youdaoplaceholder0 is commonly known as : due to its shape resembling a gantry structure, it is widely called a gantry frame. In some contexts, it is also called a water tank rack or a front wall rack.
Youdaoplaceholder0 Core function :
Provide installation support for water tanks, radiators, headlights, etc.
Absorb energy during a collision, protect the front components and maintain the stability of the vehicle body structure.
Connect the left and right frames to ensure the integrity of the front.
Location and material
Youdaoplaceholder0 location : It is located in the crossbeam area below the front of the vehicle, above the radiator.
Youdaoplaceholder0 Material : mostly plastic (lightweight, easy to replace) or metal (high strength). The design is divided into detachable type (bolted type) and one-piece type (welded type, cut type belongs to accident vehicle).
