Car Starter: The Core of Vehicle Start-Up and Fault Diagnosis
Among the numerous components of modern vehicles, the starter seems insignificant, but it is the key to enabling the vehicle to start smoothly. It is like the "heart pacemaker" of the car, converting the electric energy from the battery into mechanical energy at each ignition moment, providing the initial power for the engine's operation.
The Core Function of the Starter
The engine cannot operate on its own when it is stationary; it must be driven by an external force to rotate the crankshaft, allowing the combustible mixture in the cylinders to complete the intake, compression, power generation, and exhaust cycles, thus achieving autonomous operation. The starter is the component that undertakes this crucial task.

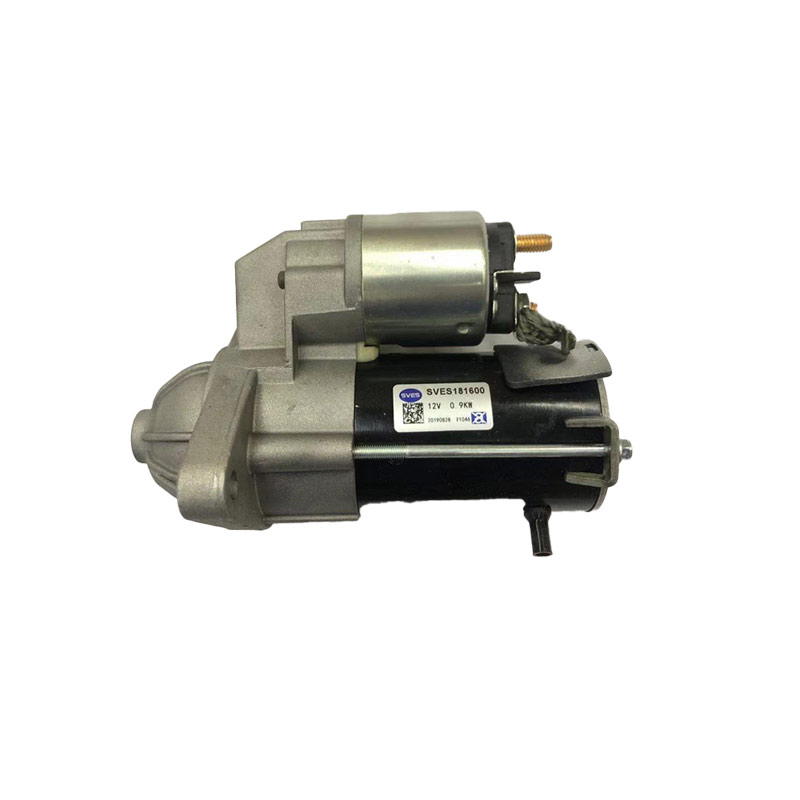

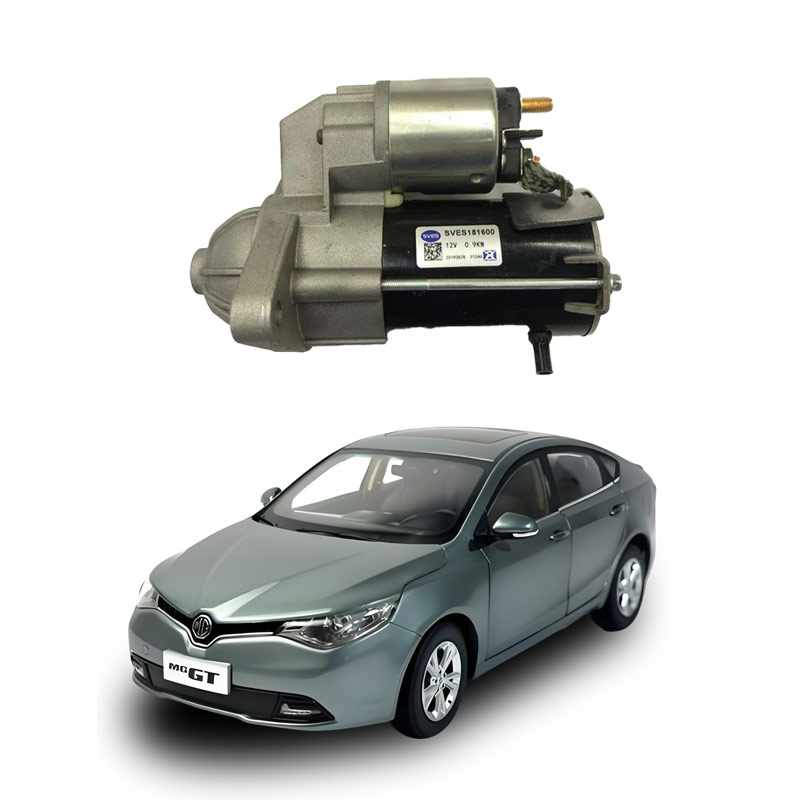

The starter mainly consists of a DC series-excited motor, a transmission mechanism, and an electromagnetic control switch. When the driver turns the ignition switch to the start position, the electromagnetic switch will quickly be energized to generate a magnetic field, attracting the iron core to move. This action not only pushes the one-way clutch in the transmission mechanism to precisely mesh with the flywheel teeth of the engine; but also connects the circuit of the DC motor, allowing the large current from the battery to flow into the motor.
The DC motor generates a powerful electromagnetic torque under the action of the current, transmitting the power through the transmission mechanism to the flywheel, driving the engine crankshaft to rotate at high speed. When the engine reaches the start-up speed, the rotational speed of the flywheel will exceed that of the starter's driving gear, at this point the one-way clutch will automatically slip, cutting off the power transmission and avoiding damage to the engine from the reverse dragging of the starter. Then, the electromagnetic switch is de-energized, the driving gear and the flywheel teeth are separated, and the starter completes this start-up task.
It can be said that the starter is an important bridge connecting electrical energy and mechanical energy, and its efficient operation is the prerequisite guarantee for the normal start-up of the vehicle.
Common Faults and Diagnosis Methods
During the long and frequent operation of the starter, various faults are inevitable. Understanding the manifestations and diagnosis methods of these common faults can help car owners detect problems in time and avoid vehicle start-up failure due to faults.
The starter does not rotate
After turning on the ignition switch, the starter shows no response, and the vehicle cannot start. This situation may be caused by various reasons. First, consider whether the battery is fully charged; you can initially determine this by turning on the headlights and pressing the horn. If the headlights are dim and the horn sounds weak, it is likely that the battery is depleted. Secondly, circuit short-circuiting, damage to the electromagnetic switch, or internal short-circuit of the starter can also cause this fault. At this time, you can measure the voltage, check if the connection terminals are loose or oxidized, etc. If short-circuiting the power supply and the start-up terminals makes the starter rotate, it indicates that there is a fault in the control circuit, which may be due to a damaged ignition switch or relay.
The starter rotates weakly
The starter rotates slowly, unable to drive the engine to reach the start-up speed, making the engine difficult to start. In winter, when the battery's output capacity decreases, it is prone to depletion, which is a common cause of the starter's weak rotation. In addition, excessive wear of the brush, poor circuit contact, or short circuits in the winding can also reduce the starter's electromagnetic torque, causing the starter to rotate weakly. Car owners can check if the battery connection terminals are loose and oxidized, if the connection point is hot, and clean and tighten it in time. If necessary, disassemble the starter and check the wear of the transmission mechanism, replace the damaged one-way clutch or shift fork.
The starter idles
The starter rotates at high speed, but the engine crankshaft shows no response. This is usually due to the slipping of the one-way clutch, unable to effectively transmit power to the flywheel; or the shift fork is disengaged, causing the driving gear to fail to mesh smoothly with the flywheel teeth. In such cases, try restarting, turning the crankshaft, and then performing the start-up operation. If it returns to normal, it may be that a few teeth of the flywheel teeth are damaged. If the fault persists, disassemble the starter, check the wear of the transmission mechanism, and replace the damaged one-way clutch or shift fork.
The starter makes abnormal noise When starting the vehicle, the starter emits abnormal sounds such as grinding and friction. The grinding sound is mostly caused by the failure of the driving gear and the flywheel gear to fully mesh before starting, resulting in gear impact; the friction sound may be due to the damage of the armature shaft bearing, causing increased friction between components during operation. When abnormal noises occur, it is necessary to stop the vehicle for inspection in time to avoid the expansion of the fault and damage to the starter or the flywheel gear ring.
Daily maintenance of the starter
To extend the service life of the starter and reduce the occurrence of faults, car owners need to pay attention to the following points during daily driving. First, each time starting the vehicle, the duration of connecting the starter should not exceed 5 seconds. After repeated starts, a pause of more than 2 minutes is required. After multiple consecutive failed starts, faults should be checked to avoid overheating and damage to the starter or the flywheel gear ring. Secondly, when starting a cold engine in winter, the engine can be preheated to reduce the starting load of the starter. In addition, regular checks of the battery's charge and wiring conditions are necessary to ensure that the starter receives sufficient power supply.
As the core component of the vehicle's starting system, the performance of the starter directly affects the reliability of the vehicle. Understanding the role of the starter, common faults, and maintenance methods can help car owners better care for their vehicles and ensure smooth and trouble-free starts every time.
