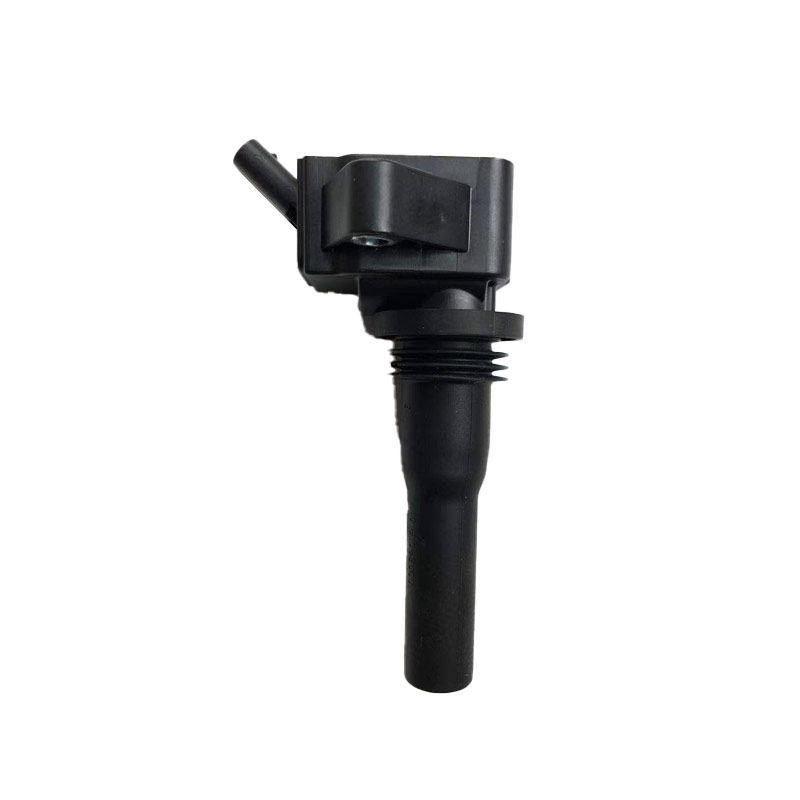

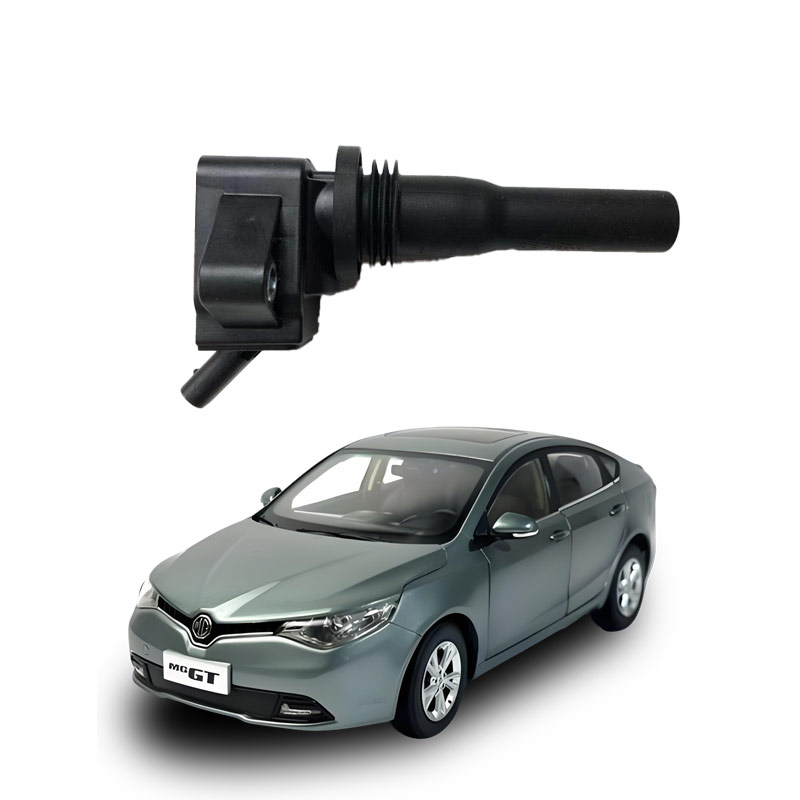

Ignition coil: The core hub of engine power
The ignition coil is the core component of the car's ignition system. Essentially, it is a special pulse transformer. Its main function is to convert the 12V low-voltage electricity provided by the battery into 15,000-30,000V high-voltage electricity, providing sufficient energy for the spark plug to generate an electric spark, thereby igniting the mixture in the engine cylinder and driving the engine to operate.
It works based on the principle of electromagnetic induction: When the primary coil is supplied with low-voltage current, a magnetic field is generated and energy is accumulated. When the ignition controller cuts off the current, the rapidly changing magnetic field induces high-voltage electricity in the secondary winding with far more turns than the primary winding. This high-voltage electricity is then passed through the spark plug to ionize the air and form an electric spark, instantly igniting the mixture. This process needs to be precisely matched with the engine's operating conditions. The ECU will adjust the ignition timing in real time based on parameters such as speed and load to ensure smooth and efficient power output.
In addition to basic voltage conversion, the ignition coil directly affects engine performance: Efficient ignition can improve combustion efficiency, reduce fuel consumption and exhaust emissions; the independent ignition design (one coil per cylinder) can reduce energy loss and enhance power stability at high-speed operating conditions; some coils with ignition detection functions can also provide feedback on ignition status, further optimizing combustion control.
Fault warning: Six typical symptoms to be vigilant about
The ignition coil operates in a harsh environment of high temperature, high pressure, and frequent vibrations, making it prone to insulation aging and coil short circuits. The following symptoms are typically observed:
Severe idling vibration: A single-cylinder ignition coil failure will cause a lack of fuel supply, resulting in unbalanced engine operation. The vehicle body and steering wheel will shake noticeably at idle, and the exhaust pipe will emit a "popping" noise. Touching the exhaust pipe will reveal irregular vibrations.
Weak acceleration with stalling: Insufficient ignition energy causes incomplete combustion of the mixture, resulting in delayed acceleration response. Intermittent stalling occurs in the 2000-3000 rpm range, and the power loss is particularly significant during climbing.
Abnormally high fuel consumption: Unburned mixture is directly discharged, resulting in a 10%-30% increase in fuel consumption. At the same time, the exhaust emits a pungent gasoline smell, and the inner wall of the exhaust pipe may have oil stains.
The fault light illuminates and specific fault codes: When the ECU detects an ignition anomaly, it will illuminate the engine fault light. The diagnostic tool will typically read fault codes such as P0300 (random misfire) or P0301-P0304 (specific cylinder misfire).
Difficulty starting: In cold weather, the insulation performance of the ignition coil deteriorates, unable to provide sufficient high-voltage electricity, resulting in repeated ignition attempts during cold start, and severe cases may cause the engine to shut off immediately upon startup.
Appearance and performance abnormalities: Cracks or burn marks appear on the coil surface, or the connection plug is stained with oil and corroded. This indicates that the insulation layer has been damaged; if the resistance value is beyond the standard range (the secondary resistance is usually 5000-70000Ω), it is necessary to replace it promptly.
Maintenance and replacement: Scientifically extend service life
The replacement cycle of the ignition coil is not a fixed value. Generally, 100,000 kilometers is recommended as a reference point, but it should be adjusted based on actual conditions: For high-performance vehicles, those that are driven in high-temperature and humid environments for a long time, or those that are frequently driven in short distances, the replacement cycle should be shortened; if proper daily maintenance is carried out, some coils can be used for more than 150,000 kilometers.
Daily maintenance should be noted: Avoid prolonged idling of the engine to prevent overheating of the coil; regularly check the spark plug gap (either too large or too small will accelerate coil aging); use high-quality fuel to reduce carbon deposits; avoid leaving the ignition switch on for a long time when the engine is not running. If a fault occurs, it is necessary to replace it promptly. Poor-quality coils are prone to premature damage due to poor insulation materials and unstandardized coil winding processes. It is recommended to choose original factory or reputable brand parts.
