The function of the rear fog lights of a car
The main function of the rear fog lights is to significantly increase the distance at which the vehicle can be recognized by the rear vehicle in low visibility conditions such as fog, snow, rain, or dust. By using their high-brightness red light source, the risk of rear-end collisions is reduced.
Core functions and features:
- Warning function: The rear fog lights are not for illumination but serve as a highly visible warning signal, allowing the driver behind to notice the vehicle more easily.
- Red light source: The red light wavelength (620–750nm) has strong penetration in fog and is more noticeable than ordinary tail lights.
- High luminous intensity: Typically 150–300 candelas, much higher than ordinary tail lights, with a visible distance of over 300 meters.
- Mandatory installation according to the "Technical Conditions for Motor Vehicle Operation Safety": Rear fog lights are mandatory components, while front fog lights are optional.
Usage guidelines (based on the "Implementation Regulations of the Road Traffic Safety Law"):
- Activation conditions: When visibility is below 200 meters, rear fog lights should be activated (some sources suggest activating both sides when visibility is below 100 meters, but rear fog lights must be activated at least).
- Combination of lights: They should be used in conjunction with near headlights, marker lights, and front position lights.
- Prohibition of misuse: Activating them in normal weather or good visibility conditions will interfere with the driver's view and pose safety risks.
Installation and structural key points:
- Position: Located under the rear bumper, at a height of 35cm–1m, mostly single-sided (common in European models) or double-sided.

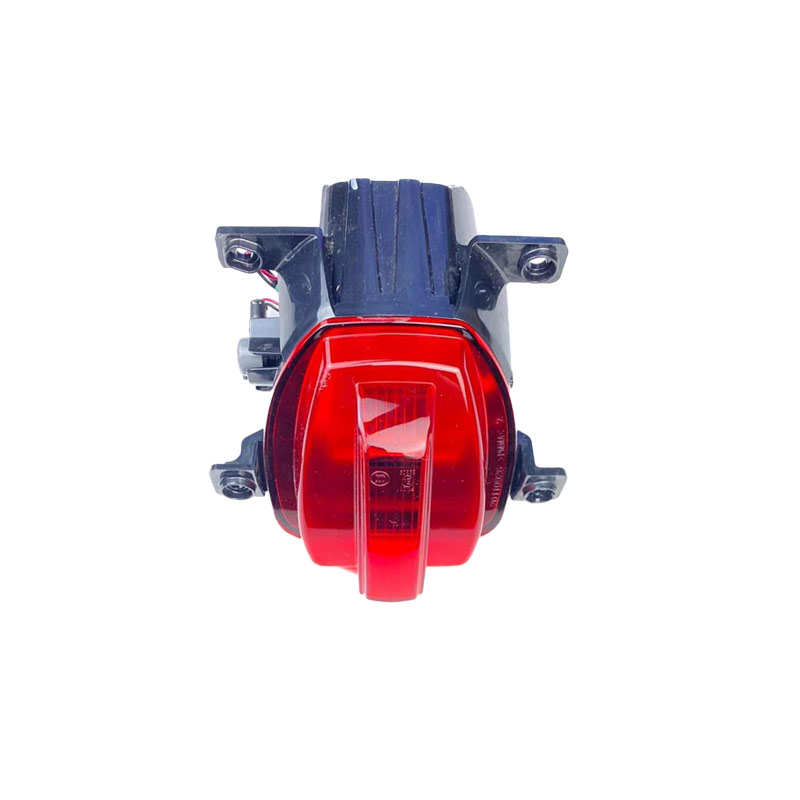

- Structure: Includes a red polycarbonate lens, parabolic reflector, halogen or LED bulb, and independent circuit control.
- Operating logic: Usually, the position lights (small lights) need to be turned on first before activating the rear fog lights, and there should be an independent off function.
Important reminder: The brightness of rear fog lights is much higher than that of ordinary tail lights. Do not use them in non-low visibility conditions to avoid causing glare interference to the driver behind.
Common causes of rear fog light failure:
- Lamp bulb damage, fuse melting, wiring problems, or control module failure.
- Some models originally only have single-sided rear fog lights, which is normal and not a fault.
Common failure reasons:
- Original single-sided design: Some left-hand drive models only have rear fog lights on the left side, while the right side is reverse lights, which is in compliance with regulations and not a fault.
- Lamp bulb damage: The most common reason, filament melting or aging seal with water ingress, requires replacement with a matching model (such as H8/H11).
- Fuse melting: The fog light circuit fuse melting causes power loss, check the fuse box and replace with the same specification fuse.
- Wiring connection abnormalities: Oxidation of the plug, rusted grounding points, or aging and broken wiring, need to clean the contacts or repair the wiring.
- Switch or control module failure: Oxidation of the switch contacts or program errors in the vehicle body control module (BCM), require professional testing.
Diagnosis and troubleshooting steps:
- Confirm vehicle configuration: Check the user manual to determine if it is an original single-sided design.
- Check the lamp bulb: If double-sided design, first check if the lamp bulb is damaged, and can be tested interchangeably.
- Check the fuse: If double-sided does not light up, prioritize checking the fog light fuse.
- Check wiring and plug: Check for oxidation of the waterproof plug, damaged wiring.
- Check the switch and control module: Use a multimeter to test the switch or read the fault code with a professional diagnostic tool.
Solution methods and suggestions:
- Self-replacement: Simple components such as lamp bulbs and fuses can be replaced by oneself, pay attention to matching the original specifications.
- Professional repair: Complex problems such as short circuits, control module failure, etc., are recommended to seek professional help.
- Daily maintenance: Regularly check the sealing of the fog lights, clean the plug after water immersion, and reduce the probability of failure.
