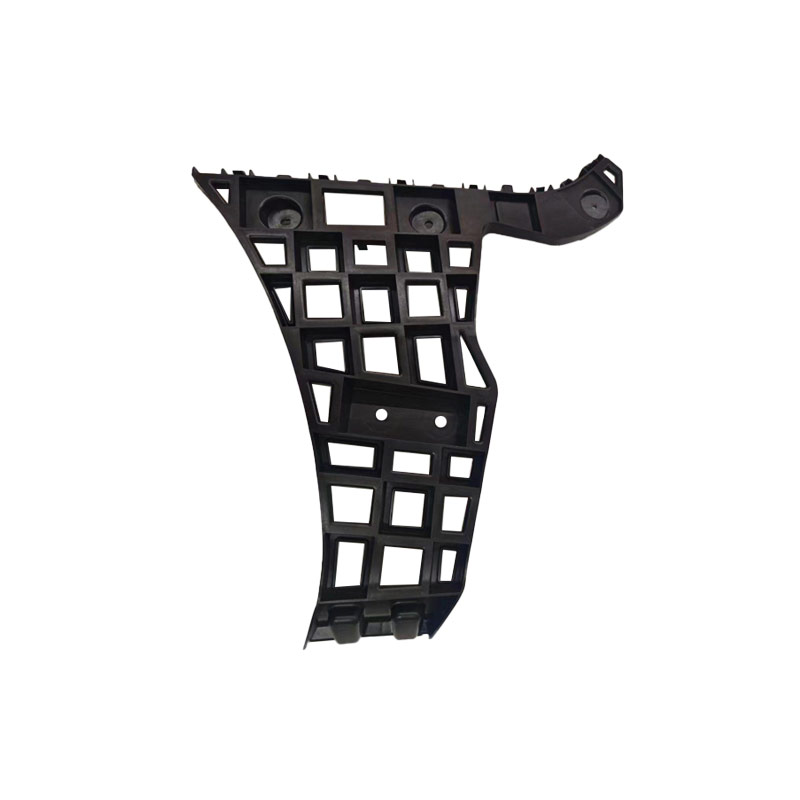

What is the rear bumper bracket of a car?
The rear bumper bracket (also known as the rear bumper support) is a key structural component that connects the rear bumper to the vehicle body. It mainly performs three functions: support, fixation, and buffering.
Core functions
Support and fixation: Firmly installs the rear bumper on the vehicle body to prevent loosening, detachment, or abnormal sounds.
Collision buffering: Absorbs and disperses impact forces during low-speed collisions (such as reversing accidents) to protect key components like the body, tail lights, radar, and fuel tank.
Safety protection: As part of the passive safety system, it reduces secondary injuries to passengers and the vehicle in accidents.
Structural and material characteristics
Common materials:
High-strength steel (such as B340/590DP dual-phase steel)
Engineering plastics (such as glass fiber reinforced polyamide GFPA6)
Composite materials or injection-molded plastic substrates
Typical structures:
Z-shaped welded frame or support tube beam
Anti-retraction structure, compression device, sliding rail positioning mechanism
Dual spring groups (lateral + longitudinal) for multi-dimensional energy absorption
Technical development and innovation (as of 2026)
Assembly optimization: Integrating guiding and anti-retraction structures to increase installation efficiency by over 30%.
Lightweighting: Composites can reduce weight by 40% compared to traditional steel.
Intelligent adaptation: For example, General Motors' 2024 patent improves the energy absorption rate by 25% by optimizing the side wall inclination (15°).
New energy adaptation: Developing high-insulation plastic brackets to meet high-voltage safety requirements.
Practical tips
If the rear bumper shows signs of looseness, abnormal sounds, or uneven gaps, it may be due to aging or damage of the bracket. It is recommended to replace it promptly.
When replacing, choose original factory-compatible or high-precision replica products to ensure stable installation and normal functionality.
Common brands such as Mingken Auto Parts offer a complete set of bracket fastener components for models like Haval H6.
Rear bumper brackets (often referred to as "rear bumper supports") are a key component in the rear safety structure of vehicles. Their main functions are in support, buffering, and safety protection.
Core functions
Support and fixation of the rear bumper: As the connecting structure between the rear bumper and the vehicle body, it ensures the stability of the bumper during driving, preventing loosening, abnormal sounds, or displacement.
Absorption and dispersion of collision energy: During rear-end collisions or scratches, it absorbs and disperses impact forces through deformation or material properties (such as high-strength steel, composite materials), reducing the damage to the vehicle body and key components like the body, tail lights, radar, and fuel tank.
Assisting accident assessment: The damage degree of the rear bumper frame (often integrated with the bracket) is often used to determine the severity of the accident, with severe deformation indicating a significant impact on the vehicle.
Structural and material characteristics
Most are made of high-strength steel, aluminum alloy, or engineering plastics, balancing strength and lightweighting.
Internal often integrates guiding mechanisms, clamping structures, and spring buffering components to improve assembly accuracy and energy absorption effect.
Some new brackets also have functions such as anti-misalignment and gap control, enhancing assembly efficiency and appearance matching. Practical value
Improve the passive safety of vehicles, especially significantly reducing maintenance costs and personnel risks in low-speed collisions.
Maintain the integrity of the vehicle's appearance, preventing the loss or deformation of the bumper due to the failure of the support structure.
In the assessment of used cars, whether the rear bumper support is original and whether it has deformed is one of the reference criteria for determining whether it is a "major accident vehicle".
Note: Some users may confuse "rear bumper support" with "vehicle rear frame" (used to carry luggage, bicycles, etc.), which is an external modification part and has completely different functions.
