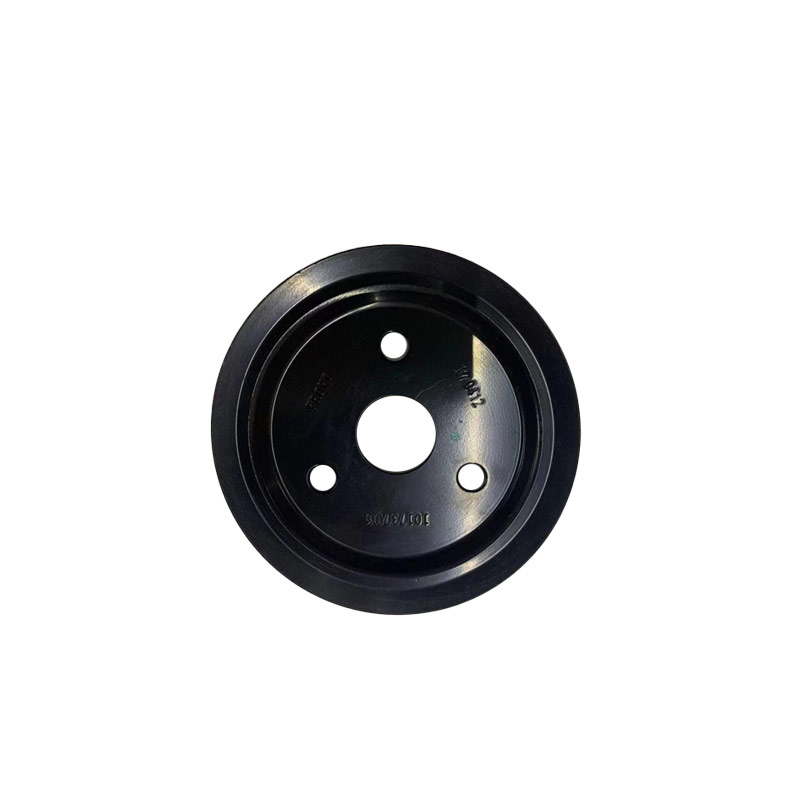

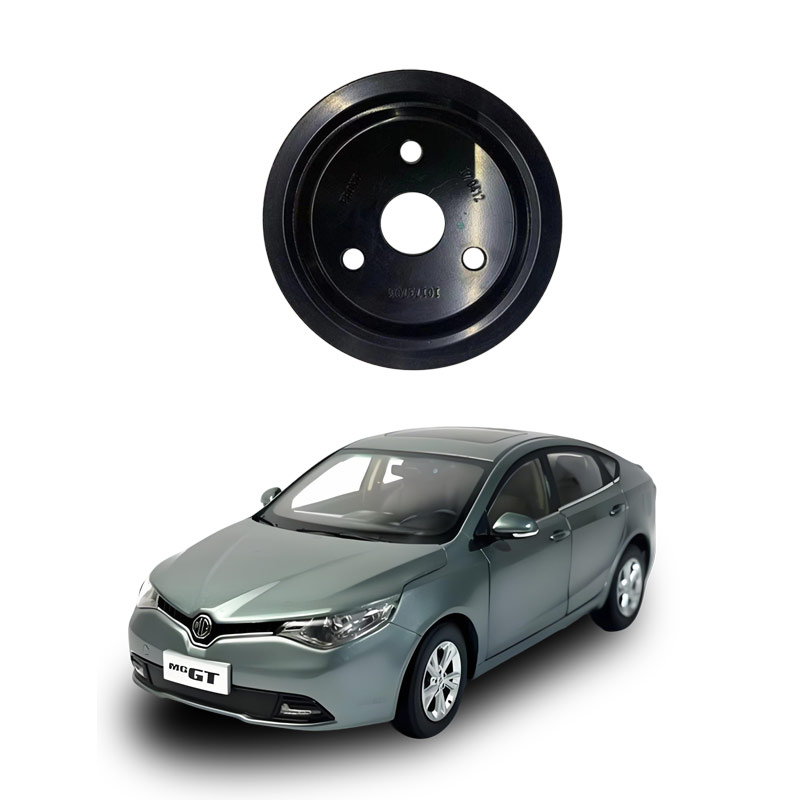

What is the car water pump pulley?
The automotive water pump pulley is a key component in the engine accessory drive system, belonging to the category of disc hub parts. It is a type of pulley and is mainly used to transfer the engine's power to the water pump to drive the coolant to circulate within the engine, maintaining the engine's normal operating temperature.
Core functions
Transmit power: Through the accessory belt (such as the timing belt or V-belt), the water pump pulley receives the rotational power from the crankshaft pulley (the engine's power source), and drives the water pump impeller to rotate.
Core of the cooling system: Ensuring the continuous circulation of the coolant, transporting the heat generated by the engine to the radiator for dissipation, and preventing overheating.
Structure and materials
When the size is large, the casting process is often used, and the material is generally cast iron;
When the size is small, the forging process is often used, and the material is mostly steel.
Role in the system
In the engine belt pulley system, the water pump pulley is one of the five core components. The others include:
Crankshaft pulley (power source)
Generator pulley
Air conditioning compressor pulley
Tensioning pulley (maintaining belt tension)
Maintenance precautions
Regularly check for belt wear or looseness to avoid insufficient water pump rotation affecting heat dissipation;
Pay attention to the coolant level and quality to ensure cooling efficiency.
The water pump pulley is the power source of the engine's "cooling system", and is crucial for protecting engine performance and lifespan.
The specific functions are as follows:
Transmit power: The water pump pulley connects to the crankshaft pulley through the accessory belt (such as the timing belt or V-belt), receives power from the engine crankshaft, and drives the water pump impeller to rotate.
Maintain cooling: By driving the water pump, it enables the coolant to continuously circulate between the engine water passages and the radiator, promptly removing the heat generated by combustion, and preventing overheating.
Ensure system coordination: If the water pump pulley is damaged or the belt falls off, not only will the water pump stop working, but it may also affect other components that rely on the same belt transmission, such as the generator, air conditioning compressor, etc.
In summary, the water pump pulley is the power source of the engine's "cooling system", and is crucial for protecting engine performance and lifespan.
Faults in the automotive water pump pulley can affect the normal operation of the engine cooling system, and may even lead to more serious mechanical problems. According to the latest authoritative public information (as of February 2026), the main manifestations, causes, and impacts are as follows:
Main fault manifestations
Strange noises: Such as buzzing, whistling, clicking, or popping sounds, may be caused by bearing damage, loose impeller, or cavitation.
Leaking coolant: Aging sealing rings cause coolant to leak from the joint of the water pump housing.
Slippage or breakage of the belt: The belt is too loose, too tight, or aged, resulting in ineffective driving of the water pump.
Abnormally high water temperature: The coolant circulation is blocked, the temperature gauge rises rapidly, and even triggers a high-temperature alarm .
Common fault causes
Sealing ring aging: Long-term use or corrosion by coolant, losing sealing performance, causing leakage.
Wear of bearings or insufficient lubrication: Leading to unstable rotation of the water pump, abnormal noise, or even seizure . Inappropriate belt tension: Too tight increases load, too loose causes slippage, both accelerating pump wear .
Improper coolant maintenance: Failure to replace coolant regularly leads to internal corrosion, accumulation of scale, and damage to the impeller and water passages .
Loose or damaged impeller or rotor components: Excessive clearance or damaged blades, affecting pump efficiency and producing impact sounds .
Potential impacts
Power transmission is blocked: The pulley drives the generator, water pump, and other accessories, and damage to it will affect the vehicle's power system .
Increased fuel consumption: The engine needs to increase its rotational speed to compensate for the loss of power, reducing fuel efficiency . Component parts accelerate wear: Generators, water pumps, etc. wear out additionally due to unstable power supply.
Driving safety risks: May cause serious faults such as overheating of the engine and depletion of the battery.
Suggested handling measures:
Stop immediately for inspection: If abnormal noises, water leakage or abnormal water temperature are detected, stop the vehicle immediately to avoid engine damage.
Professional diagnosis: Go to a regular repair shop and focus on checking:
Tension and wear of belts
Whether the water pump bearings are stuck or loose
Whether the coolant is leaking or deteriorated
Replace promptly: If the water pump pulley or bearings are damaged, usually the entire water pump assembly needs to be replaced; it is also recommended to replace the timing belt (if applicable) and coolant simultaneously.
Note: Some models (such as Peugeot 4008) use electromagnetic-controlled water pumps. They do not operate at low temperatures. If there are abnormal noises at this time, it is necessary to confirm whether it is due to an abnormal electromagnetic clutch.
