What is the water supply pipeline for the car's pump?

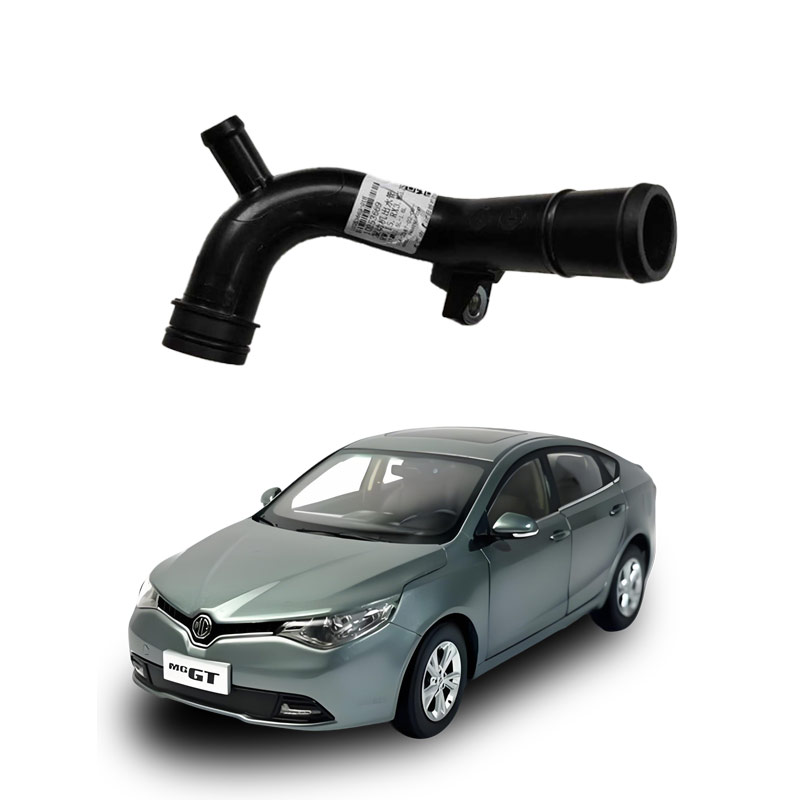

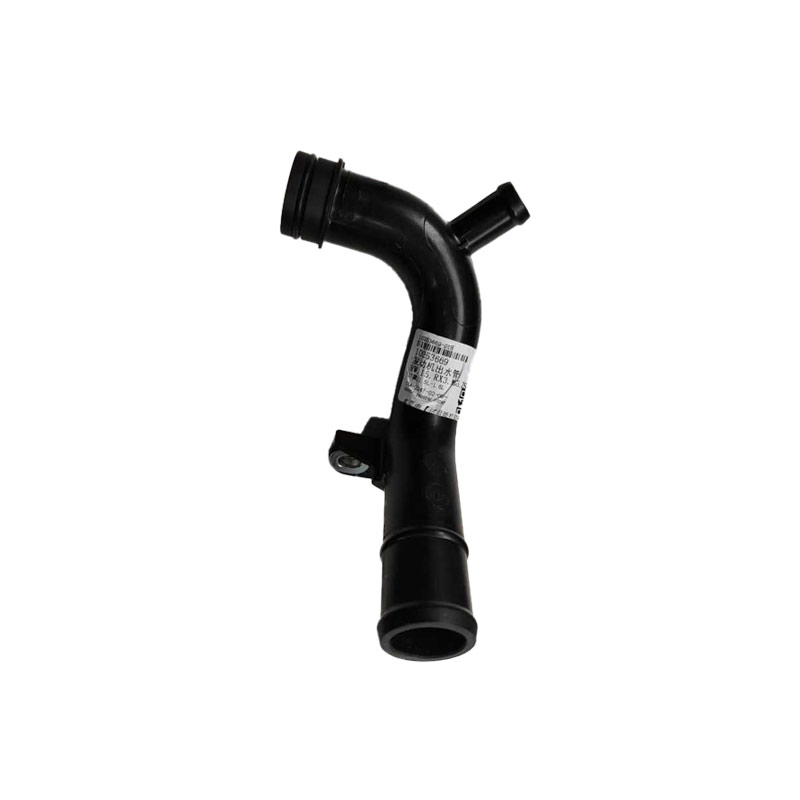

The car pump inlet piping system refers to the pipeline network connecting the pump's intake port with the coolant source (such as the radiator, expansion water tank, or engine water jacket), whose core function is to provide a stable coolant supply to the pump to maintain the normal operation of the engine cooling cycle.
Main functions and features
Transporting coolant: Transporting the low-temperature coolant from the radiator or expansion water tank to the pump's intake port.
Forming a closed loop: Together with the outlet pipe, it constitutes the closed loop of the engine cooling system.
Ensuring pump operation: Ensuring that there is sufficient pressure and flow at the pump's impeller inlet to avoid cavitation or idling.
Common types and structures
Depending on the application scenario, the car pump inlet piping system can be classified into the following types:
Engine cooling system inlet pipe
Connecting the lower water chamber of the radiator or expansion water tank to the pump's intake port.
Most models adopt a "high-in-low-out" layout, that is, the inlet pipe is located higher and the return pipe is lower.
The material is mostly rubber (such as EPDM), TPV or nylon (PA), especially for new energy vehicles, lightweight nylon pipes are preferred.
Heating system inlet pipe
Transporting the engine's high-temperature coolant to the heating core, belonging to the heating system.
Although it is also called "inlet pipe", it serves for interior heating rather than the main cooling cycle.
Inlet pipes for fire trucks and other specialized vehicles
May include various channels such as side inlet, rear inlet, and forward inlet, used to draw water from water tanks, fire hydrants, or natural water sources.
Unlike the cooling system inlet pipes of ordinary passenger vehicles, it belongs to fire-fighting-specific terminology.
How to identify the inlet pipe?
Position determination: Usually connected to the pump's intake port, located at the front or side of the engine.
Comparison of thickness: On the expansion water tank or radiator, the thicker pipe is mostly the inlet pipe.
Temperature assistance determination: During operation, the surface temperature of the inlet pipe is relatively lower (because it flows in unheated coolant). Notes for Attention
If the inlet pipe is clogged, leaks or becomes aged and cracked, it will cause insufficient coolant, the water pump to run idle, and subsequently lead to engine overheating. Regularly checking whether the pipes are hardened, cracked or the joints are loose is crucial for preventing cooling system failures.
The main function of the inlet pipeline of the car water pump is to transport the coolant from the radiator (water tank) or expansion tank to the pump inlet, thus forming an important part of the key loop of the cooling system. Based on the current authoritative public information, its specific functions are as follows:
Forming the coolant circulation path: The inlet pipe connects the lower water chamber of the radiator (or expansion tank) with the pump inlet, allowing the cooled and low-temperature coolant to be sucked into the pump by the pump, and then pressurized and sent to the engine cylinder block and cylinder head for heat absorption.
Maintaining system pressure balance: Under the centrifugal force generated by the rotation of the pump impeller, a low-pressure area is formed at the center of the impeller. The inlet pipe uses this pressure difference to continuously replenish the coolant and ensures the continuity of the circulation.
Cooperating with the thermostat to control the circulation mode: When the engine is cold, the thermostat closes the channel to the water tank, and the coolant circulates internally in the engine; when the temperature rises to approximately 80–95°C, the thermostat opens, and the coolant enters the pump through the inlet pipe and participates in the large circulation for heat dissipation.
Note: In some materials, "inlet pipe" may refer to different meanings. For example, if it refers to the inlet pipe of the heating water tank, it is used to transport the cooled coolant from the engine to the heating system to provide heating for the interior of the vehicle.
However, according to the conventional context and the question "pump inlet pipeline", it usually refers to the inlet channel of the engine cooling system pump.
