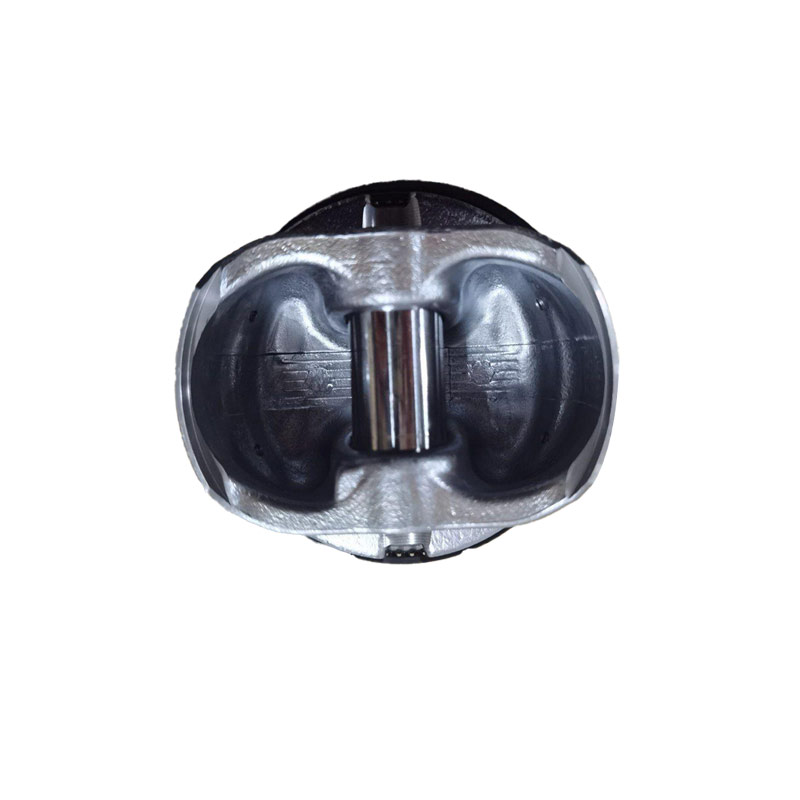

The core role of the piston assembly
In the operation system of an automotive engine, the "iron triangle" composed of pistons, piston rings, and piston pins is the key hub for power transmission.
The piston can be regarded as the "power converter" of the engine. It withstands the tremendous pressure from the combustion gases in the cylinder and transmits the force through the piston pin to the connecting rod, ultimately driving the crankshaft to rotate and converting the chemical energy of the fuel into mechanical energy for vehicle movement. At the same time, the top of the piston and the cylinder head, cylinder wall jointly form the combustion chamber, providing space for the efficient combustion of fuel and also allowing the piston to complete the three auxiliary strokes of intake, compression, and exhaust under the drive of the connecting rod, ensuring the cyclic operation of the engine.
The piston ring is the "multi-functional guardian" of the engine, divided into air rings and oil rings. The air ring is responsible for sealing the combustion chamber and the crankcase, preventing the leakage of high-temperature and high-pressure gas, and transferring 70%-80% of the heat from the piston top to the cylinder wall, which is then dissipated by the cooling system to avoid damage to the piston due to overheating. The oil ring is like a "lubricant manager", scraping off the excess oil on the cylinder wall to prevent it from entering the combustion chamber and causing "oil burning", and at the same time forming an even oil film on the cylinder wall to reduce friction and wear between the piston and the cylinder wall. In addition, the piston ring can provide support for the piston to avoid direct collision with the cylinder wall and reduce running noise and vibration.
The piston pin is the "power bridge" connecting the piston and the connecting rod, which smoothly transmits the gas pressure borne by the piston to the connecting rod to achieve the conversion from the piston's reciprocating motion to the connecting rod's oscillation. To ensure uniform force distribution, most adopt full-floating installation, allowing the piston pin to rotate slowly within the piston pin seat and the small head bushing of the connecting rod, making the wear more uniform; some models adopt semi-floating installation, fixing the piston pin and the small head of the connecting rod with bolts, resulting in a more compact structure.
Common faults and manifestations
The piston assembly works under high temperature, high pressure, and high friction conditions for a long time, and is prone to various faults, directly affecting the engine performance.
The piston ring is a component with high failure rate, and wear is the most common problem. Long-term friction and high temperature will cause the gap between the piston ring and the cylinder wall to increase, reducing the sealing performance, resulting in insufficient engine power, soaring fuel consumption, and even the "oil burning" phenomenon where the exhaust pipe emits blue smoke. If the piston ring is stuck due to carbon deposits or loses its elasticity, it will also cause fluctuations in cylinder pressure, resulting in idle shaking, increased crankcase pressure, and other problems. A broken piston ring is even more serious, with the broken ring piece possibly scratching the cylinder wall, causing cylinder seizure and preventing the engine from running.
The failure of the piston pin is mainly manifested as abnormal noise and wear. When the piston pin and the small head of the connecting rod or the piston pin seat hole are worn excessively and there is a gap, the engine will emit a clear and rhythmic sound at idle, and the sound intensifies when accelerating. If the lubrication is poor, the piston pin will also undergo erosion, resulting in poor contact between the mating surfaces and more chaotic abnormal noise; severely, the piston pin may fatigue and break, causing piston damage, even perforating the cylinder block.
The faults of the piston itself include top burnishing, skirt wear, and cylinder seizure. The piston top, under the impact of high-temperature and high-pressure gas for a long time, is prone to pits or cracks, affecting the sealing performance of the combustion chamber, resulting in a decrease in engine power. The skirt wear will increase the gap between the piston and the cylinder wall, destroying the stability of the oil film, and exacerbating wear and gas leakage. Cylinder seizure is the extreme case of the failure of the piston and cylinder liner to cooperate, often caused by unreasonable cylinder clearance, cooling system failure, or insufficient lubricating oil, resulting in cylinder liner scratching, failure of engine heat dissipation, and even direct报废.
Fault diagnosis and response strategies
When facing faults of the piston assembly， timely diagnosis and handling are the key to ensuring the engine's lifespan.
For piston ring failures， internal inspection with an endoscope can be used to observe the carbon deposits on the piston top and the ring groove， or cylinder pressure tests can be conducted. If the cylinder pressure is normal but the oil consumption is excessive， it is likely that the piston ring's sealing has failed. For minor carbon deposits causing slight sticking, adding piston ring release agent can be attempted. For severe wear or breakage, piston rings need to be replaced. In necessary cases, the wear conditions of the piston and cylinder liner should also be checked simultaneously.
The abnormal noise from the piston pin can be diagnosed through the fire-off test: if the noise reduces or disappears after the ignition is cut off, it is usually caused by a broken piston pin; if the noise becomes more chaotic, it may be due to excessive clearance. When dealing with it, the worn piston pin needs to be replaced, and the wear conditions of the connecting rod bearing and the piston pin seat hole should also be checked. If necessary, repair or replacement should be carried out.
The diagnosis of piston faults requires a comprehensive judgment based on the symptoms. For example, blue smoke coming from the exhaust pipe may indicate piston ring wear or piston pulling the cylinder liner. If the engine power decreases accompanied by abnormal combustion chamber pressure, it is necessary to check the burn damage on the top of the piston. When the piston is severely abraded, worn at the skirt, or pulled out of the cylinder, it is usually necessary to replace the piston, and the fault causes of the cooling and lubrication systems should be investigated to avoid recurrence.
During daily maintenance, regular replacement of high-quality engine oil, keeping the air filter clean, and avoiding long-term high-load operation can effectively reduce the wear of the piston components and extend the service life of the engine.
