Charging Controller: The Invisible Regulator and Fault Responder of the Vehicle Power System
In the complex power system of a car, although the charging controller is not as prominent as the engine or the gearbox, it plays a crucial role. It is like a precise regulator that constantly adjusts parameters based on the engine's operating status to ensure efficient and stable power output from the vehicle.
The core function of the car charging controller
The car charging controller is mainly divided into power system charging controllers and engine phase controllers, each performing its own duties to maintain the normal operation of the vehicle.
In the car's power system, the charging controller is responsible for the critical task of stabilizing the voltage. The engine's speed range is wide, and the output voltage of the generator will fluctuate accordingly. The electrical equipment inside the car, such as headlights, audio systems, and in-vehicle navigation, all require a stable voltage to function properly. The charging controller controls the size of the magnetic field current inside the generator, increasing the current when the engine speed is low and reducing it when the speed is high, stabilizing the generator's output voltage at the rated value (typically around 14.0V) to ensure that the vehicle's electrical equipment is not affected by voltage fluctuations. At the same time, it also has the functions of preventing excessive charging current and cutting off reverse current, avoiding damage to the battery and generator due to excessive charging current, preventing battery over-discharge and damage to the generator windings, and effectively extending the battery and generator's lifespan.

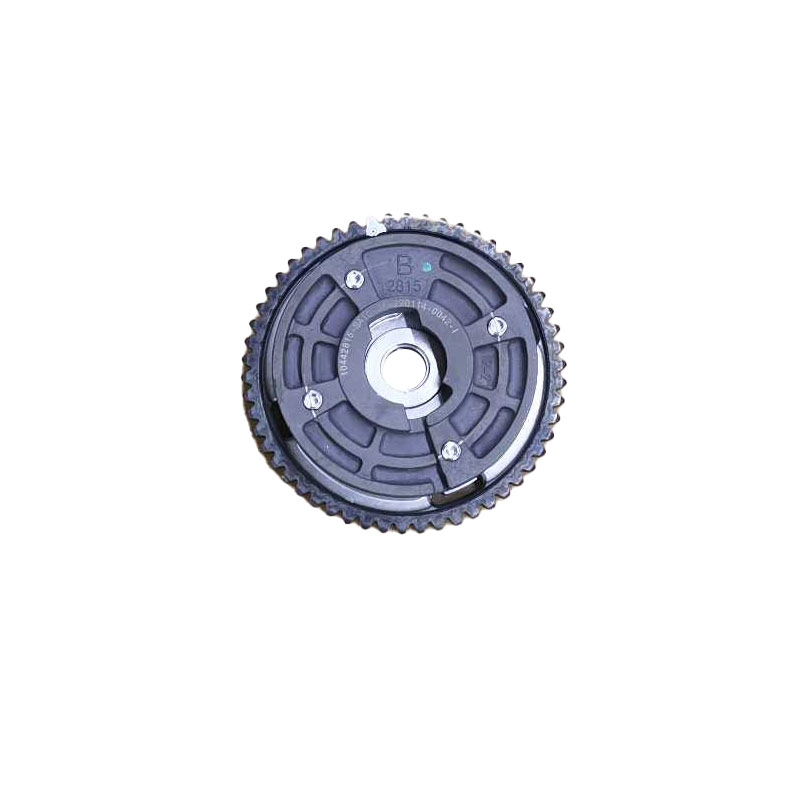

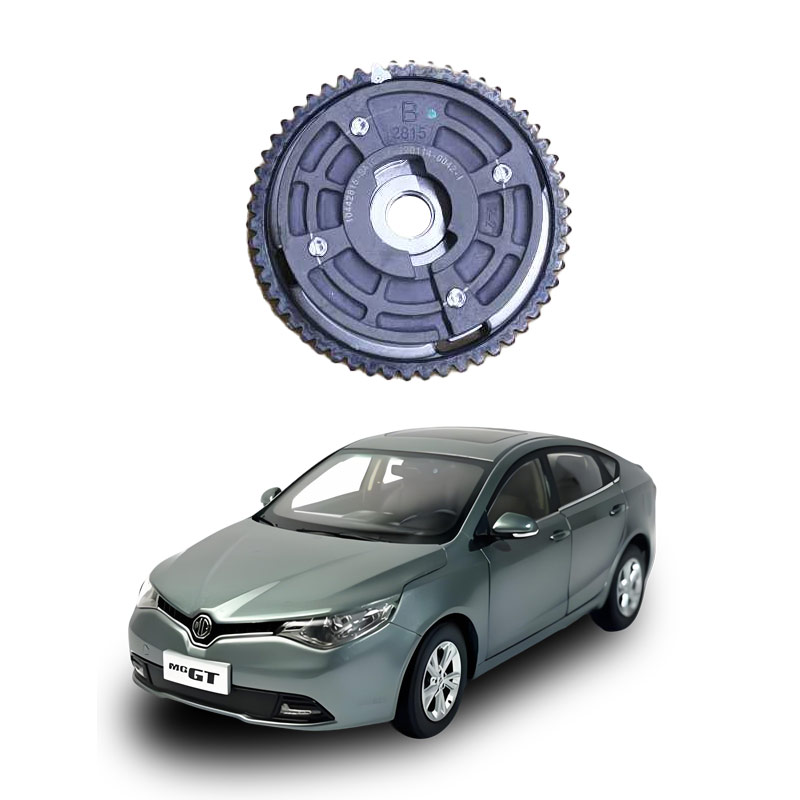

The engine phase controller focuses on optimizing the engine's combustion efficiency. For example, the VVT phase regulator can adjust the camshaft's phase according to changes in engine operating conditions, thereby adjusting the intake and exhaust volume, controlling the opening and closing time and angle of the valves. In low-speed or low-load conditions, the intake phase regulator will appropriately advance the closing time of the intake valve, creating a shorter intake stroke, enhancing the turbulence and swirl effect in the cylinder, making the mixture more uniform, improving combustion stability, and enhancing low-speed torque output, making the vehicle start more smoothly; when the engine is at high speed or high-load conditions, it will delay the closing time of the intake valve, increasing the intake stroke length, allowing more air to enter the cylinder, and coordinating with a later fuel injection time to form a denser mixture, increasing the engine's power output, meeting the needs of vehicle acceleration or high-speed driving.
Common manifestations of car charging controller failures
When the car charging controller fails, it will show abnormalities in multiple aspects of the vehicle.
When the power system charging controller fails, the most common phenomenon is that the generator does not generate electricity. At this time, the battery indicator light on the dashboard will light up, which is usually caused by the breakdown of the voltage regulator's field-effect transistor or Darlington transistor. There may also be a situation of excessive power generation, which will cause the battery to overcharge, affecting battery life, and even leading to battery damage, manifested as a battery voltage below 10V, making it difficult for the vehicle to start. In addition, a damaged generator regulator will also cause the vehicle to have difficulty accelerating, increased fuel consumption, and significantly affecting the vehicle's performance.
The engine phase controller failure will directly affect the engine's power output and fuel economy. When a failure occurs, the engine may have unstable idle, severe shaking, insufficient low-speed torque output, and slow vehicle start-up; at high speeds, the power output cannot reach the normal level, and the acceleration performance will decline. At the same time, due to reduced combustion efficiency, the vehicle's fuel consumption will increase significantly, and the exhaust emissions may exceed the standard.
Diagnosis and resolution of car charging controller failures
For power system charging controller failures, professional detection methods can be used for diagnosis. For example, when inspecting the vehicle, a 10 - 20V (or 20 - 40V) variable DC power supply can be used, connected according to specific methods, and the current meter pointer change or the state of the bulb is observed to measure the regulator's regulating voltage. If the voltage is not within 13.6 - 14.5V, it indicates that the regulator is faulty. In general, integrated circuit regulators cannot be repaired once they are damaged and can only be replaced. When replacing them, it is necessary to choose a suitable regulator that matches the original one in terms of nominal voltage, ground polarity, and other specifications. The voltage levels and grounding forms of the regulator and the generator should also be consistent.
The diagnosis of engine phase modulation controllers is relatively complex and usually requires the use of professional automotive diagnostic equipment. Reading the fault codes of the engine, analyzing the camshaft phase data, etc. Once the fault is identified, for hydraulic-driven phase regulators, it may be necessary to check if the hydraulic oil circuit is blocked and if the sealing ring is damaged; for electric-driven regulators, it is necessary to check if the motor and control circuit are normal. In some cases, the damaged phase regulator components need to be replaced.
Key points for the daily maintenance of automotive modulators
To reduce the occurrence of automotive modulator failures, daily maintenance is crucial. First, regular inspections of the vehicle's electrical system are necessary to ensure that the wiring between the generator and the regulator is secure, avoiding faults such as unstable charging due to loose wiring. Secondly, according to the requirements of the vehicle maintenance manual, regularly replace engine oil, air filters, etc., to ensure the cleanliness of the engine interior and provide a favorable working environment for the phase regulator. In addition, when replacing the battery or generator, choose products that match the vehicle to avoid damaging the modulator due to voltage mismatch or other issues.
As a key component of the vehicle's power system, automotive modulators cannot be underestimated. Understanding their functions, fault manifestations, and diagnostic and resolution methods can help car owners identify and solve problems promptly, ensuring the normal operation of the vehicle and extending its lifespan.
