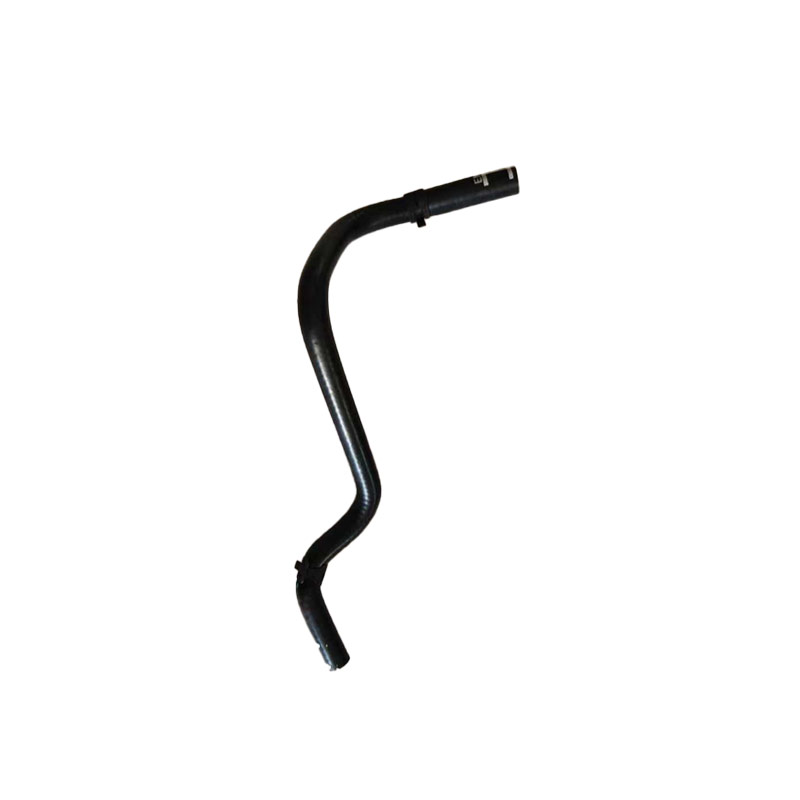

The core function of the car water tank overflow pipe
The car water tank overflow pipe may seem insignificant, but it is a crucial component in maintaining pressure balance and liquid level stability within the cooling system. From a functional perspective, its primary role is to control the maximum water level of the water tank. When the cooling fluid expands due to heat and exceeds the capacity of the water tank, the excess liquid can be smoothly discharged through the overflow pipe, preventing abnormal pressure increase within the water tank and damage to the seals or cracking of the water tank.
In terms of structural design, the diameter of the overflow pipe is usually 1-2 sizes larger than the inlet pipe to ensure that the excess cooling fluid can be quickly discharged. The pipe opening is often equipped with a flared mouth to expand the collection area, and the pipe opening should be 20-50mm higher than the maximum water level of the water tank. This not only ensures the accuracy of liquid level control but also prevents accidental overflow of the cooling fluid during daily driving. Additionally, the overflow pipe adopts an indirect drainage design, not directly connected to the drainage system, and a water seal device is set up to prevent sewage from backflowing and contaminating the cooling fluid, effectively ensuring the cleanliness and operational stability of the cooling system.
For vehicles with an auxiliary water tank, the overflow pipe also performs the function of regulating the cooling fluid circulation. When the engine temperature rises, the cooling fluid in the water tank expands, and some of the liquid flows through the overflow pipe into the auxiliary water tank for storage. After the engine cools down, the volume of the cooling fluid contracts, and the liquid in the auxiliary water tank flows back to the water tank through the return pipe, forming a complete thermal expansion and contraction cycle, always maintaining the liquid level balance of the cooling system.
Common faults and manifestations of the car water tank overflow pipe
Overflow pipe blockage
Over time, water scale, impurities, or external dust in the cooling fluid tend to accumulate in the overflow pipe, causing it to become clogged. At this point, the heated cooling fluid cannot be discharged normally, resulting in a sudden increase in pressure within the water tank, manifested as water gushing out from the water tank cover, abnormal increase in engine water temperature, and in severe cases, the water tank cracking or the water pipe detachment. Some models may also experience abnormal accumulation of cooling fluid in the auxiliary water tank, or even overflow from the overflow hole of the auxiliary water tank.
Overflow pipe rupture or loose interface
During the vehicle's driving process, vibrations, bumps, or external collisions may cause the overflow pipe to develop cracks or the interface to fail the seal. When the fault occurs, the cooling fluid will continuously leak from the damaged area, and obvious traces of cooling fluid can be seen on the ground. At the same time, the liquid level of the cooling system will gradually decrease, and the engine water temperature warning light may illuminate. If the interface loosening is not promptly addressed, air will enter the cooling system, causing poor circulation of the cooling fluid and further exacerbating the overheating problem.
Design flaws or improper installation of the overflow pipe
Some models have design flaws or improper installation due to the selection of an insufficient pipe diameter, unreasonable pipe opening position, or incorrect installation angle, resulting in the failure of the overflow function. For example, a small pipe diameter cannot quickly discharge the expanded cooling fluid, causing excessive pressure within the water tank; a low pipe opening position may cause the cooling fluid to overflow before reaching the maximum water level, resulting in waste of cooling fluid and abnormal liquid level. Such faults are often manifested as frequent overflow of cooling fluid during vehicle operation, but the engine water temperature does not increase significantly.
Diagnosis and solution methods for overflow pipe failures
Fault diagnosis process
When abnormal cooling fluid overflow or abnormal liquid level is observed, the first step is to inspect the appearance of the overflow pipe, checking for any cracks, loose interfaces, or obvious blockage marks. If there are no abnormalities in the appearance, open the water tank cover and start the engine, gradually increasing the speed. Observe the flow state of the cooling fluid: if the cooling fluid in the water tank violently churns but no liquid flows into the overflow pipe, it is likely that the overflow pipe is clogged; if the cooling fluid flows out in large quantities from the overflow pipe but the water temperature is normal, it may be that the installation position of the overflow pipe is incorrect or there is a problem with the pipe diameter design.
At the same time, you can check the condition of the cooling fluid to assist in the diagnosis: if the cooling fluid is turbid and contains a large amount of impurities, it indicates severe corrosion within the cooling system, and the risk of overflow pipe blockage is high; if the cooling fluid is emulsified and appears milky white, it may indicate damage to the cylinder gasket, causing the cooling fluid to mix with the oil, and the overflow problem is not solely caused by the overflow pipe failure.
Targeted solutions
For the blockage of the overflow pipe, you can first use high-pressure air to blow from the pipe opening in the reverse direction to remove the accumulated impurities inside the pipe. If the blockage is severe, the overflow pipe needs to be removed for thorough cleaning. In some cases, a new pipe needs to be replaced. After cleaning, the coolant should be replaced and water tank rust inhibitor added to prevent impurities from accumulating again.
For the rupture of the overflow pipe or loose interface, if there is a minor crack, an emergency treatment with the water tank powerful leak stopper can be used. After the vehicle reaches the repair shop, a new pipe should be replaced. If the interface is loose, the clamp needs to be re-tightened and sealant should be applied at the interface to enhance the sealing performance. When replacing the overflow pipe, it is necessary to choose accessories that are consistent with the original factory specifications to ensure that the pipe diameter, length and installation angle meet the requirements.
For faults caused by design or installation defects, contact professional maintenance personnel to re-adjust the overflow pipe or replace the pipe with an appropriate model. For example, replace the small overflow pipe with a pipe of a larger diameter that meets the specifications, or adjust the pipe height to the standard position to solve the problem of the overflow function failure from the root cause.
Key points of daily maintenance of the overflow pipe
To avoid the failure of the overflow pipe affecting the vehicle operation, during daily maintenance, it is necessary to regularly check the appearance of the overflow pipe to ensure there are no signs of damage, loosening or blockage. It is recommended to clean the overflow pipe simultaneously when replacing the coolant. At the same time, choose coolant strictly in accordance with the original factory requirements to avoid using inferior coolant or tap water, which can reduce the generation of scale and impurities.
In addition, regular inspection of the cooling system pressure is required. A dedicated pressure tester can be used to detect the pressure control ability of the water tank cover and the overflow pipe. Ensure that the system pressure remains within the normal range of 0.9-1.2 bar. When the coolant level is abnormal, replenish it in time and check the status of the overflow pipe and other components of the cooling system to detect and handle problems early, effectively extending the service life of the overflow pipe and the cooling system.
