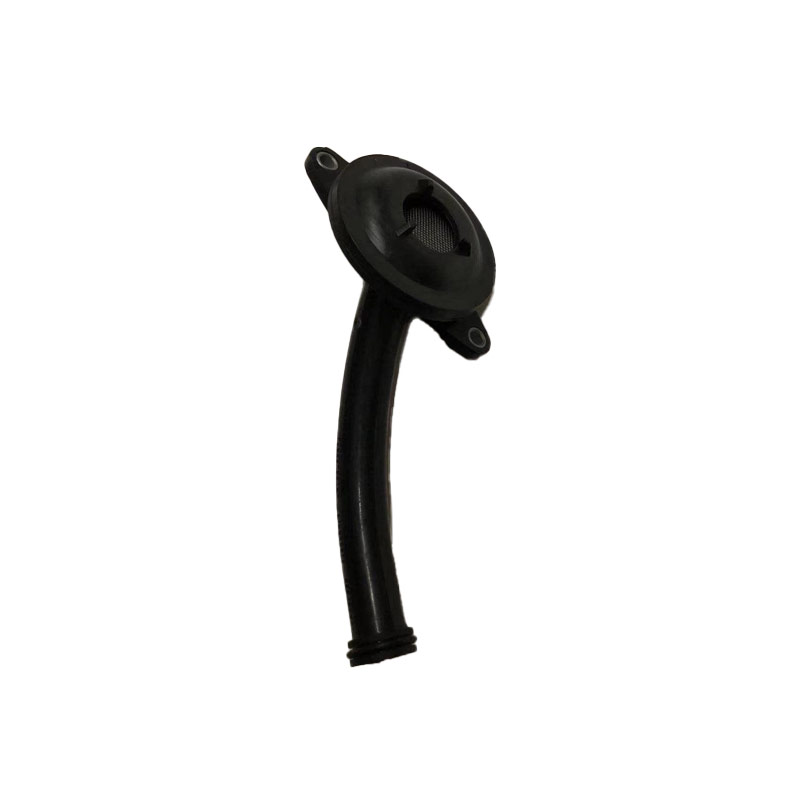

The function of the oil suction pipe of the car's oil pump
The function of the oil suction pipe of the car engine oil pump is to draw the engine oil from the oil pan (where the oil is stored) into the oil pump, so that it can be pressurized and then delivered to various lubrication parts of the engine.
The specific functions are as follows:
Establishing the starting point of the lubrication cycle: The suction pipe connects the oil pan with the oil pump's intake port, allowing the oil to be continuously drawn into the pump.
Ensuring continuous oil supply: During the operation of the engine, regardless of the changes in speed, the suction pipe ensures that the oil flows steadily into the oil pump, avoiding insufficient lubrication due to suction failure.
Cooperating with filtration and distribution: The sucked-in oil is pressurized by the oil pump, and usually passes through the oil filter first, then through the oil passage to the key friction surfaces such as the crankshaft, connecting rod, and camshaft.
This component is a key part of the engine lubrication system. If the suction pipe is clogged or damaged, it will directly lead to a decrease in oil pressure, causing engine wear and even serious faults.
Common symptoms of the oil suction pipe failure of the car engine oil pump include insufficient oil pressure, abnormal engine noise, difficulty starting, and the illumination of the oil warning light. According to authoritative public information, combined with the current time (March 2026) and common failure patterns, the main causes and corresponding solutions are as follows:
Common causes
Low oil level or high position of the suction pipe: This causes the oil pump to be unable to effectively draw oil, especially more likely to occur on slopes or sharp turns .
Low oil temperature: In low-temperature environments, the viscosity of the oil increases, increasing the suction resistance and affecting the pump's oil delivery efficiency .
Clogging of the suction pipe: Filter dirt, oil sludge deposition, or foreign objects blocking the suction channel .
Leakage of the pipeline or poor sealing: Loose joints, aging sealing rings causing air to enter, forming an air block .
The rotor chamber of the oil pump is not pre-filled with oil: After major repairs or replacement of the oil pump, if no pre-filling of oil is done, the initial oil suction will fail .
Deformation of the suction pipe or improper installation: External force compression, too small bending radius, or incorrect assembly affecting the oil flow .
Typical manifestations
Difficulty starting: It takes a long time to turn the key to start the engine, due to the slow establishment of pressure in the lubrication system .
Abnormal engine noise: Buzzing or metal dry friction sound during operation .
Instrument alarm: The oil pressure warning light or engine fault light illuminates .
Weak acceleration or shaking: Insufficient lubrication leads to increased friction, and the transmission of power is blocked .
Oil leakage: Failure of the seal may be accompanied by oil leakage .
Troubleshooting and solution suggestions
Check the oil level: Park on a flat surface, turn off the engine for 10 minutes, and check the oil dipstick to ensure the level is between the upper and lower marks.
Check for air entry: Check the suction pipe joints and sealing rings for looseness or aging .
Clean or replace the filter: If the filter has not been replaced for a long time, the blocked filter element will indirectly affect the oil supply from the suction pipe .
Pay attention to pre-filling oil after major repairs: When replacing the oil pump, be sure to pre-fill an appropriate amount of oil in the rotor chamber to avoid dry rotation .
Professional diagnosis: Use an OBD device to read the fault code to confirm whether it is a problem with the oil pressure sensor or the pump itself .
If obvious fault symptoms have occurred, do not continue driving, as it may cause severe damage such as engine cylinder pulling or bearing burning. It is recommended to contact a professional repair agency for handling as soon as possible.
