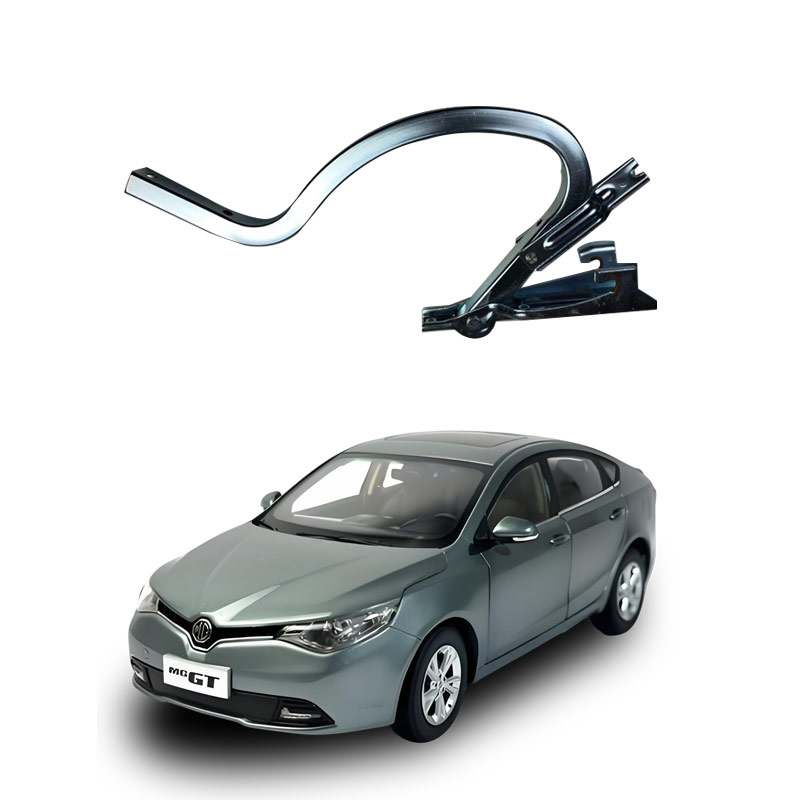

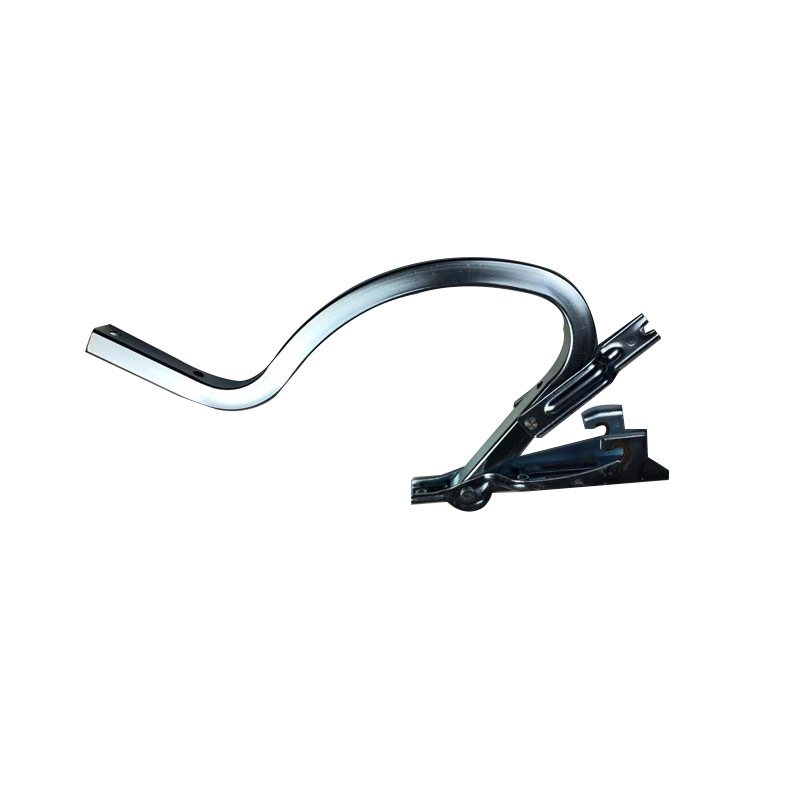

Car trunk hinge: The key role in safeguarding the trunk
Among the numerous components of a car, the trunk hinge may seem insignificant, but it plays a crucial role in ensuring the smooth opening and closing of the trunk and protecting the safety of the items inside. It is like the "joint" of the car trunk, silently supporting each opening and closing operation during daily use and is an indispensable part of the car's body structure.
The core function of the car trunk hinge
The car trunk hinge is a key mechanical device that connects the trunk cover to the car body. Its role runs through every aspect of trunk usage, mainly the following aspects：
Realizing the opening and closing function， ensuring the convenience of use
The most basic function of the trunk hinge is to allow the trunk cover to flexibly open and close relative to the car body. Whether it is for storing luggage during daily travel or retrieving tools during vehicle maintenance， the smooth operation of the hinge is relied upon. Different models of trunks have different hinge designs， such as single-point hinges and link-type hinges. The single-point hinge has a simple structure and low cost， with a fixed rotation center， which can meet basic opening and closing requirements； the link-type hinge has a movable rotation center， providing greater freedom of shape for the front and rear ends of the trunk cover， while also ensuring a larger opening angle， providing convenience for users to take and place items， such as the trunk cover opening angle of Audi 100 can reach 87°.
For sedan models， a hinge with a torsion bar is usually used. When the trunk lock is opened， the trunk cover will automatically spring open to the maximum limit position under the action of the torsion bar， eliminating the need for manual lifting； while for hatchback models， due to the larger volume and weight of the trunk cover， an air spring is usually paired as an auxiliary support to balance the weight of the trunk cover， making the opening and closing operation more effortless.
Providing stable support， ensuring item safety
The trunk hinge needs to bear the weight of the trunk cover， ensuring its stability during opening and closing， and preventing accidental detachment or shaking. When the trunk cover is open, the hinge must be able to securely support the trunk cover， preventing sudden drop due to its own weight or external forces， causing injury or damage to items. High-quality hinges are made of high-strength materials and have good load-bearing capacity and durability， maintaining stable performance even after long-term use or carrying heavy items.
In addition， when the trunk cover is closed， the hinge can ensure a tight fit with the car body， enhancing the sealing of the trunk， reducing wind noise and rain leakage risks， and effectively protecting the items inside from external environmental influences.
Adapting to the development of electrification， enhancing intelligent experience
With the development of automotive electrification technology， more and more models are equipped with electric trunks. Unlike traditional manually operated hinges， electric trunk hinge needs to be adapted to the electric drive system， applying force from the supporting end to drive the trunk to open and close as a whole. During the development of electrification， the four-link hinges of the trunk system need to be optimized， increasing the length of the electric drive end arm， reducing the torque required for electric drive， to ensure the smoothness and reliability of electric opening and closing. Through technical means such as dynamic simulation， it is possible to more accurately obtain the motion state and force conditions of the mechanism at any position， providing data support for the optimization design of the hinge.
Common faults and solutions of car trunk hinges
Although the trunk hinge is designed to be sturdy and durable， during long-term use， affected by environmental and operational factors， various faults may occur， affecting the normal use of the trunk. Common faults and solutions are as follows：
Hinge loosening
Long-term opening and closing of the trunk cover， driving through bumpy roads， etc.， may cause the connecting bolts of the hinge to loosen， resulting in shaking of the trunk cover and poor opening and closing performance. The solution is to use a torque wrench to apply the standard torque (15 - 20N·m) to reinforce the bolts， ensuring a secure connection between the hinge and the car body and trunk cover.
Hinge rust and corrosion The car is exposed to outdoor conditions for a long time, subject to wind and rain. The hinges are prone to rust and corrosion, resulting in increased opening and closing resistance and even jamming. For minor rusting, a phosphoric acid rust remover can be used for treatment. After removing the rust, apply grease or lubricating oil to restore the smoothness of the hinges. If the rust is severe and affects the normal function of the hinges, it is necessary to consider replacing the new hinges.
Bearing damage
The bearings inside the hinges may be damaged due to wear and poor lubrication during long-term use, causing abnormal sounds and jamming when the luggage compartment lid opens and closes, and even making it impossible to open or close normally. In this case, it is recommended to replace the entire original factory hinge assembly. When installing, pay attention to maintaining the horizontal angle to ensure the performance and lifespan of the new hinges.
Over-constraint causing movement obstruction
In some complex hinge mechanism designs, over-constraint may occur, affecting the normal movement of the hinges. For example, in some multi-link hinge models, too many rotational joints may lead to a negative system degree of freedom, resulting in an over-constrained state. The solution to over-constraint is to replace some rotational joints with point-line joints, releasing the repeated constraints' degrees of freedom, so that the hinges can move smoothly.
Maintenance and care of car luggage compartment hinges
To extend the service life of the luggage compartment hinges and reduce the occurrence of faults, daily maintenance and care are crucial. First, regularly check if the connecting bolts of the hinges are loose. If so, tighten them in time. Secondly, keep the hinges clean to prevent dirt, sand, and dust from entering the hinges and affecting their normal operation. Thirdly, apply lubricating oil regularly to effectively reduce the wear of the hinges and improve their smoothness. When using the luggage compartment, avoid violent opening and closing, and try to open and close gently to reduce the impact and damage to the hinges.
In conclusion, although the luggage compartment hinges are small, they play an important role in car usage. Understanding their functions, common faults, and solutions, and doing daily maintenance and care can ensure that the luggage compartment hinges always remain in good working condition, providing convenience and safety for our travels.
