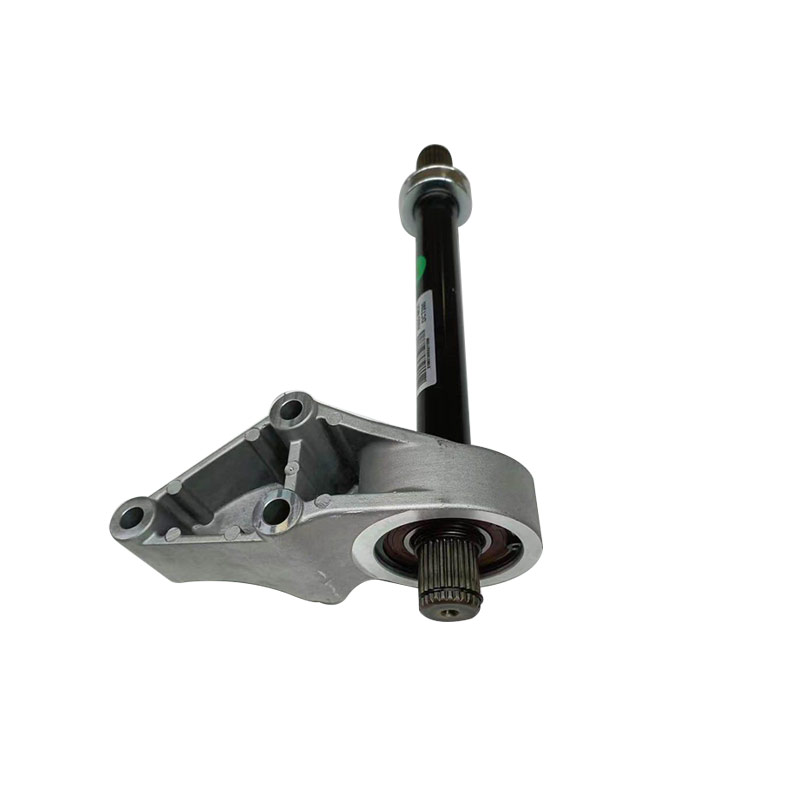

Center shaft of the car: The core of power transmission and troubleshooting
In the complex power transmission system of a car, the center shaft plays a crucial role. It functions like a bridge, connecting the power output from the engine to the vehicle's driving requirements. Understanding the role, failure manifestations, and maintenance methods of the center shaft is of great significance for ensuring vehicle performance and driving safety.
The core function of the car center shaft
The center shaft is mainly located inside the transmission. Its core function is manifested in power transmission, gear shifting and torque variation, as well as the optimization of driving stability.
Firstly, power transmission and optimization. For mid-engine rear-wheel drive (MR) or mid-engine four-wheel drive (4MR) vehicles, the center shaft can directly transfer the engine's output torque to the driving wheels, reducing power loss, and the power transmission efficiency is typically 5%-8% higher than that of front-wheel layout. Inside the transmission, the center shaft connects the first shaft (input shaft) and the second shaft (output shaft), and through the operation of the shifting mechanism, it enables the engagement of different gear sets, allowing the second shaft to output different rotational speeds, steering and torque according to driving needs, directly affecting the acceleration performance and driving characteristics of the vehicle. For example, in a dual-center shaft transmission, each center shaft theoretically only bears 1/2 of the torque, using dual center shafts can reduce the center distance of the transmission, thin out the thickness of the gears, shorten the axial dimension, reduce the weight, and at the same time, ensure the stability of power transmission.
Secondly, weight balance adjustment. The position design of the center shaft directly affects the front-to-rear weight ratio of the vehicle. For sporty cars with a 50:50 weight distribution, the layout of the center shaft is one of the key factors. A reasonable weight ratio can make the vehicle more stable during driving, improving handling performance, especially in high-speed cornering and emergency avoidance, where it can effectively reduce body roll and sway.
Finally, driving stability support. During high-speed lane changing or cornering, the center shaft can suppress the lateral sway of the vehicle. According to experience, for vehicles with a strengthened center shaft, the side-slip angle can be reduced by 10%-15%. The center shaft is usually integrated with the gear set (presenting a tower-like structure, commonly known as a tower gear), this integrated structure enhances the overall rigidity of the transmission system, shortens the power transmission path, effectively reduces mechanical losses, and enhances the ability to withstand impact loads in complex working conditions. Common faults and manifestations of the car center shaft
During long-term use of the center shaft, various faults may occur, which directly affect the normal operation of the vehicle and even endanger driving safety.
Abnormal noise is one of the most common manifestations of center shaft faults. When the vehicle starts or accelerates abruptly, a "clunking" or "buzzing" metallic friction sound will be heard in the middle of the chassis. This is usually caused by the wear of the universal joint of the center shaft or the rupture of the dust cover. Long-term use of the worn surface and the loss of tightness in the component connection will cause abnormal noise during operation; problems with the lubrication system, such as insufficient lubricating oil, deterioration of the oil, or blocked oil passage, will cause frictional vibration when the shaft is running at high speed; improper installation during maintenance and repair, incorrect position, or loose bolts, causing abnormal force on the shaft, will also trigger abnormal noise; if there are quality issues such as material defects during the manufacturing process, abnormal noise will also occur. In addition, abnormal noise is heard when the steering wheel is turned, and occasionally a loud "click" sound is emitted, which may be a fault of the steering center shaft (cross shaft, cross joint).
Shaking is also a typical symptom of center shaft faults. During high-speed driving (above 80 km/h), the vehicle body shows regular shaking. After excluding the problem of tire dynamic balance, it is likely that the center shaft's dynamic balance has failed. The failure of the center shaft's dynamic balance will cause irregular vibrations during vehicle operation, affecting the comfort of the ride, and also causing additional wear on other vehicle components.
Power lag is also one of the manifestations of intermediate shaft failure. When stepping on the accelerator, the power transmission is not smooth, and the acceleration response becomes slower. This may be caused by excessive power connection gap due to wear of the intermediate shaft spline. Power lag will reduce the acceleration performance of the vehicle, and in situations such as overtaking and emergencies, it may lead to safety accidents.
Maintenance and troubleshooting of the intermediate shaft of a car
To extend the service life of the intermediate shaft and reduce the occurrence of faults, daily maintenance is crucial.
Regular inspection is the key to maintaining the intermediate shaft. It is recommended to check whether the dust cover of the intermediate shaft is damaged and whether the universal joint is loose every 20,000 kilometers. This is the key to avoiding premature wear of the intermediate shaft. At the same time, pay attention to checking the oil quantity and quality of the lubricating oil to ensure the normal operation of the lubrication system and avoid wear and abnormal noise caused by insufficient lubrication.
Lubrication maintenance is also not to be ignored. If the dust cover is intact, the universal joint can be lubricated with grease every 40,000 kilometers to extend its service life. When reinstalling the intermediate shaft after maintenance or repair, ensure the installation position is accurate, the bolt tightening torque meets the requirements, and avoid abnormal noise and faults caused by improper installation.
Avoiding violent driving is also an important measure for maintaining the intermediate shaft. Frequent sudden acceleration and braking will increase the load on the intermediate shaft. According to experience, the lifespan of the intermediate shaft in vehicles with violent driving will be shortened by about 30%.
When the intermediate shaft fails, it is necessary to carry out maintenance and replacement in time. For abnormal noise faults, it is necessary to investigate and handle the specific cause, such as replacing the worn universal joint, repairing or replacing the dust cover, adding lubricating oil, etc. For shaking and power lag faults, it may be necessary to perform dynamic balance correction on the intermediate shaft or replace the damaged components. When replacing the intermediate shaft, it is recommended to choose domestic original equipment or imported improved versions to ensure the quality of maintenance.
In summary, the intermediate shaft of a car is a core component in the vehicle's power transmission system, and its role is irreplaceable. By understanding the function of the intermediate shaft, the manifestations of faults, and maintenance methods, car owners can better ensure the performance and driving safety of the vehicle, making driving smoother and more reassuring.
