Intake Pressure Sensor: The Core "Data Eye" of the Engine

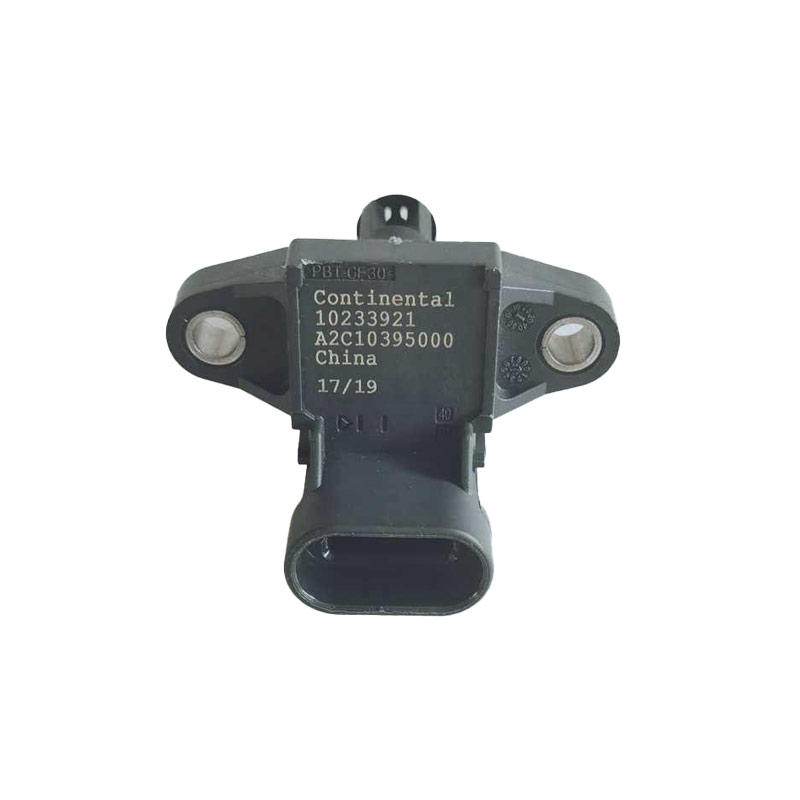

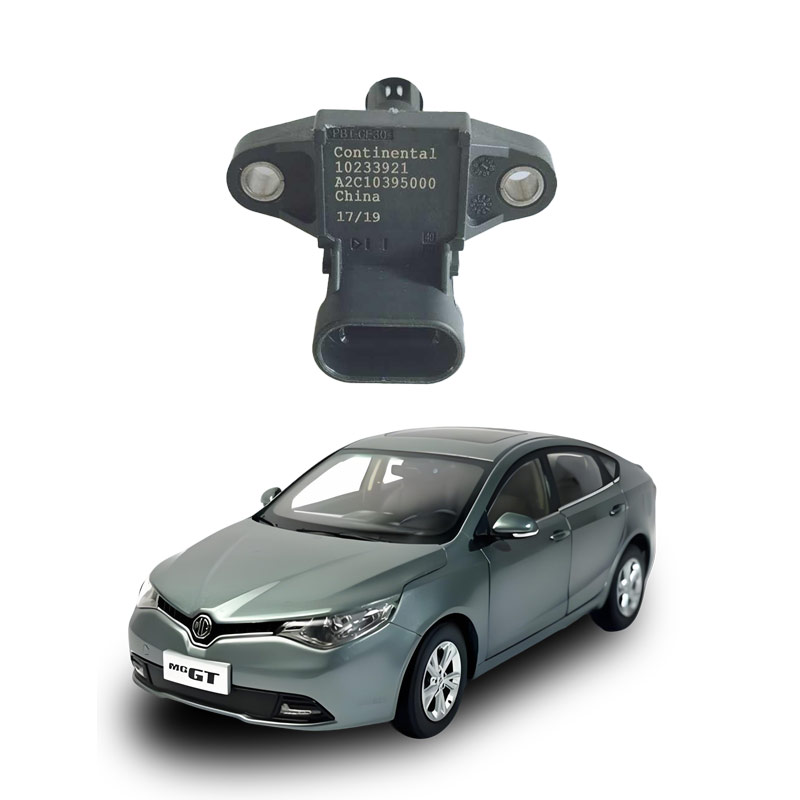

The intake pressure sensor (abbreviated as MAP sensor) is a key component of the D-type fuel injection system in electronic fuel injection engines, serving as the "pressure detective" of the engine. It constantly monitors the pressure changes in the intake system and provides crucial decision-making basis for the engine control unit (ECU).
It is connected to the intake manifold through a vacuum tube and can accurately capture the pressure fluctuations in the intake manifold under different operating conditions, converting them into electrical signals and transmitting them to the ECU. During vehicle acceleration, the intake pressure increases, and the sensor promptly sends a signal, which the ECU then increases the fuel injection volume to provide sufficient power for the engine; during deceleration, the intake pressure decreases, and the ECU reduces the fuel injection, avoiding fuel waste and improving fuel economy.
It can also assist the ECU in adjusting the ignition timing, allowing the mixture to burn fully, finding the optimal balance between power output and emission control. For engines with electronic valve control systems, the intake pressure sensor can also serve as a backup parameter for load signals, assisting in adjusting the opening time of the intake valve and further optimizing engine performance.
Failure Alert: The "Health Warning" of the Engine
If the intake pressure sensor fails, the engine's operational balance will be disrupted, triggering a series of abnormal symptoms, posing risks to vehicle performance and driving safety.
Start-up and idle instability sensor failures can cause the ECU to be unable to accurately determine the intake volume, resulting in a mismatch between fuel injection volume and intake volume. During cold start, the engine may require multiple attempts to ignite successfully, and the symptoms may slightly improve after warming up, but it may still experience immediate engine shutdown after starting. During the idle stage, the engine speed fluctuates significantly between 800-1000 rpm, even experiencing vibrations and stalling, similar to a cylinder miss, but checking the spark plugs and ignition coils shows normal results, which is likely caused by signal drift^.
Power and Fuel Consumption Imbalance During acceleration, the engine speed surges but the vehicle speed increases slowly, giving a "feeling of being out of gear", with a severely delayed power response. The power performance of some 1.6L models may even be worse than that of 1.0L models. This is because the sensor cannot promptly feedback the changes in intake pressure after the throttle is opened, and the ECU's fuel injection is delayed, resulting in a power gap. At the same time, the fault can cause the ECU to misjudge the intake volume, resulting in an imbalance in the mixture concentration, either too rich causing black smoke from the exhaust pipe and incomplete combustion, or too lean causing insufficient power. In either case, fuel consumption will significantly increase, and the fuel consumption of some vehicles can even soar from 8L/100km to 12L/100km^.
Fault Light Illumination and Potential Risks When the sensor signal deviation exceeds the threshold, the engine fault light (MIL) on the dashboard will illuminate. Using an OBD diagnostic tool, codes such as P0105 (sensor circuit failure) and P0106 (unreasonable signal) can usually be read. Approximately 60% of the faults are caused by sensor damage, and 40% are due to wiring issues. Ignoring these signals can lead to small faults evolving into major problems, and in severe cases, the vehicle may suddenly stall while driving, especially during deceleration or gear shifting, presenting significant safety hazards^.
Fault Traceback: "Strike" Caused by Multiple Factors
Intake pressure sensor failures are not caused by a single factor but are the result of multiple issues such as sensor itself, wiring, and vacuum hoses.
Internal circuit breakage or short circuit in the sensor will prevent the pressure signal from being converted and transmitted normally, like a channel cut in the information transfer station, and the ECU will not receive valid data^.
Abnormal output signals are also common faults. Normally, the signal should change sensitively with the intake manifold vacuum, and if the signal "lags behind", the ECU will adjust the fuel injection based on incorrect information, causing engine operation to be abnormal^. Furthermore, if the vacuum hose connecting the intake pressure sensor to the intake pipe becomes clogged or leaks, it will prevent the sensor from sensing the correct pressure signal, just like a "bridge" breaking and the information transmission being interrupted.
Precise Diagnosis: Restore the Sensor's Vision
When dealing with the failure of the intake pressure sensor, the following steps can be taken for precise troubleshooting: Firstly, use the diagnostic tool to read the fault code and preliminarily determine the direction of the fault. If a sensor-related fault code is displayed, check whether the vacuum hose is clogged or leaking, and whether the wiring is damaged or has poor contact. Secondly, perform performance testing on the sensor, unplug the sensor plug, turn on the ignition switch, and measure the voltage between the VCC terminal and the E2 terminal on the plug. Normally, it should be between 4.5 and 5.5V. If the voltage is abnormal, check the wiring from the ECU to the sensor or the ECU itself. Finally, use the replacement method. Replace the suspected faulty sensor with a normal one. If the fault disappears, it can be confirmed that the sensor is damaged.
Although the intake pressure sensor is small, it is crucial for the stable operation of the engine. Understanding its function, fault symptoms, and diagnostic methods can help car owners identify problems in time, avoiding small faults causing major losses and keeping the engine in the best condition at all times.
