Function of the air intake branch pipe gasket

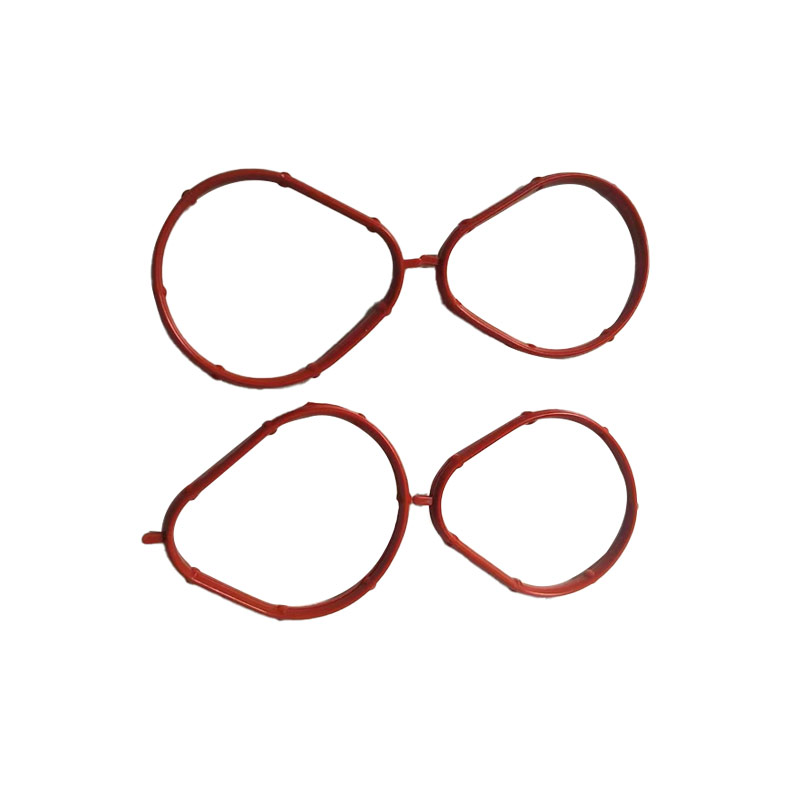

The intake manifold gasket (also known as the intake manifold gasket) is a crucial sealing component installed between the intake manifold and the cylinder head. Its main functions are as follows:
Preventing gas leakage: Ensuring that the air or combustible mixture in the intake system does not leak during distribution, maintaining the vacuum degree and air-fuel ratio required by the engine.
Isolating coolant and oil channels: In some designs, this gasket also needs to prevent coolant or oil from entering the intake channel to avoid contamination and engine overheating.
Ensuring combustion efficiency: By maintaining the integrity of the seal, it ensures that each cylinder receives a uniform and sufficient intake volume, thereby improving combustion efficiency and power output.
Common consequences of seal failure
If the intake manifold gasket is aged, deformed, or damaged, the following problems may occur:
Idle instability, poor acceleration: Due to vacuum leakage, the mixture is too thin and not fully combusted.
Increased fuel consumption: The engine compensates for insufficient intake by injecting more fuel.
Engine overheating: If the gasket also seals the cooling channel, coolant leakage reduces the cooling capacity.
Excessive exhaust emissions: Incomplete combustion leads to an increase in harmful substances such as carbon monoxide (CO) and nitrogen oxides (NOx).
Strange noises or vibrations: Such as "popping" air leakage sounds, or fluctuations in the speedometer pointer.
It is recommended to regularly inspect the sealing condition of the intake system, especially when the vehicle has a high mileage (such as over 6 years) or exhibits the above symptoms, and replace the seal gasket promptly to restore engine performance.
The intake manifold gasket (also known as the intake manifold gasket) is a key component in the engine used for sealing the connection between the intake manifold and the cylinder head. Its main function is to prevent air, vacuum, or coolant leakage, ensuring the normal operation of the engine's intake system. If this gasket fails, it will cause a series of performance problems.
Common fault symptoms
Decreased engine performance: Poor acceleration, insufficient power, unstable idle, even engine shutdown
Increased fuel consumption: Due to the imbalance of mixture ratio, the ECU will inject more fuel to compensate
Strange noises: Leakage in the intake system causes a "sizzling" or "blowing air" sound
Coolant leakage (in some designs): If the gasket also seals the cooling channel, coolant leakage may occur, reducing the cooling capacity
Excessive exhaust emissions: Incomplete combustion leads to an increase in harmful substances such as carbon monoxide (CO) and nitrogen oxides (NOx)
Engine fault light on: The ECU detects abnormal parameters such as intake pressure, air-fuel ratio, etc.
Typical fault causes
Gasket aging, high-temperature deformation or cracking
Incorrect installation or uneven bolt torque
Material failure due to long-term high-temperature operation of the engine
The intake manifold itself deforms, damaging the sealing surface
Diagnosis and treatment suggestions
Initial inspection
After starting the engine, spray soapy water or carburetor cleaning agent around the intake manifold and observe if bubbles form (indicating leakage)
Or use professional equipment such as a vacuum gauge or smoke tester to detect the leakage point
Common repair steps
Replace the intake manifold gasket (check if the sealing surface is flat)
For models such as Volkswagen Passat, also need to check if the intake flap motor, connecting rod, sensors are damaged (such as fault codes P2015, 008213)
The main causes of intake manifold gasket (also known as intake manifold gasket) failure can be summarized as the following categories:
Material aging and wear
Long-term high-temperature and high-pressure environment: The intake manifold gasket is exposed to high temperatures and frequent vibrations for a long time, rubber or composite materials are prone to aging and losing elasticity, resulting in seal failure.
Heat cycle fatigue: The repeated start-stop of the engine causes thermal expansion and contraction, which repeatedly exerts force on the gasket, eventually causing cracks or deformation.
Installation problems
Incorrect installation: such as bolts not being tightened to the standard torque, gaskets not being aligned, or using non-original/low-quality gaskets, may lead to poor sealing. Inconspicuous joint surface: The joint surface of the intake manifold or the cylinder head is deformed or contains impurities, which affects the proper adhesion of the gasket.
