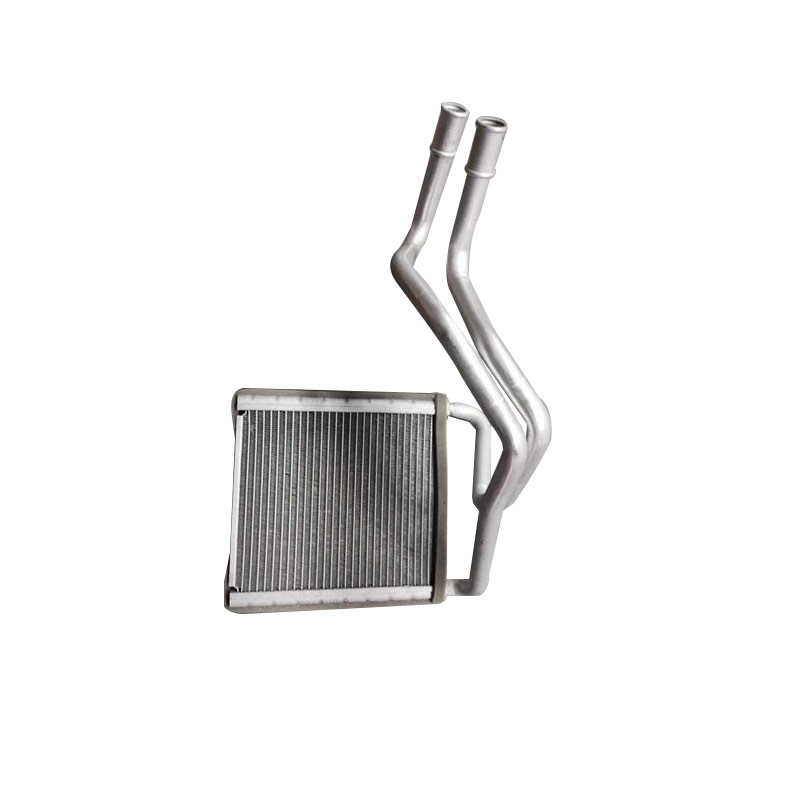

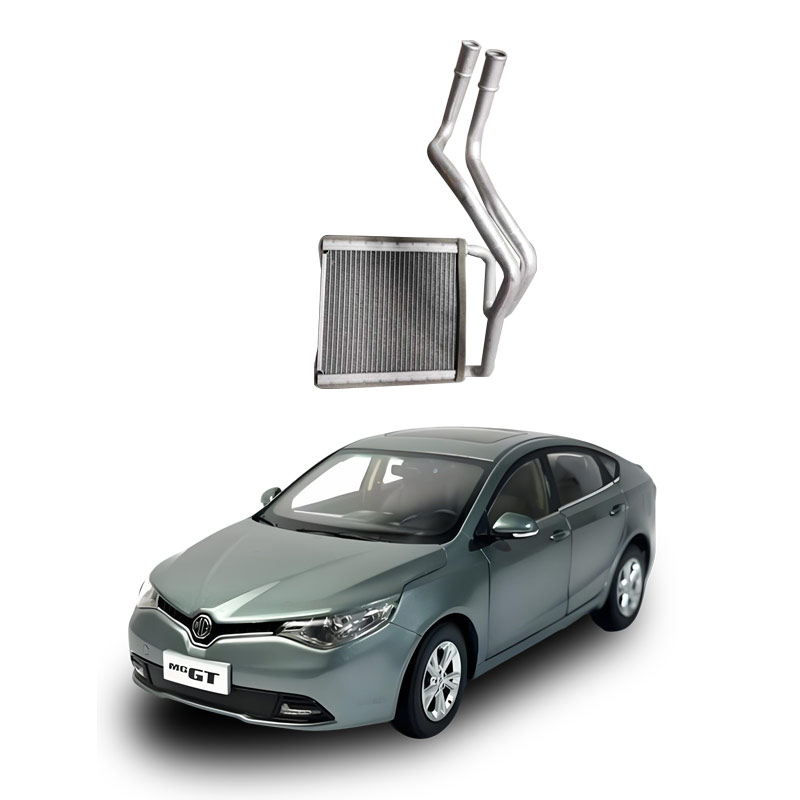

What is the automotive heating water box?
The automotive heating water box is the core heat exchange component in the automotive heating system. Its main function is to utilize the residual heat of the engine coolant to provide warmth for the interior of the vehicle and assist in deicing and dehumidifying, enhancing the comfort and safety of driving in winter.
Core functions
Heating inside the vehicle: Through the flow of hot engine coolant (typically around 90°C) through the internal pipes of the heating water box, the heat is transferred to the surrounding air, and then the blower sends the heated air into the cockpit to achieve rapid heating.
Defrosting and dehumidifying: After turning on the heating, it can significantly remove ice or fog from the front windshield within 2-5 minutes, ensuring clear driving vision.
Auxiliary engine temperature control: Participates in the cooling fluid circulation, assisting in heat dissipation in high-load conditions, helping to maintain the normal working temperature of the engine.
Brief description of the working principle
When the engine is running, the hot coolant flows out from the cylinder head and enters the heating water box through the pipes.
The coolant flows through the metal (such as aluminum or copper) or composite material pipes in the heating water box and releases heat.
The blower forces the external or internal circulating air to flow over the heated pipes and heat sinks, and the air is heated and sent into the cabin.
The cooled liquid returns to the engine through the outlet pipe to complete the circulation.
Common structures and materials
Core body: Mostly made of aluminum or copper to enhance heat conduction efficiency.
Water chamber: Some models use PP plastic (polypropylene) to balance lightweight and corrosion resistance.
Location: Usually located under the dashboard or in the engine compartment, close to the air conditioning system.
Fault manifestations and maintenance suggestions
Common faults:
Insufficient heating or low air temperature
Odor, water mist, or coolant leakage traces in the cabin
Abnormally high engine temperature (due to decreased heat exchange efficiency)
Daily maintenance points:
Regularly check the coolant level and quality to avoid blockage by scale in the pipes
Check if the water pipe joints are loose or leaking
Clean the dust on the surface of the heating water box to ensure smooth air circulation
If any abnormalities are found, repair them promptly to prevent damage to the engine cooling system
Note: The heating water box is different from the expansion water box - the latter is used to regulate the pressure of the cooling system and accommodate the expansion and contraction of the coolant, while the former is specifically used for heating inside the vehicle.
The automotive heating water box is the core component of the automotive heating system. It mainly utilizes the residual heat of the engine coolant to provide warmth for the interior of the vehicle and ensure driving safety. Its core functions are as follows:
Main functions
Heating inside the vehicle: Through heat exchange, the heat from the engine coolant (around 90°C) is transferred to the air, and then the blower blows the heated air into the cabin, increasing the interior temperature and enhancing passenger comfort.
Defrosting and dehumidifying: Quickly heating the front windshield to eliminate frost or fog caused by temperature differences, ensuring clear vision. Tests show that after turning on the heating for 5 minutes, the average temperature of the front windshield increases by 8-12°C, eliminating over 80% of frost.
Auxiliary engine thermal management: Participates in the cooling fluid circulation, assisting in heat dissipation in high-load conditions, helping to maintain the normal working temperature of the engine.
Brief description of the working principle
When the engine is running, the hot coolant flows through the heating water box.
The blower blows the air over the heated pipes (usually aluminum/copper spiral tubes) in the heating water box.
The air is heated and sent into the cabin through the outlet, achieving heating or deicing.
Usage suggestions
In winter, it is recommended to set the temperature to 22-24°C, using the "front windshield + foot" air supply mode to balance clear vision and foot comfort.
During daily maintenance, replace the antifreeze every 2 years or 40,000 kilometers to avoid scale blockage in the heating water box.
If there is leakage or severe blockage, repair it promptly to prevent engine overheating or even cylinder seizure.
Note: The heating water box is commonly called the "small water tank", located under the dashboard, connected to the engine cooling system, and belongs to a heat exchanger.
