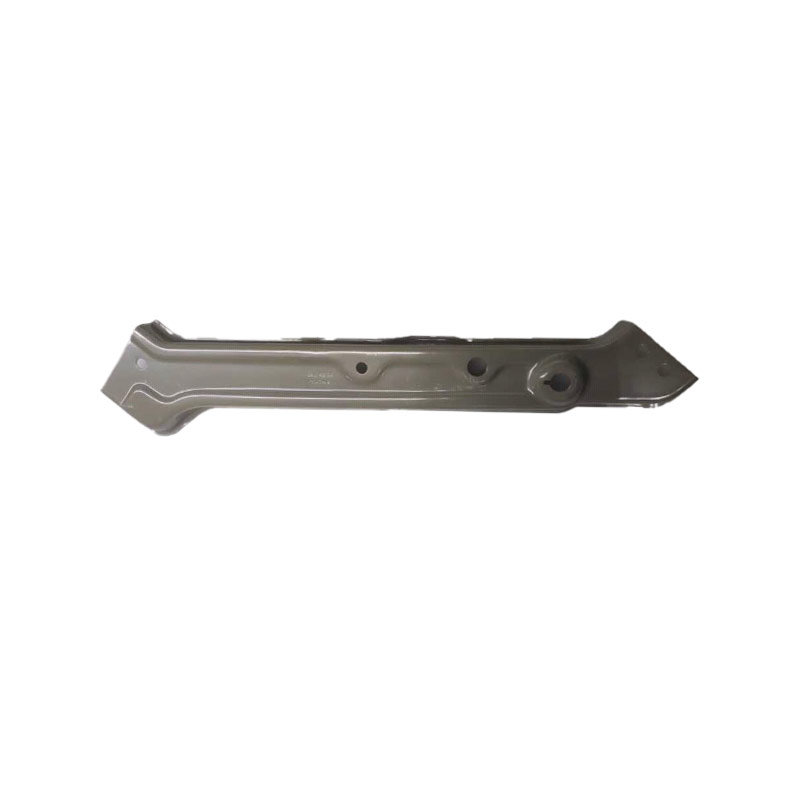

A Comprehensive Analysis of the Causes of Faults in the Car Headlight Frame
The headlight frame of a car, as an essential component of the front lighting system, plays a crucial role in fixing the lamps, ensuring stable optical performance, and coordinating the operation of the mechanical structure. Once the frame malfunctions, it not only affects the lighting effect of the vehicle but also may trigger a series of chain reactions, threatening driving safety. This article will conduct a detailed analysis of the causes of faults in the car headlight frame from five aspects: mechanical stress, environmental erosion, assembly process, material aging, and the influence of related components.
1. Long-term mechanical stress
During vehicle operation, the headlight frame is always in a complex mechanical environment. Forces from road vibrations, engine operation-induced vibrations, and inertial forces during acceleration and deceleration constantly act on the frame. In urban traffic conditions, frequent starts and stops, as well as manhole cover impacts, cause the frame to bear repeated impacts; while on non-paved roads, intense vibrations place a huge load on the stress concentration areas of the frame.
Take the frame resonance as an example. If the natural frequency of the headlight frame is close to the vibration frequency of the vehicle, resonance will occur. According to the SAE J2380 standard, the vehicle must undergo a 50Hz - 2000Hz swept-frequency vibration test with an amplitude of 3.5mm. Long-term in a resonant state, the weak parts of the frame, such as the weld points of the brackets and the bolt connection points, will gradually develop fatigue cracks. As the mileage increases, the cracks will expand, eventually leading to frame fracture. Moreover, even if the vehicle suffers a minor collision, the headlight frame may not be directly damaged, but the internal stress distribution will change, laying the groundwork for faults, and it may suddenly deform or fracture during subsequent driving.
2. Harsh environmental erosion
The headlight frame is exposed to the natural environment and is constantly subjected to various harsh conditions. In rainy and snowy weather, rainwater and snowwater will seep into the gaps of the frame. If the anti-rust treatment of the frame is inadequate, the metal frame is prone to rusting. Rusting will gradually damage the metal structure of the frame, reducing its strength and rigidity, and making the frame prone to deformation or fracture under normal stress.
In addition to water erosion, air pollutants also cause damage to the frame. In industrialized areas, acidic gases such as sulfur dioxide and nitrogen oxides, combined with water vapor, form acid rain, accelerating the corrosion process of the frame. In coastal areas, high salt content in the air causes the rusting speed of the metal frame to increase significantly. For plastic headlight frames, ultraviolet radiation is the main threat. Long-term exposure to sunlight causes the plastic to age, become brittle, and crack, resulting in a decline in the mechanical performance of the frame.
3. Assembly process defects
The assembly quality of the headlight frame directly affects its service life. During the production process, if there are defects in the assembly process, it is easy for the frame to malfunction at the initial stage of use. For example, if the torque of the bolt connection is insufficient, the frame will gradually loosen during vehicle operation, causing vibration and abnormal noise, and eventually leading to frame deformation; while if the torque is too high, it may damage the bolt or the threads of the frame, also affecting the firmness of the connection.
In addition, positioning deviations during assembly can also pose a threat to the frame. If the installation position of the headlight frame and the vehicle body has deviations, the frame will generate additional stress under force, and over time, it will cause the frame to deform. In assembly lines, if workers do not operate properly or the assembly equipment has insufficient precision, such problems may occur. At the same time, unreasonable clearance between components will also affect the stability of the frame, such as the frame being too tight or too loose in the connection with the lamp cover or the lamp bulb seat, which will generate abnormal stress during vehicle operation and accelerate the damage of the frame.
4. Material aging
The materials used for the front lamp frame gradually deteriorate over time, leading to a decline in its mechanical properties. For metal frame materials, prolonged stress and environmental erosion cause changes in the internal crystal structure, resulting in fatigue aging and a decrease in strength and toughness. For plastic frame materials, under the influence of factors such as temperature changes and ultraviolet radiation, chemical changes such as molecular chain breakage and cross-linking occur, causing the plastic to become brittle, increase in hardness, and decrease in toughness.
Taking the problem caused by thermal management failure as an example, if the cooling system of the front lamp fails, causing the LED junction temperature to exceed the limit, the excessively high temperature will be transmitted to the frame, affecting the performance of the frame material. For plastic frames, high temperatures accelerate the aging process and shorten the service life; for metal frames, high temperatures may cause changes in the metal's microstructure, reducing its strength. Moreover, if there are defects in the material during production, such as air holes in the metal frame or cracks, and impurities in the plastic frame, they will accelerate the aging and damage of the material.
V. Impact of Associated Component Failures
The front lamp system is an integrated whole, with the frame closely associated with other components. The failure of other components may indirectly cause problems with the frame. When the lamp holder becomes loose, the unstable contact between the lamp and the circuit will generate abnormal heat and vibration, which will be transmitted to the front lamp frame. Over time, this will increase the local stress of the frame, causing deformation or damage.
Lamp housing loosening is also a common problem. It will affect the refraction and scattering of light, and during vehicle operation, the shaking of the lamp housing will exert additional impact force on the frame. In addition, control circuit failures causing frequent flashing of lights or abnormal changes in brightness will cause the frame to bear unstable current and heat, accelerating the aging and damage of the frame. For example, a failure of the dimming switch will cause the high beam and low beam lights to frequently switch, and the frequent changes in current will generate additional heat at the connection points inside the frame, affecting the performance of the frame.
