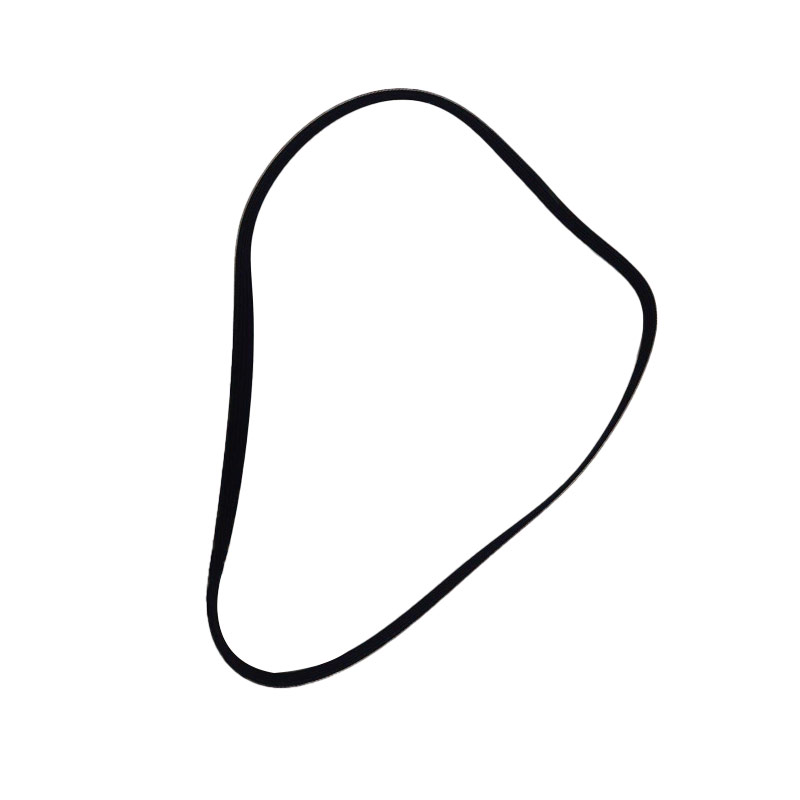

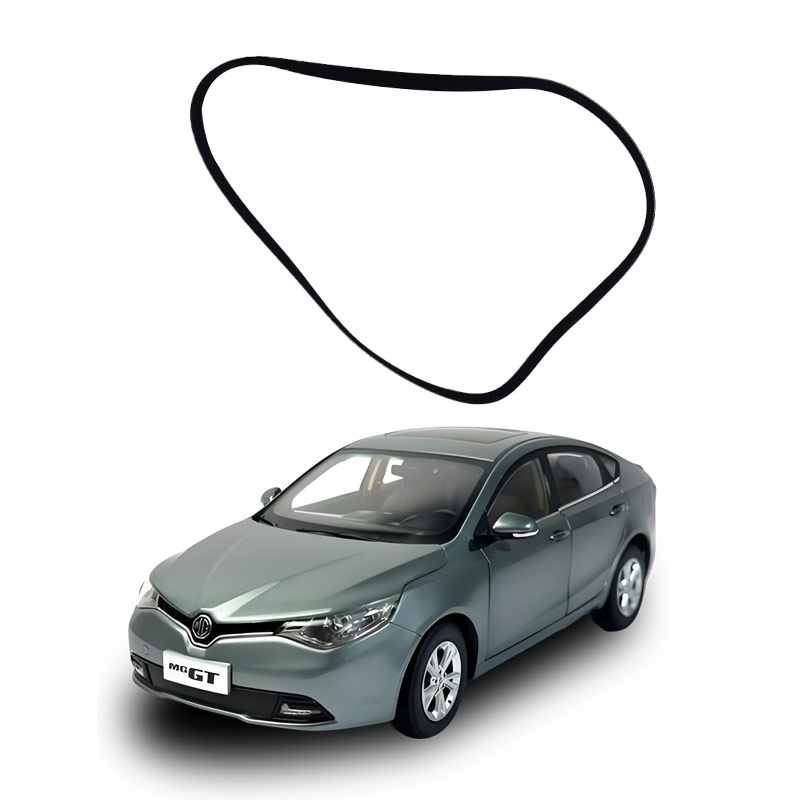

The function of the belt in the car generator
The main function of the car generator belt is to transfer the engine's power to the generator, enabling it to generate electricity and supply power to the vehicle's electrical system.
Driving the generator to generate electricity: When the engine is running, the crankshaft drives the generator to rotate through the belt, generating electricity to supply the vehicle's equipment (such as lights, audio, sensors) and charging the battery.
Driving other key accessories: The same belt usually also drives the air conditioning compressor (for cooling/heating), the water pump (to maintain the engine's cooling cycle), and the power assist pump (to assist steering) to ensure the normal operation of the entire vehicle.
Car generator belt failure is a common but urgent issue that requires prompt repair. If not repaired in time, it may cause the vehicle to stall, failure of the electrical system, and even damage to the engine. The following are key information based on authoritative public data:
Common fault manifestations:
The dashboard warning light is on (such as the battery or charging system indicator light)
Difficulty starting the engine or sudden engine shutdown during driving
Abnormal noise from the belt: A "squeaking" or "grinding" sound is heard when the engine is warm, especially when accelerating or under heavy load
Power loss, increased fuel consumption, high water temperature
Dim lights, abnormal operation of electronic equipment
Main fault causes:
Belt aging or wear: The rubber becomes hard, cracks, and peels off. Over time, the friction force decreases, causing slippage
Tension wheel failure: Insufficient elasticity or damaged bearings, unable to maintain the normal tension of the belt
Slippage of the belt pulley or damaged buffer rubber: If the middle rubber layer of the crankshaft belt pulley falls off, the inner and outer pulleys move relative to each other
Accessory bearings jammed or loose: Faults in the air conditioning compressor, water pump, etc., increase the load on the belt
Improper installation or incorrect alignment: Causes uneven force on the belt, accelerating wear
Solutions:
Stop the vehicle immediately for inspection: If the above symptoms are found, especially accompanied by abnormal noise or warning light activation, stop at a safe location for inspection as soon as possible.
Initial troubleshooting:
Check if the belt has cracks, breaks, or excessive wear;
Observe if the tension wheel rotates smoothly and has any abnormal noise;
Confirm the belt's tension (normally, it should be pressed down about 1 cm).
Temporary handling suggestions:
If it is only a minor abnormal noise and there is no risk of breakage, you can clean the contact surface between the belt and the belt pulley (using 100-grit sandpaper lightly sanding);
Avoid using high-power electrical appliances for a long time (such as air conditioning) to prevent the generator from overloading.
Must-replacement situations:
Visible cracks, delamination, or breaks in the belt;
Stuck bearings or abnormal noise in the tension wheel or belt pulley;
Abnormal output voltage of the generator (at idle, it should be 13.8–14.5V).
Prevention and maintenance suggestions:
Regular replacement cycle: Generally, replace once every 5–8 thousand kilometers, and some models can reach 10 thousand kilometers;
Check simultaneously during maintenance: It is recommended to replace the tension wheel, idler wheel, and belt at the same time when replacing the belt, as their lifespans are similar;
Use original or high-quality parts: Poor-quality belts are prone to stretching and deformation, accelerating faults;
Pay attention to extreme environments: Shorten the inspection cycle in hot and dusty areas.
Important reminder: If the belt has broken, do not attempt to start the engine again to avoid causing more serious damage (such as interference with the timing system, burning out the generator, etc.).
It is recommended to immediately contact a professional repair agency for towing.
If further diagnosis is needed, you can use a multimeter to measure the battery voltage (it should be ≥ 13.8V when the engine is running), or go to a professional repair point for a comprehensive charging system inspection.
