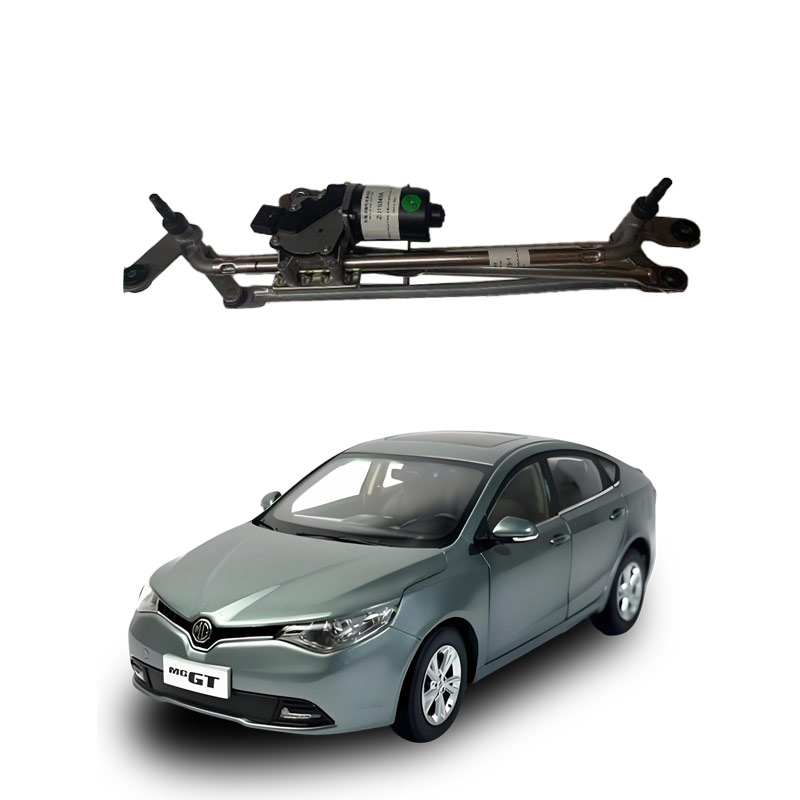

The function of the front windshield wiper assembly of the car
The core function of the front windshield wiper assembly of a car is to remove rain, snow, dust, and other contaminants from the windshield, ensuring that the driver has a clear view and enhancing driving safety.
This component is an important part of the car's active safety system. Its specific functions and features are as follows:
Clear obstacles: When there is rain, snow, sand, or dirty glass, the scraper swings back and forth to remove the obstructions blocking the view.
Maintain clear vision: Regardless of day or night, light rain or heavy rain, it can maintain the transparency of the front windshield and reduce the driving blind zone.
Adapt to various environments: It can work normally within a temperature range of -30°C to 80°C and has the ability to resist acid, alkali, and salt corrosion.
Support intelligent control: Some models are equipped with rain-sensing automatic adjustment, which automatically adjusts the scraping frequency according to the rain intensity.
Main components
Wiper blade: Contacts the glass directly and is responsible for physical cleaning.
Wiper arm: Supports and presses the wiper blade to ensure a good fit.
Wiper connecting rod: Transmits power and converts rotational motion into oscillation.
Wiper motor: Provides the power source, usually a DC permanent magnet motor.
Reduction mechanism (such as worm gear): Reduces speed and increases torque.
Control switch: Located near the steering wheel, used to switch gears (low speed, high speed, intermittent, etc.).
Spraying system (partially integrated): Works in coordination with water spraying to clean the glass.
Suggestions for use
Avoid dry scraping to prevent scratching the glass or accelerating the aging of the rubber strip.
It is recommended to check or replace the wiper blade annually to ensure the scraping effect.
If there are water marks, jittering, abnormal noise, or missed scraping, it is necessary to repair or replace it promptly.
Car front wiper assembly failures may be caused by various reasons. Based on the current time (March 2026) and the latest authoritative public information, the following are the common failure causes and corresponding troubleshooting suggestions:
Common failure causes
Fuse blown: The protective device in the wiper circuit, when the current is too high, will automatically blow the fuse, causing the motor to have no power and not work.
Wiper motor failure: The carbon brushes in the motor are worn out, the coil is burned out, or the rotor is damaged, which will cause the wiper to completely fail to operate.
Connecting rod mechanism problem: The connecting rod is deformed, dislocated, stuck, or the joint ， preventing the power from being transmitted to the wiper arm.
Wiper blade aging or damage： The rubber strip hardens， cracks， or is severely worn， affecting the scraping effect， and in severe cases， it may get stuck and cause the motor to overload.
Control switch or combination switch failure： The contact of the steering wheel right lever is not good or the rebound is weak， resulting in the signal not being transmitted to the motor.
Line failure： The wires are loose， corroded， or short-circuited， and professional equipment is required for detection.
Foreign object jamming： Leaves， ice， frost， sand， etc.， are stuck between the wiper arm or the glass， causing mechanical jamming.
Recommended troubleshooting steps (in order of priority)
Check if the windshield washer fluid is sufficient： Especially in winter， use a freeze-resistant type (such as -25°C)， to avoid pipe freezing.
Check the fuse： Turn off the power， find the fuse box on the driver's side， and check if the 15A or so wiper-specific fuse is blown.
Observe the condition of the wiper blade： If the rubber strip is aging， or has obvious wear， it is recommended to replace it.
Manually test if the connecting rod is flexible： Open the engine compartment cover and check if the connecting rod of the wiper arm is dislocated or stuck.
Listen to the motor response： Turn on the water spraying or wiper function， and listen near the left front wheel for a "buzzing" sound - no sound may indicate a motor or circuit failure.
Clear the nozzle and glass： Use a large-headed pin to horizontally clear the nozzle hole， and use a neutral cleaner to wipe the windshield wiper film.
When should professional repair be sought？
When the following situations occur， it is recommended to immediately go to a 4S store or a regular auto repair shop：
The motor has no response and the voltage is normal (replace the motor)
The connecting rod is severely deformed or broken Control module or wiring fault (related to circuit diagnosis)
After self-examination, the function still cannot be restored
Safety reminder: The wiper failure poses extremely high risks during rain or when driving at high speed. If it cannot be quickly repaired, please turn on the hazard lights, pull over to the side of the road and contact for rescue.
