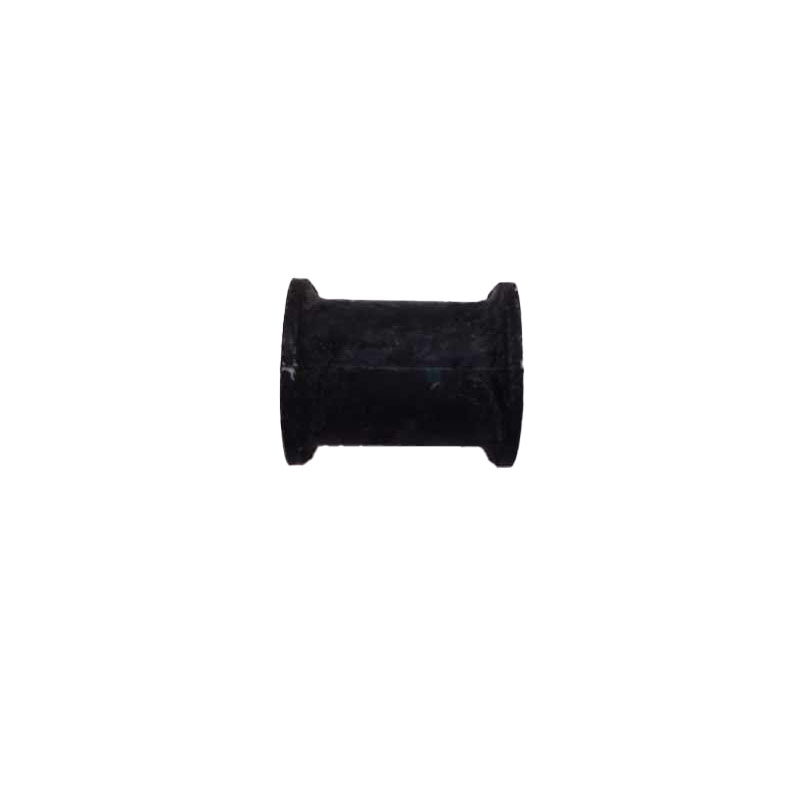

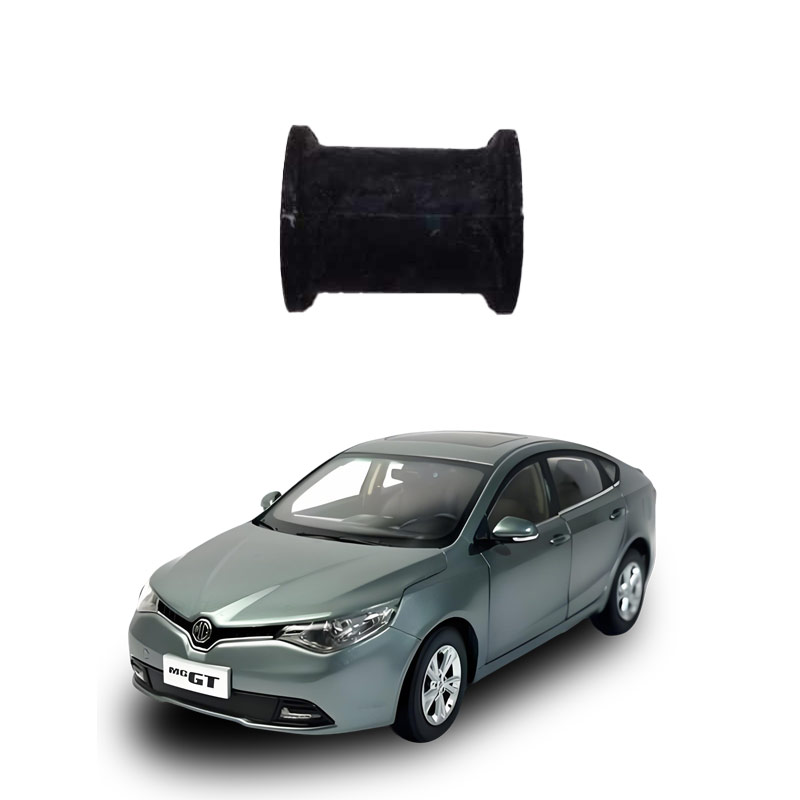

What is the front stabilizer bar bushing of a car?
The front stabilizer bar bushing of a car is a crucial elastic component that connects the front longitudinal stabilizer bar (also known as anti-roll bar or balance bar) to the subframe or the body of the vehicle. It is a "flexible joint" in the chassis suspension system.
Main functions
Shock absorption and vibration reduction: Absorbing the impact from the road surface and the vibrations generated by the movement of the stabilizer bar, enhancing the ride comfort.
Noise reduction: Through the elastic property of rubber, absorbing the abnormal sounds (such as "clunking" or "thud") produced when the stabilizer bar moves.
Maintaining handling stability: Ensuring that the stabilizer bar can effectively suppress the vehicle's side roll during turns, maintaining clear steering response and strong chassis support.
Protecting other components: Reducing the wear or damage to other parts of the suspension system caused by long-term vibration and impact.
Common types and materials
Rubber bushing: The most common type, with low cost and good NVH (Noise, Vibration and Harshness) performance, but prone to aging, cracking, especially becoming harder in low temperatures.
Polyurethane bushing: With better wear resistance and compressive strength, often used in high-performance models or modification scenarios.
Powder metallurgy bushing: With a metal base that has micropores for oil absorption, featuring self-lubrication, high wear resistance, and high-temperature resistance, with long service life and consistent response, suitable for high-load conditions.
Signs of failure (indications for replacement)
When driving over Speed bump or bumpy roads， the chassis emits abnormal sounds (such as "clunking" or "thud" sounds)；
During turns， the sense of side roll becomes significantly stronger， and the feedback from the steering wheel becomes less clear；
The bushing shows cracks， deformation， hardening or detachment.
Replacement suggestion： If any of the above issues are found， especially in winter or when driving conditions are poor， it is necessary to replace the original factory or high-quality aftermarket parts in time to restore the chassis handling quality and safety.
Front stabilizer bar bushing (also known as rubber sleeve) is a crucial rubber component in the suspension system， mainly serving to fix the stabilizer bar， buffer stress， reduce vehicle side roll， and enhance driving stability and handling performance. Once damaged， it will cause a series of obvious symptoms and safety hazards.
Common failure manifestations
Abnormal chassis sounds： Especially when driving overSpeed bump or bumpy roads， abnormal sounds such as "clunking" or "thud" can be heard from the front wheels on both sides.
Reduced driving stability：
During turns， the sense of side roll becomes significantly stronger；
The feedback from the steering wheel becomes less sensitive；
There may be slight deviation， requiring frequent correction of the direction.
Physical wear signs：
The rubber sleeve shows cracks， deformation， or displacement. The grease leaks out and there is an excessive clearance in the ball joint.
Related components affected:
It causes inaccurate four-wheel alignment;
It accelerates the wear of components such as the ball joint of the steering tie rod and the rubber sleeve of the support arm;
It may cause abnormal tire wear (such as single-sided tire wear).
Is replacement necessary?
It must be replaced in time. The reasons are as follows:
Safety risk: The failure of the rubber sleeve will reduce the anti-roll ability, and it is prone to loss of control during high-speed lane changing or emergency avoidance;
Chain damage: Not replacing for a long time will accelerate the wear of other chassis components and increase maintenance costs;
According to the data from 2025 Vehicle Quality Network, 65% of vehicles with a 3-year age have the problem of aging stabilizer bar rubber sleeve, which has become the third-largest complaint issue of the chassis.
Maintenance suggestion:
Check timing:
It is recommended to lift the vehicle and check after every 30,000 kilometers or after frequent driving in harsh conditions;
In winter, rubber is prone to hardening and slight cracks should also be replaced in advance.
Replacement plan:
If only the rubber sleeve is cracked and there is no excessive clearance: It is possible to replace the rubber sleeve alone, which takes about 30 minutes;
If the ball joint is loose or there is obvious abnormal noise: The entire tie rod needs to be replaced;
It is strongly recommended to use original factory or well-known brand parts to ensure performance and lifespan.
Professional operation:
Replacement requires professional tools and techniques. It is not recommended to handle it yourself;
After replacement, perform four-wheel alignment to restore the normal control of the vehicle.
If further confirmation of the fault is needed, you can refer to the following 3-step self-check method (from the 2025 actual measurement suggestion):
Listen: Is there any abnormal noise when passing over a speed bump;
Look: Check if the rubber sleeve is cracked or deformed;
Test: Is the vehicle deviating in a straight line, and is the turning oversteer too severe.
If the symptoms are obvious, please go to a regular repair shop or 4S store for maintenance as soon as possible.
