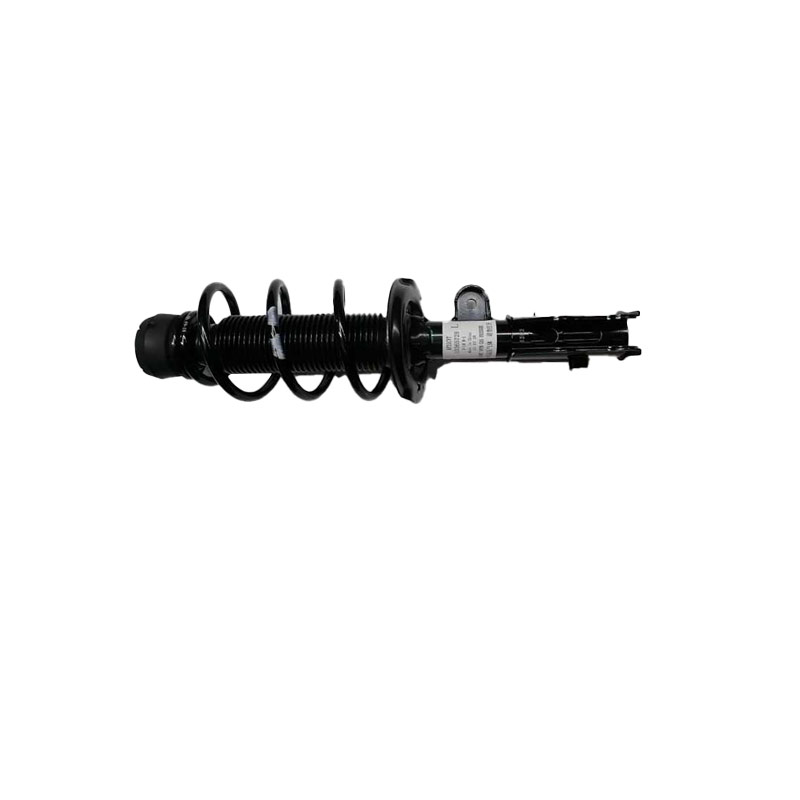

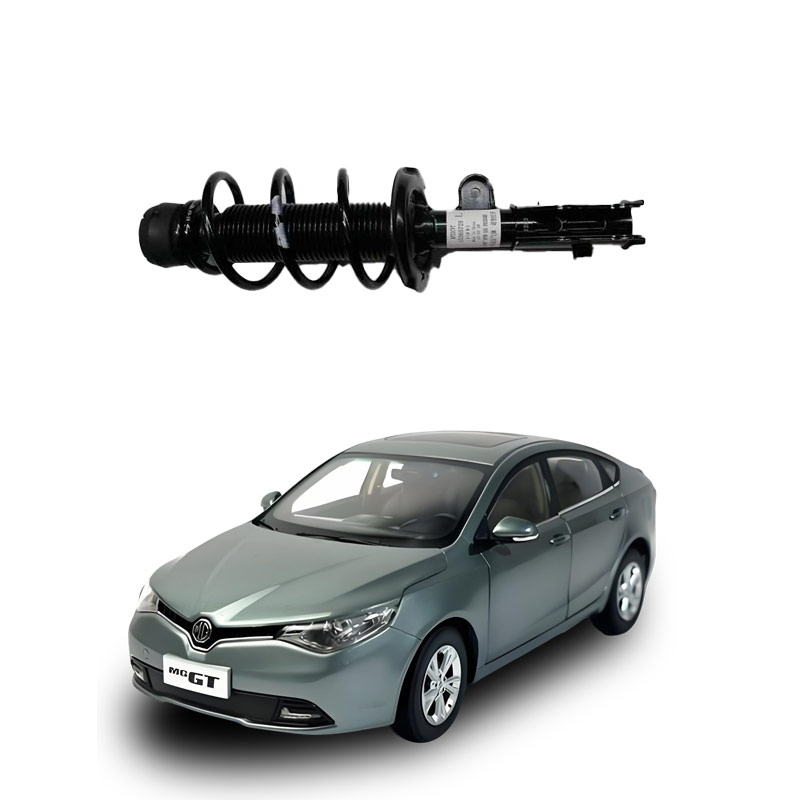

The function of the front shock absorber assembly of the car
The front shock absorber assembly is a key component of the suspension system, and its core function is to enhance driving comfort and handling stability. The specific functions are as follows:
Suppressing spring rebound: When the vehicle passes over bumpy road surfaces, the helical spring absorbs the impact energy, but it will cause repeated bouncing; the shock absorber quickly attenuates this vibration through damping, allowing the vehicle body to return to a stable state .
Absorbing road shock: Converting the vibration energy from the road into heat energy (through the flow of internal oil in the throttle hole generating damping), reducing the impact transmitted to the vehicle body and passengers .
Maintaining tire adhesion: Effectively controlling wheel vibrations, preventing tires from detaching from the ground during bumps, ensuring grip, and thereby improving braking performance and steering control .
Supporting the vehicle structure: As a suspension pillar (especially in McPherson suspension), the front shock absorber assembly also bears part of the vehicle load and connects the steering system .
Extending component lifespan: Reducing vibration wear on the vehicle body, suspension, and other related components, protecting cargo, and lowering long-term maintenance costs .
In addition, the front shock absorber assembly typically includes components such as the shock absorber body, spring, dust cover, buffer block, bearing, top rubber, and nuts, and each component works together to achieve the above functions .
If the assembly leaks oil, the rubber ages, or the damping fails, it will significantly affect driving safety and comfort. It is recommended to check regularly and replace in time .
The failure of the front shock absorber assembly will significantly affect driving safety and comfort. According to the latest and authoritative public information as of March 2026, the typical failure manifestations are as follows:
Main failure manifestations
Obvious abnormal noise
When passing over speed bumps or potholes, it emits "thump", "clang", or "squeak" sounds, mostly due to worn piston rods, blocked bottom valves, or aging top rubber .
Hydraulic oil leakage
The shock absorber housing shows oil stains, oil droplets, or even "oil column" spraying, which is a serious failure signal; slight leakage can be temporarily used but requires close observation .
Significant residual vibrations of the vehicle body
After the wheels leave the bump, the vehicle body continues to float up and down for more than 3 seconds, the steering wheel or seat is visibly shaking, especially at 40–60 km/h or at high speeds .
Abnormal tire wear
Single-sided wear, cup-shaped wear, or feather-like wear occurs, due to the failure of the shock absorber causing uneven tire ground pressure .
Reduced braking performance
The braking distance increases by 4–6 meters (at a speed of 100 km/h), ABS is prone to triggering, and the risk of braking deviation on slippery roads increases significantly .
Poor handling performance
Steering is heavy, unstable, and during high-speed turns, the side roll increases, and the steering wheel does not return properly .
Abnormal temperature
After normal driving, the shock absorber housing should be warm (about 50–70°C); if it feels cold, it indicates that the damping has failed .
Abnormal pressing test
After pressing the vehicle head and releasing it, the vehicle should rebound 1–2 times before stabilizing; if it oscillates more than 3 times repeatedly, it indicates a significant decline in shock absorption effect.
Handling suggestions
Immediately stop and repair: If there is severe oil leakage, obvious abnormal noise accompanied by vehicle loss of control, stop immediately for maintenance .
Professional inspection: Go to a regular repair shop or 4S store, through visual inspection, pressing test, four-wheel alignment, etc., for comprehensive judgment.
Replacement principle:
It is recommended to replace in pairs (even if only one side is faulty), to avoid affecting stability due to left-right damping differences .
After replacement， it is necessary to perform four-wheel alignment： The replacement of the shock absorber assembly will change the geometric parameters of the suspension， and without calibration， it is easy to cause tire wear unevenly and steering wheel deviation .
Note： Some abnormal noises in winter (such as "clicking" sounds when turning) may be caused by low-temperature hydraulic oil thickening or top rubber hardening， which can be relieved when the temperature rises， and there is no need to replace immediately .
