What is the front suspension rubber bearing of a car?

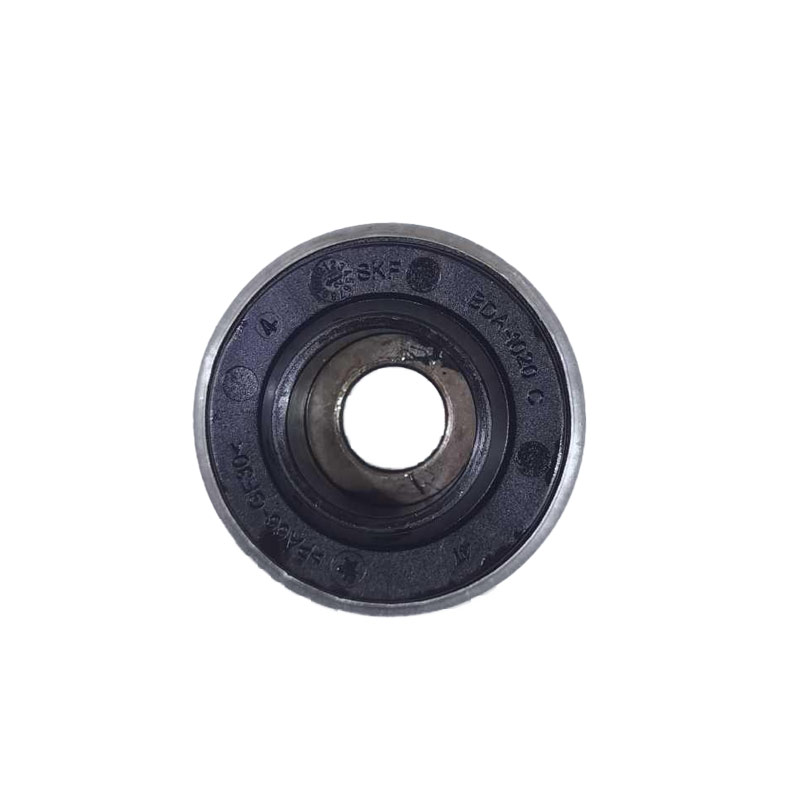

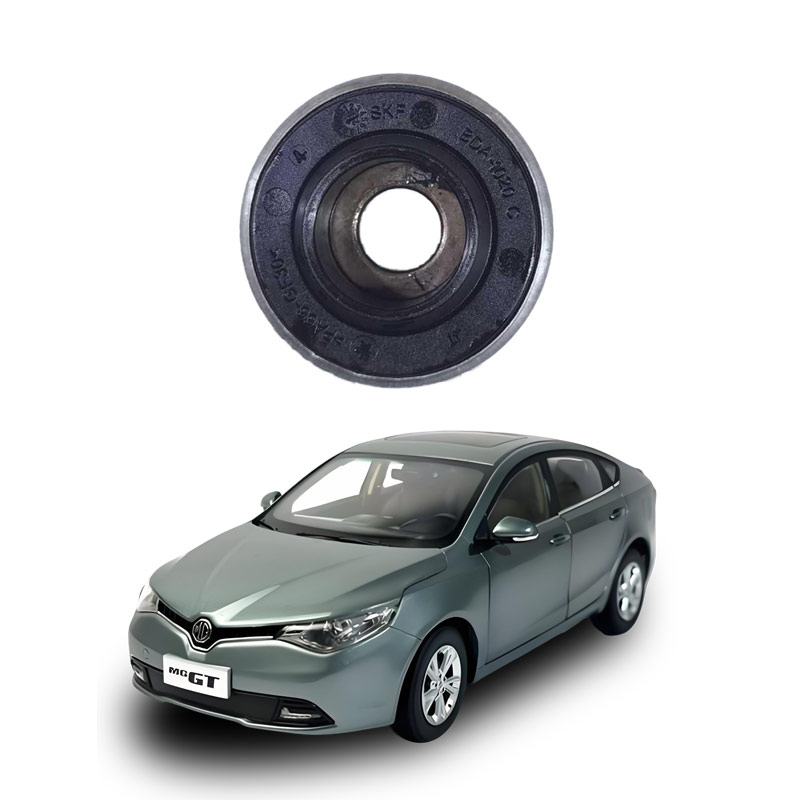

The front top rubber bearing of a car (also known as "front shock absorber upper seat rubber bearing" or "front top rubber") is a crucial component installed at the top of the shock absorber, connecting the shock absorber to the top of the vehicle frame. It is mainly composed of a rubber layer and a metal framework, and some of its structures also incorporate a flat bearing (also known as a steering flat bearing).
Core functions
Buffering and shock absorption: Absorbing and reducing the impact of the road surface, thereby minimizing the direct transmission of vibrations to the vehicle body, and enhancing ride comfort .
Allowing steering rotation: The built-in flat bearing enables the shock absorber to rotate slightly during steering, ensuring smooth steering and reducing friction .
Noise reduction and sound insulation: The rubber material effectively isolates high-frequency noises generated by tire contact with the ground, and some tests have shown that it can reduce road noise by 4–6 decibels .
Protecting the suspension structure: Avoiding hard impacts between metal parts and prolonging the lifespan of components such as the shock absorber and the top bolts .
Common fault phenomena
When this component ages, cracks, or wears out, the following symptoms may occur:
When passing over speed bumps or potholes, the chassis may emit "thump" or "creaking" sounds ;
The steering wheel shakes, is difficult to return to the center, or slightly deviates ;
The chassis feels "weak" or "loose", and the handling stability decreases ;
During high-speed lane changes, the vehicle responds sluggishly .
Replacement suggestions
It is recommended to replace them in pairs: Usually, both the left and right front wheels are replaced simultaneously to maintain the consistency of the suspension.
It is recommended to replace the entire set: Including the top rubber, flat bearing, and dust cover, to ensure performance compatibility .
Suitable for original factory specifications: Different models and years require specific models; non-standard parts are not applicable .
The front top rubber bearing of a car (also known as "shock absorber upper seat rubber bearing" or "front top rubber") is a key connection component in the suspension system, located between the shock absorber and the vehicle body. It is mainly composed of a rubber layer, a metal framework, and a flat bearing. Its functions can be summarized as follows:
Buffering and shock absorption: Absorbing and reducing the impact of the road surface, especially when passing over speed bumps or potholes, minimizing the transmission of vibrations to the vehicle body, and enhancing ride comfort .
Support and positioning: As the installation base of the shock absorber, it bears the vertical load of the vehicle body and precisely fixes the shock absorber and the steering knuckle at the geometric angle, ensuring the normal operation of the suspension system .
Steering assistance: The built-in flat bearing allows the shock absorber to rotate synchronously with the wheels, reducing the shear force during steering and making the steering wheel more smooth and precise .
Noise reduction and sound insulation: The rubber layer effectively isolates high-frequency noises generated by tire contact with the ground, and some tests have shown that it can reduce interior noise by approximately 4–6 decibels .
Suppressing oscillation: Limiting the lateral oscillation of the shock absorber during steering or cornering, preventing the increase in steering wheel deflection; after aging, the oscillation may increase from 5mm to over 15mm .
Protecting the structure: As the last buffer when the shock absorber reaches its limit (such as hitting the bottom), it prevents "clunking" sounds and damage to the shock absorber, wheel hub, and other components .
Note: Although the top rubber and flat bearing are often integrated, they have different functions - the top rubber focuses on buffering and sound insulation, while the flat bearing focuses on support and rotation; they work together and are indispensable .
When symptoms such as chassis noise (such as "clunking" sounds) occur, it usually indicates that the front top rubber or flat bearing has aged and is damaged, and timely replacement is necessary to ensure driving safety and comfort .
