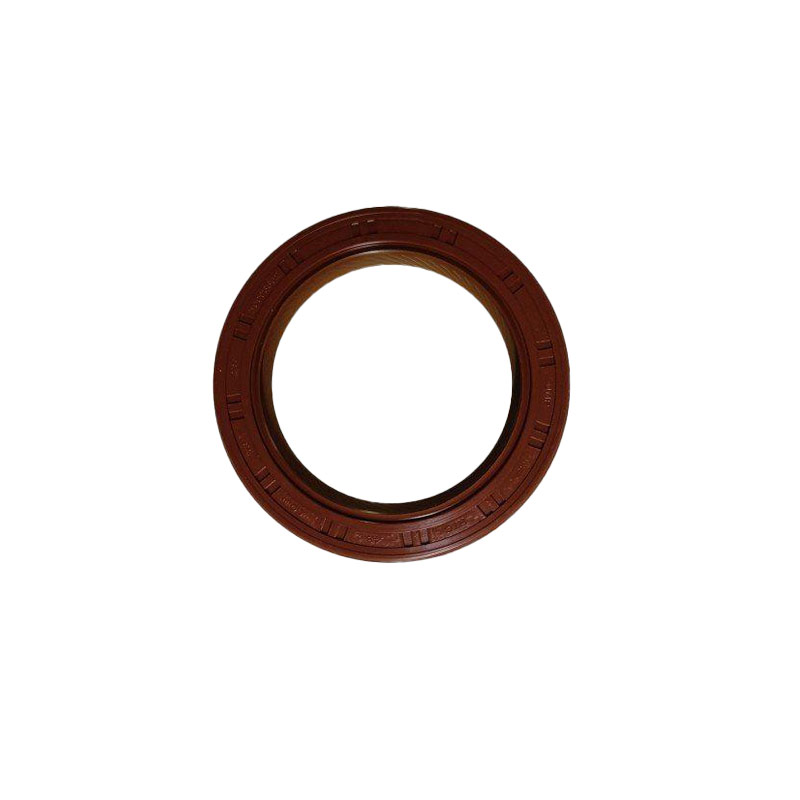

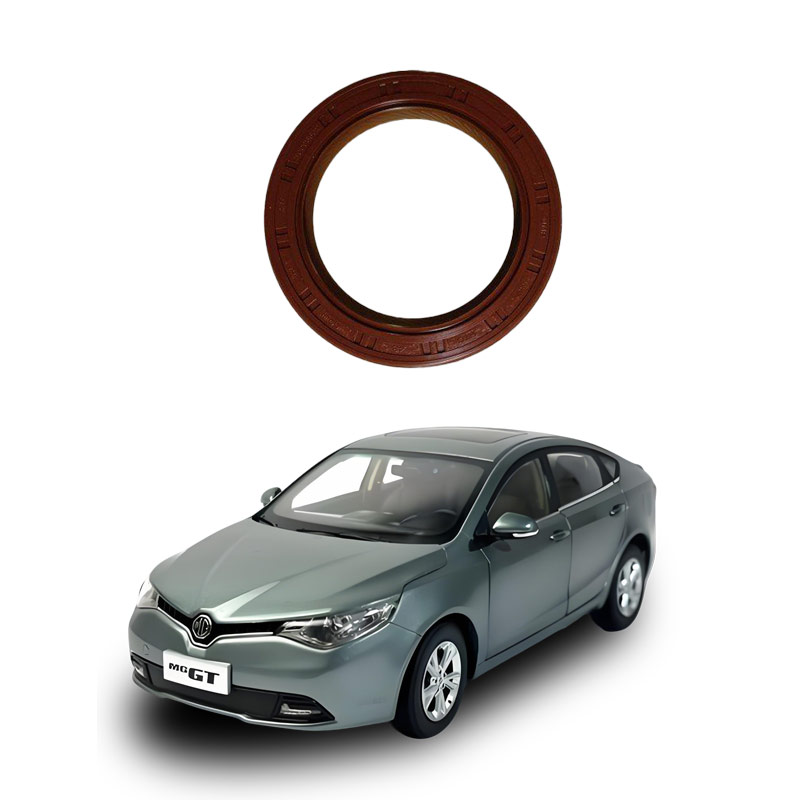

What is the front oil seal of the car crankshaft?
The front oil seal of the car crankshaft is a crucial sealing component in the engine, mainly used to prevent the leakage of lubricating oil (engine oil) from the front end of the crankshaft and to block dust, water and impurities from entering the engine interior.
Core functions
Sealing engine oil: During high-speed rotation of the crankshaft, it ensures that the engine oil does not seep out from the gap between the crankshaft and the engine casing.
Dust and dirt prevention: Preventing external contaminants from entering the engine interior, protecting key components such as bearings.
Maintaining the stability of the lubrication system: Ensuring the normal operation of the internal lubrication cycle in the engine and avoiding serious faults such as cylinder seizure and bearing burn due to lack of oil. Installation location
Located at the front end of the engine, specifically between the crankshaft and the engine casing, usually on the side of the belt drive (such as the timing belt or generator belt side).
Structure and Materials
Common types: Mostly frame-type oil seals (such as TC type), consisting of a metal frame, rubber sealing lip, and self-tightening spring.
Common Materials:
Nitrile rubber (NBR)
Fluororubber (FKM)
Silicone rubber (VMQ)
Polytetrafluoroethylene (PTFE), etc.
Temperature Resistance Range: Generally -40°C to 180°C, suitable for the high-temperature and high-speed operating environment of the engine.
Fault Manifestations
Oil stains or oil leakage at the engine compartment or the front end of the crankshaft
Abnormally reduced oil quantity
A burnt smell may be detected when starting the cold engine (due to oil dripping onto the hot components)
Replacement Suggestions
Once leakage is detected, it should be replaced as soon as possible to avoid long-term operation resulting in insufficient lubrication.
The replacement process requires the use of specialized tools (such as oil seal puller, pressure machine), and it is necessary to clean the crankshaft surface, apply an appropriate amount of engine oil before installing the new oil seal.
The crankshaft front oil seal is small but is an important "invisible guardian" that ensures the reliable operation of the engine's lubrication system.
The core function of the car crankshaft front oil seal is to seal the front end of the crankcase to prevent engine oil leakage and block impurities from entering.
Preventing Oil Leakage: The crankshaft front oil seal is installed at the front end of the crankshaft (usually on the side of the engine pulley), and its main function is to dynamically seal the rotating crankshaft, preventing engine oil from leaking from the crankcase to the outside of the engine, thus maintaining the normal operation of the lubrication system and avoiding oil contamination of the engine compartment.
Isolating Lubrication Components: It isolates the lubricated crankshaft and other internal components from the external output components (such as the pulley) to ensure that the lubricating oil does not leak.
Preventing Impurities from Entering: The oil seal can also prevent dust, mud, water vapor, etc., from entering the engine interior, protecting the crankshaft bearings and other key components, and reducing wear.
Mechanism for Achieving Sealing: A thin fluid dynamic pressure oil film is formed between the lip of the oil seal and the rotating crankshaft surface, which can both seal the engine oil and lubricate the contact surface between the lip and the shaft, thereby achieving effective dynamic sealing.
Common Fault Causes of the Car Crankshaft Front Oil Seal are one of the common problems of the engine, mainly manifested as leakage. If not dealt with in time, it may cause poor engine lubrication, power reduction, and even the risk of self-ignition. The following are the core information based on the latest authoritative public data:
Common Fault Causes
Oil seal quality issues: Poor quality rubber materials with poor oil resistance, wear resistance, or anti-aging performance, prone to deformation, cracking.
Improper installation: The oil seal is tilted, not in place, or not using specialized tools, resulting in lip damage or uneven wear;
During installation, the components are not cleaned, and impurities scratch the oil seal or the crankshaft surface.
Crankshaft Wear: The surface of the crankshaft neck has scratches, ellipticity, or excessive eccentricity, damaging the sealing fit with the oil seal.
Abnormal engine operating environment:
Long-term high-temperature, high-load operation accelerates the aging of the oil seal;
Faults in the crankcase ventilation system cause internal pressure to be too high, causing the oil seal to be pushed open.
Improper use of engine oil: Using non-original or non-specified specifications of engine oil, resulting in poor formation of the lubricating film and exacerbating the wear of the oil seal.
Natural aging: With the increase in service life (usually over 5 years), the rubber loses elasticity and develops cracks.
Typical Fault Manifestations
Oil stains or oil leakage at the front end of the engine (near the pulley);
Accelerated oil consumption, with the oil dipstick level significantly dropping;
The oil pressure alarm light comes on after starting (severe cases);
When removing the oil pan, fresh oil stains can be observed near the crankshaft.
Solutions
Replace high-quality oil seals: Choose original or reliable brand products, ensuring that the material and size match.
Standard installation procedures:
Use a dedicated press-in tool, keeping the oil seal parallel;
Before installation, apply an appropriate amount of non-petroleum-based lubricant (to prevent the oil seal from loosening);
Thoroughly clean the installation surface to prevent impurities from entering.
Inspect and repair the crankshaft:
Minor wear can be polished and polished;
Severe wear requires replacing the crankshaft.
Examine and troubleshoot the engine system:
Check if the crankcase ventilation system is unobstructed;
Ensure the cooling system is normal to avoid overheating of the engine;
Use engine oil that meets the manufacturer's specifications.
