What is the front lower arm of a car?

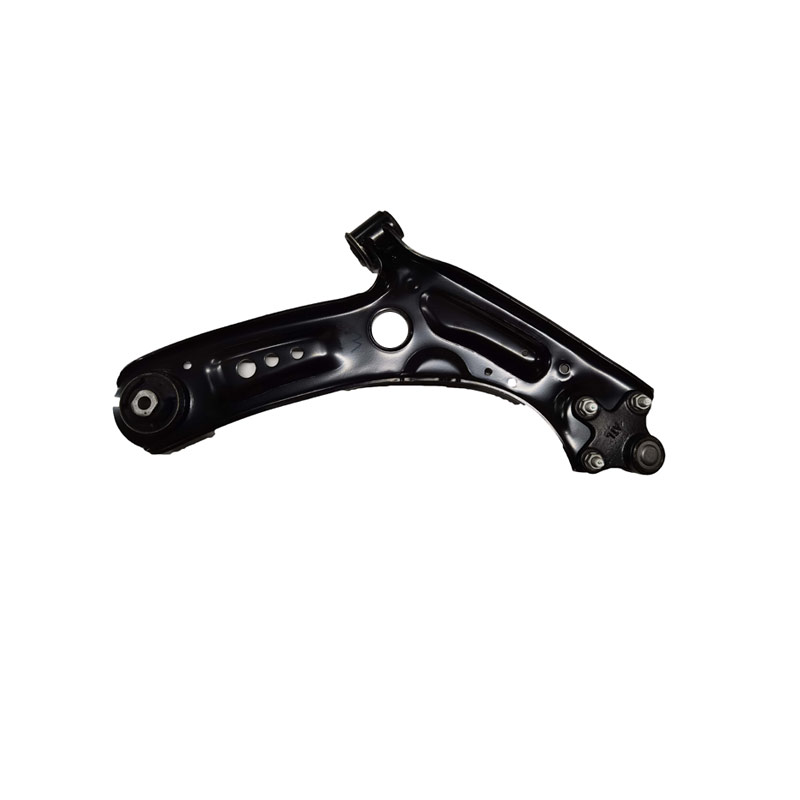

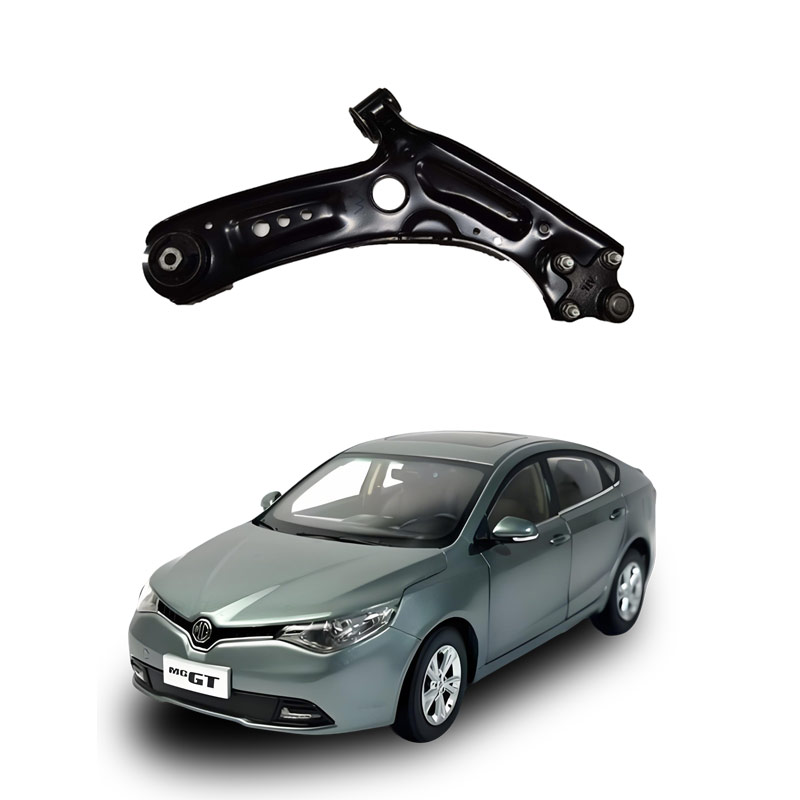

The front lower arm (also known as the front lower control arm or front lower link) is a key load-bearing and guiding component in the vehicle's front suspension system. It connects the steering knuckle (commonly referred to as the "spoke") to the vehicle's subframe, responsible for transmitting longitudinal, lateral, and vertical forces, and controlling the wheel alignment parameters (such as camber and caster), ensuring tire grip, steering accuracy, and driving stability.
Core functions
Support and connection: One end is connected to the steering knuckle via a ball joint, and the other end is fixed to the subframe via a rubber bushing, forming the reference pivot point for the suspension movement.
Force transmission: During acceleration, braking, steering, or uneven road conditions, it withstands and transmits various composite stresses.
Alignment control: In coordination with shock absorbers, springs, and other components, it maintains the correct geometric posture of the wheels, preventing drift, abnormal noise, or abnormal tire wear.
Buffering and shock absorption: The rubber bushing can filter high-frequency vibrations, improving ride comfort.
Common structural forms
McPherson suspension: Typically uses "L" or triangular single lower arm, performing both support and guidance functions.
Multi-link suspension: The lower arm is one of the links in the multi-link system, with a more complex structure, capable of achieving more precise wheel trajectory control (such as Ford's Control Blade suspension).
Material and manufacturing trend
Traditional materials: High-strength cast iron, stamped steel (low cost, good rigidity)
Lightweighting direction: Aluminum alloy (reduces unsprung mass, improves response time)
Polyamide/ glass fiber composite materials (such as PA6 + GF50), balancing strength, vibration reduction, and cost
Manufacturing process: High-strength steel (such as FB780, HR800CP) can be optimized through CAE to reduce weight by approximately 10% while improving fatigue life
Maintenance and replacement suggestions
Check cycle: It is recommended to conduct a focused inspection every 6–80,000 kilometers or when the following symptoms occur:
Chassis abnormal noise (especially when passing over)
Wheel shake， vehicle drift
Abnormal wear on the inner/outer sides of the tires
Replacement time：
Typically， it needs to be replaced after 8–120，000 kilometers of driving.
If only the bushing or ball joint is worn， it can be replaced separately； if the body shows cracks or deformation， the entire assembly must be replaced.
After replacement， it is necessary to perform four-wheel alignment to restore the original factory geometric parameters and prevent secondary wear or control loss.
Industry nickname
In the automotive repair field， the front lower arm is commonly referred to as "large bone rod" due to its shape resembling an animal bone and its location at the lower part of the suspension， which performs the main supporting role.
