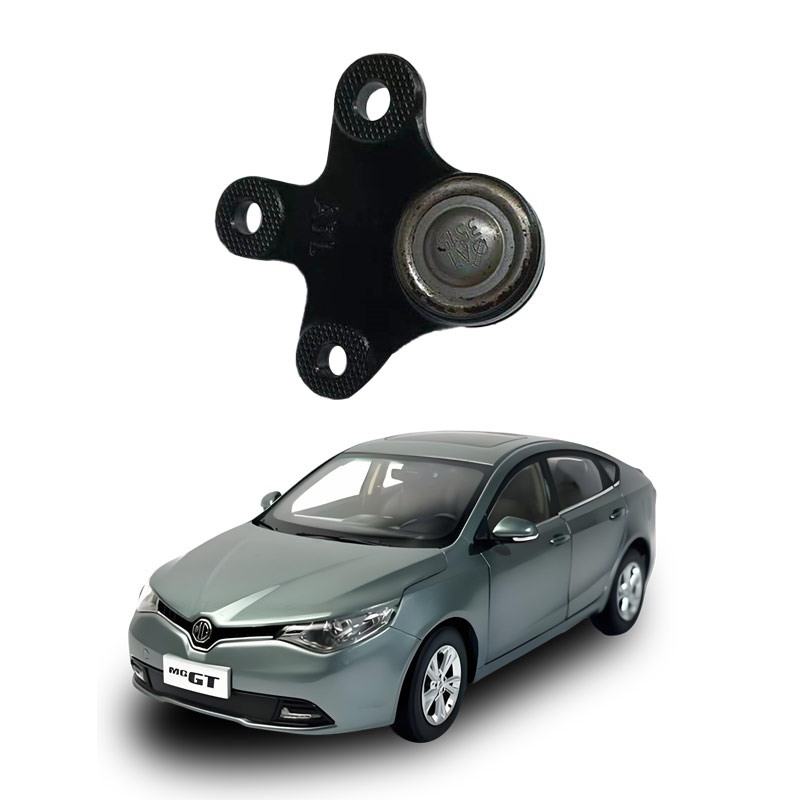

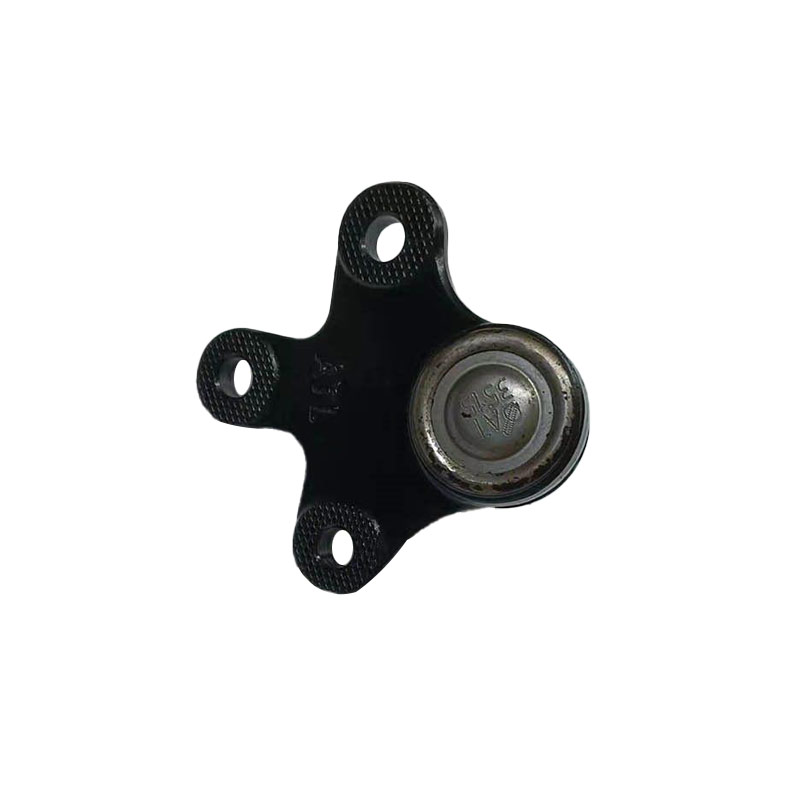

What is the ball joint of the front lower arm of a car?
The ball joint of the front lower arm of a car is a key moving joint in the independent suspension system that connects the lower control arm (also known as the lower arm) to the steering knuckle. It is one of the core components of the chassis. Although it is small in size, it plays a crucial role in transmitting force, buffering shocks, ensuring accurate steering and stable driving.
Core structure components
Metal ball joint: Made of high-strength alloy steel, with the surface hardened (such as carburizing and quenching), its hardness reaches HRC58–62, capable of withstanding tens of tons of dynamic loads.
Ball joint seat: Contains polyurethane or Teflon wear-resistant bushings, reducing friction and buffering road impacts.
Dust-proof rubber sleeve: Multi-layer U-shaped sealing design, preventing sand, water from invading, and adapting to multi-angle movements.
Lubricating grease: Commonly lithium-based or composite sulfonate calcium-based grease, with a wide temperature range (-40℃ to 120℃), ensuring smooth operation.
Fixed base: Cast steel or forged aluminum alloy material, rigidly connected to the arm or steering knuckle through high-strength bolts, with installation angle error typically ≤ ±0.5°. Main function
Dynamic Guidance: Allows the wheels to swing flexibly within an angle range of approximately 20° up and down and 15° left and right, ensuring that the tires remain in contact with the ground at all times and enhancing grip and handling performance.
Buffer and Shock Absorption: The internal bushings and lubricants can absorb approximately 80% of the high-frequency vibrations from the road surface, preventing them from being directly transmitted to the vehicle body.
Load Bearing and Force Transmission: Bears 30%-40% of the vertical load of the vehicle body, and the instantaneous impact force during emergency braking can reach 1.5 times the vehicle's weight.
Safety Protection: Absorbs part of the energy during low-speed collisions through deformation, prioritizing the protection of key components such as the steering gear and subframe.
Common Fault Symptoms
When the ball joint wears out or ages, the following symptoms may occur:
Chassis Noise: Makes "clunking" or "bang" sounds when passing over speed bumps or bumpy roads.
Tire Wear Disparity: Abnormal wear on the inner or outer side of the tire, increased tire noise.
Steering Abnormality: Increased free play of the steering wheel, delayed return to center, shaking at high speed or "steering ahead".
Vehicle Instability: Drifting during lane changes at high speed, significant side-slip during cornering, or deviation in straight-line driving.
Recommendations for Inspection and Replacement
Gap Inspection: Lift the vehicle and shake the tires. If there is a significant clearance (>0.5mm), replacement is necessary.
Dust Cover Inspection: Check for damage or cracking every 40,000 kilometers or during regular maintenance.
Replacement Cycle: The original factory ball joint typically has a lifespan of 8-120,000 kilometers, but attention should be paid earlier if the vehicle frequently travels on rough roads or areas with dense speed bumps.
National Standard Requirements: According to GB/T 30512-2014, if the radial gap of the ball joint exceeds 0.5mm, it is considered a failure risk point and should be addressed promptly.
If the vehicle exhibits the above abnormalities, it is recommended to have the chassis inspected at a professional repair shop as soon as possible to avoid major issues due to small problems, thereby ensuring driving safety.
The lower arm ball joint is the key 'joint' connecting the wheel to the suspension system. Its core function lies in supporting the weight of the vehicle body, buffering road vibrations, and accurately transmitting steering instructions, thereby ensuring the stability and precision of vehicle operation on the road.
Core Function and Mechanism of the Lower Arm Ball Joint
Dynamic Guidance and Steering Control: The lower arm ball joint adopts a ball-type universal joint design, allowing the wheels to freely rotate in multiple dimensions within an angle range of approximately 20° up and down and 15° left and right. This enables it to precisely transmit the steering command from the steering wheel to the wheels and ensure that the tires maintain the optimal contact angle with the ground on bumpy roads or during cornering, preventing steering ambiguity or deviation in driving.
Mileage Impact: When the ball joint wears out and the clearance exceeds 0.5mm, steering will show significant free play, directly affecting driving safety.
Buffer and Shock Absorption and Comfort Assurance: The ball joint is equipped with rubber bushings and dedicated lubricating grease, which can absorb and filter out approximately 80% of the high-frequency vibrations transmitted from the road surface to the vehicle body. This effectively prevents vibrations from being directly transmitted to the steering wheel and the vehicle body, significantly improving ride comfort.
Fault Manifestations: If the rubber bushing ages and cracks or the lubricating grease dries up, the steering wheel may exhibit a shaking sensation and be accompanied by a "clicking" noise when passing over speed bumps or bumpy roads.
Load Bearing and Stability Maintenance: As a key mechanical transmission hub, the lower arm ball joint bears approximately 30%-40% of the vertical load of the vehicle body. During emergency braking, the instantaneous impact force can reach 1.5 times the vehicle's weight. Its high-strength structure (such as the 35CrMo heat-treated steel commonly used in German vehicles) can effectively decompose the longitudinal impact force into lateral forces and transfer them to the frame, avoiding stress concentration and ensuring chassis stability during high-speed driving and emergency braking. Safety Protection and Impact Energy Absorption: During low-speed collisions (such as when the speed is below 15 km/h), the lower arm ball head can absorb approximately 30% of the impact energy through its controllable deformation. This "sacrificial" protection mechanism prioritizes the protection of more expensive and core chassis components such as the steering gear and subframe, to a certain extent, enhancing the vehicle's passive safety.
Common Fault Symptoms and Maintenance Suggestions
Main Fault Symptoms:
• Steering Abnormality: The steering wheel shows shaking or looseness, and the vehicle is prone to veer when the steering wheel is released. It is difficult to control the direction at high speeds.
• Strange Noise and Shaking: When turning the steering wheel at rest or at low speeds, a "clicking" sound may be heard; during driving, abnormal noises are transmitted from the chassis, and the steering wheel and the vehicle body shake more severely when passing over bumpy roads.
• Decreased Driving Stability: It feels like the vehicle is "floating", there is a "disconnection" sensation between the wheels and the chassis when passing over potholes, and the tires may show abnormal wear.
Maintenance and Inspection Suggestions:
• Regular Inspection: It is recommended to conduct an inspection in conjunction with regular maintenance, checking if the dust cover of the ball head is damaged, the internal lubrication condition, and whether there is any looseness. When the gap between the ball head exceeds 0.5mm, it is usually recommended to perform maintenance or replacement.
• Timely Replacement: Once the above fault symptoms occur, it is necessary to replace the damaged ball head promptly. After replacement, it is usually necessary to re-perform four-wheel alignment to restore the correct wheel alignment parameters and ensure driving stability.
