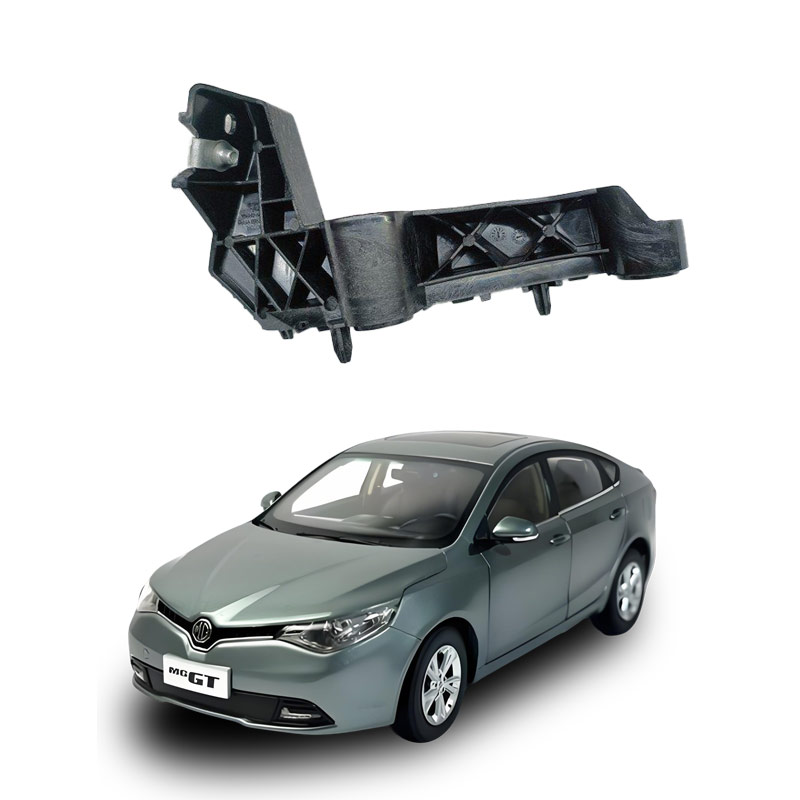

What is the front bumper bracket of a car?
The front bumper bracket (also known as the front bumper support or front protection bracket) is a key structural component that connects the vehicle's front bumper to the body frame, fender, or subframe. It mainly performs functions such as support, positioning, buffering, and energy absorption. Core function
Fixed support: Securely install the bumper on the vehicle body to prevent shaking or detachment during driving.
Collision buffer: In low-speed collisions (such as scratches or rear-end collisions), it deforms itself to absorb part of the impact force, reducing damage to core components like headlights, radars, and water tanks.
Precise positioning: Ensure that the gap between the bumper and surrounding components such as headlights and grilles is uniform, avoiding abnormal sounds or uneven appearance gaps.
Environmental adaptation: Respond to thermal expansion and contraction, high-frequency vibrations, etc., by releasing stress through elastic clasps or reserved gaps.
Structural and material characteristics
Structural form: Mostly Z-shaped frames, snap-fit, or integrated guiding mechanisms; some with anti-retraction and compression devices.
Common materials:
High-strength steel: Such as B340/590DP dual-phase steel, with a yield strength of 590 MPa;
Composite materials: Such as glass fiber reinforced polyamide (GFPA6), with a tensile strength of 180 MPa and a weight reduction of 40%;
Engineering plastics: Such as modified PA66, reinforced polypropylene, balancing rigidity and toughness.
Installation method: Fixed by bolts, snap-fit, or a combination of both; some models use a "snap-fit + bolt" composite structure.
Technical development and innovation (as of 2026)
Assembly efficiency improvement: For example, Guangzhou Automobile's 2017 patent for integrated guiding and anti-retraction structures improved assembly efficiency by 30%;
Adjustment optimization: Keda's 2022 patent introduced a rotating disc adjustment mechanism to solve the problem of uniform spraying;
Lightweighting and safety balance: General Motors' 2024 patent optimized the side wall inclination angle to 15°, increasing the collision energy absorption rate by 25%;
New energy compatibility: Develop high-insulation plastic brackets (volume resistivity > 10¹⁵ Ω·cm) to meet high-voltage electrical safety requirements.
Terminology clarification
Front bumper bracket ≠ Front bumper frame:
Front bumper bracket: Focuses on connection and buffering, mostly non-primary load-bearing components;
Front bumper frame (including main beam, energy absorption box): Is the main load-bearing structure, directly participating in collision energy absorption.
Commonly known as: In repair or modification contexts, it is also often referred to as "front face frame".
Practical application tips
If the bracket ages or breaks, it may cause the bumper to loosen, produce abnormal sounds, or even fall off, affecting driving safety;
When replacing, it is recommended to use original factory or precisely adapted aftermarket parts to avoid gaps, abnormal sounds, or failure of snap-fit due to tolerance mismatch;
In off-road modifications, the front bumper bracket also needs to meet mechanical requirements such as lateral torsion resistance, longitudinal shear resistance, and wind resistance load; the recommended material is 6061-T6 aluminum alloy (yield strength 240 MPa);
The bumper bracket (also known as front bumper bracket or front middle bracket) is a key component of the vehicle's front safety structure, mainly functioning in three aspects: support, energy absorption, and connection:
Support and fixation: As the "framework" of the bumper, the front bumper bracket undertakes the task of supporting and fixing the bumper assembly, ensuring its stability during driving, preventing shaking, displacement, or abnormal sounds, and ensuring the assembly accuracy and appearance coordination of the bumper and front headlights, undergrates, etc.;
Collision energy absorption: In low-speed collisions, the front bumper bracket undergoes controlled deformation through its structure (such as collapse zone, energy absorption protrusion, etc.), absorbing and dispersing impact energy, reducing the force transmitted to the vehicle's longitudinal beams and passenger compartment, thereby reducing damage to the vehicle structure and occupants;
Connecting other components: The front middle bracket often serves as a connection point, collaborating with key components such as radiators, water tanks, and headlights to fix them, ensuring the relative position stability of these components during driving and guaranteeing the normal operation of the vehicle;
In addition, modern bumper brackets also emphasize lightweighting, platformization, and assembly efficiency in design. For instance, the split-type bracket structure can reduce weight, accommodate various shapes, and enhance installation accuracy through error-proof design.
Some patented technologies have also introduced innovative structures such as snap-fit and multi-point positioning to optimize manufacturing costs and visual effects.
In summary, although the front bumper bracket is not conspicuous, it plays an irreplaceable role in terms of safety, stability and aesthetics.
