What is the car inflation valve cap?

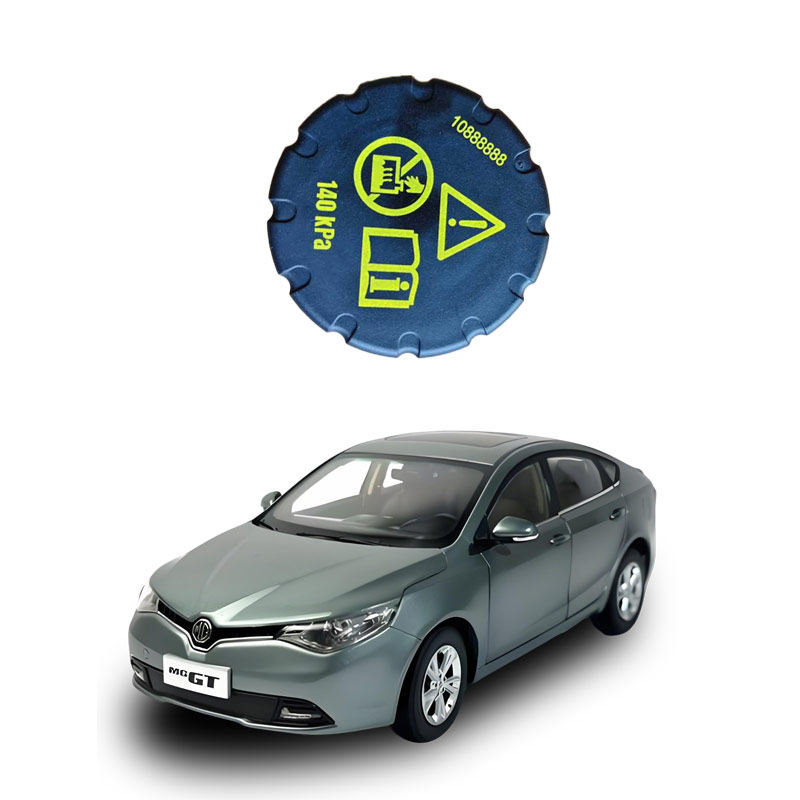

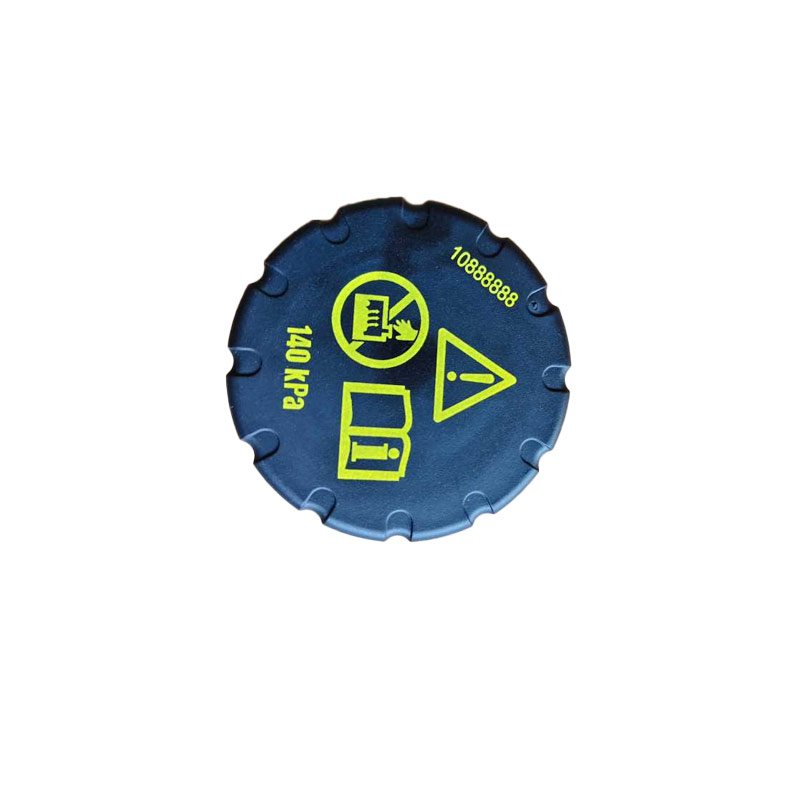

The car expansion water tank cap (also known as the auxiliary water tank cap or expansion water tank cover) is a crucial component in the car's cooling system. It is installed on the expansion water tank (commonly referred to as the "auxiliary water tank" or "liquid storage tank"), and its main function is to maintain the pressure balance of the cooling system, ensuring that the engine operates stably at an appropriate temperature.
Core functions
Sealing and leak prevention: Prevents coolant (antifreeze) from leaking out of the expansion water tank.
Pressure relief protection: When the system pressure is too high (usually exceeding 0.12 MPa), the internal pressure relief valve (which typically opens at a pressure of 0.12 MPa) automatically opens, releasing excess steam to prevent pipe bursts or water tank deformation and other severe damages.
Vacuum reflux: After the engine cools down, the system forms a negative pressure, and the air valve opens, drawing the coolant from the expansion tank back into the cooling system to prevent air blockage and lack of coolant.
Common fault symptoms
If the expansion water tank cap is damaged, the following situations may occur:
Coolant spurts from the cap or pipe interfaces;
The engine temperature rises abnormally, or even "boils over";
The coolant level drops rapidly;
The cooling system pressure is out of balance, affecting the efficiency of heat dissipation.
Maintenance suggestions
Regularly check the sealing performance and valve operation of the cap;
The replacement cycle is generally or according to the vehicle manual recommendations；
When replacing， use the original factory or pressure-specific dedicated cap to avoid affecting the system performance.
Although the expansion water tank cap is small， it is crucial to the reliability of the engine cooling system and cannot be ignored for its condition.
The car expansion water tank cap (also known as the auxiliary water tank cap or expansion water tank cover) is a key component in the engine cooling system. Its functions go beyond simple sealing. According to authoritative public information， its main functions are as follows：
Core function
Sealing and leak prevention： Prevents coolant (antifreeze) from leaking out of the expansion water tank， ensuring the sealing of the cooling system.
Pressure relief protection： When the cooling system experiences high temperature pressure (such as "boiling over")， the cap's pressure relief valve (typically opening at a pressure of 0.12 MPa) automatically opens， releasing excess gas or steam to prevent pipe bursts， water tank deformation， and other severe damages.
Maintaining stable system pressure： Through pressure regulation， it raises the boiling point of the coolant， enhancing cooling efficiency， especially in high-altitude or high-load conditions.
Automatic coolant compensation： When the engine cools down， the vacuum valve or air valve in the cap opens， drawing the coolant from the expansion water tank back into the main circulation system， maintaining the liquid level and pressure balance.
Buffering for volume changes due to temperature variations： Cooperates with the expansion water tank body to provide a buffer space for the volume expansion of the coolant caused by temperature changes.
Common fault consequences
If the expansion water tank cap fails (such as not releasing pressure or having poor sealing)， it may lead to：
Abnormally high cooling system pressure， causing "boiling over"， pipe bursts；
Coolant loss， resulting in engine overheating or even cylinder seizure；
Large fluctuations in liquid level， affecting the accuracy of temperature sensors.
Maintenance suggestions
Regularly check if the cap is deformed or cracked；
When replacing， be sure to use matching vehicle specifications' genuine parts；
Keep the coolant level between the "MAX" and "MIN" marks and use dedicated antifreeze.
Note： Modern mainstream vehicles mostly use pressure-bearing expansion water tanks (with pressure valve caps)， while older or some Japanese and Korean models may use non-pressure-bearing ones (with caps connected to the atmosphere).
