What is the gasket for the exhaust branch pipe of a car?

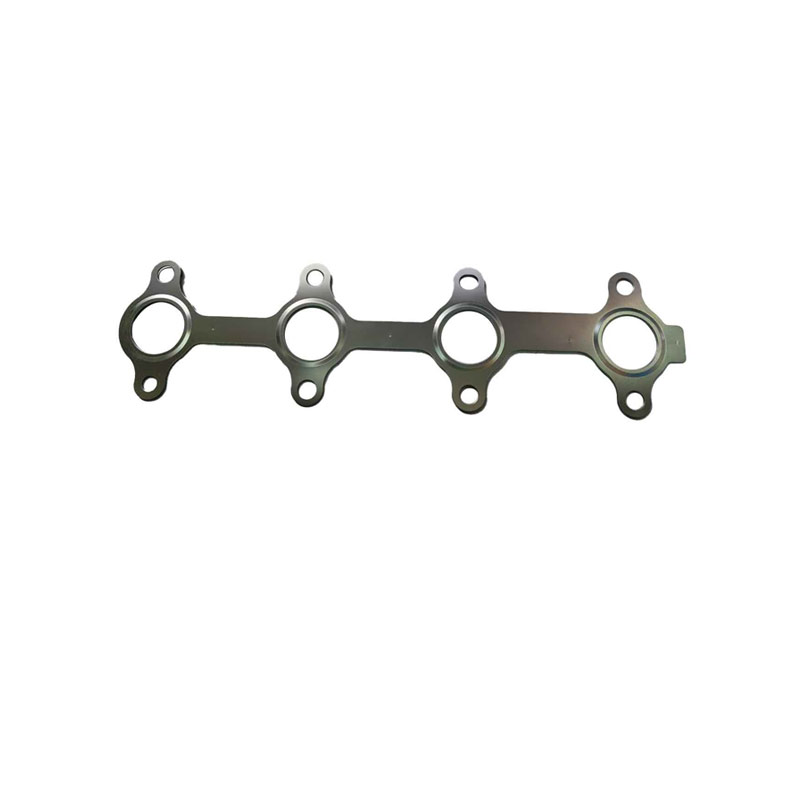

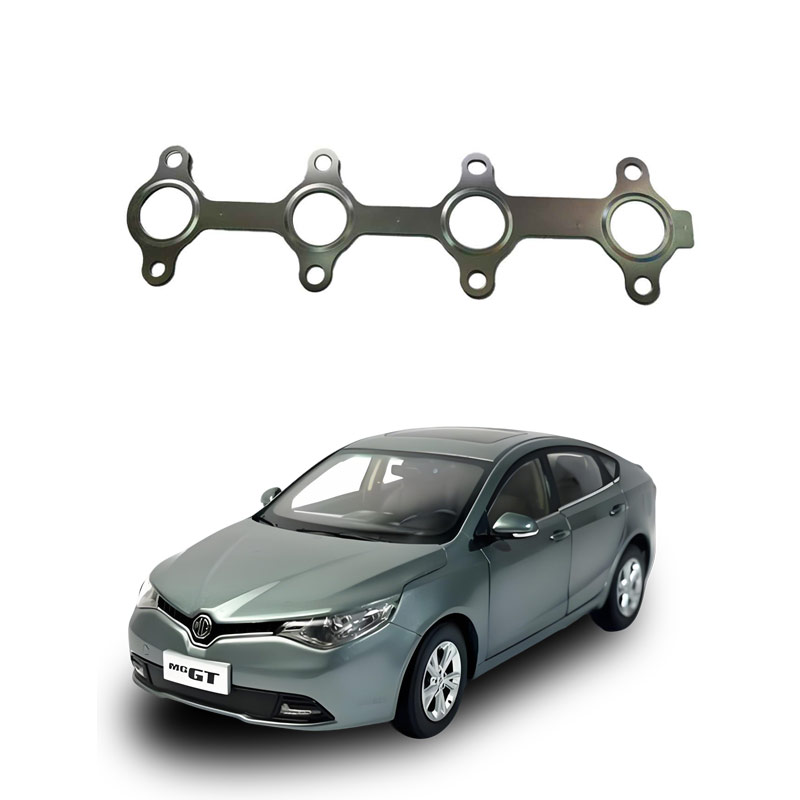

The exhaust manifold gasket (also known as the exhaust manifold gasket or exhaust pipe interface gasket) is a sealing component installed between the exhaust manifold (also called the exhaust branch pipe) and the exhaust port of the cylinder head. It is used to prevent the leakage of hot exhaust gas at the connection point.
Main functions
Sealing hot exhaust gas: Prevents the leakage of hot exhaust gas from the joint between the exhaust manifold and the cylinder head.
Heat insulation protection: Some gaskets are integrated with heat insulation covers, reducing heat transfer to other components in the engine compartment and reducing the temperature difference of the cylinder head, thereby extending its service life.
Noise reduction: Helps to reduce the sharp "sizzling" or "popping" sounds caused by exhaust system gas leakage.
Ensuring compliance with emissions regulations: Ensures that exhaust gas enters the three-way catalytic converter or turbocharger along the designed path, meeting environmental protection regulations.
Common structural forms
Metal-graphite composite structure: Made by sandwiching a metal plate with a graphite layer, it is resistant to high temperatures and has good sealing performance.
Metal wound gasket: Suitable for high-pressure and high-temperature environments, often used in original equipment or high-performance aftermarket parts.
Multi-layer structure with heat insulation cover: Metal seal on the top + non-metallic insulation layer in the middle + metal support at the bottom, enhancing insulation effect.
Typical symptoms after damage
Smoke or burnt smell in the engine compartment;
Sharp "sizzling" or "popping" noise during idle or acceleration;
Power loss, increased fuel consumption;
Significantly increased exhaust noise;
In severe cases, it may cause overheating and fire of nearby wiring or plastic parts.
Replacement suggestions
When symptoms occur, check and replace immediately;
It is recommended to check if the exhaust manifold flange surface is deformed when replacing;
Metal-wound gaskets or graphite composite gaskets can be selected, providing better durability;
When installing, pay attention to tightening the bolts according to the specified torque to avoid re-leakage due to over-tightening or under-tightening.
When the exhaust manifold gasket is damaged, it can cause a series of obvious symptoms, mainly affecting the sealing performance, power performance, and exhaust system of the vehicle. Based on the latest authoritative public information, the common manifestations are as follows:
Main fault manifestations
Obvious leakage and abnormal noise: When the gasket is damaged, the exhaust system seal fails, and hot exhaust gas leaks from the damaged area, resulting in continuous "sizzling" or "popping" sounds, especially during idle, acceleration, or when the accelerator is released . Engine power reduction: Leakage causes abnormal exhaust backpressure, affecting the operation of the turbocharger or the oxygen sensor readings, making the mixture display "too lean", resulting in poor acceleration and slow speed increase.
Smoke and odor in the engine compartment: Unburned exhaust leaks into the engine compartment, and a pungent "incomplete combustion" smell can be detected, and smoke may be seen .
Abnormal oxygen sensor data: Leakage interferes with the oxygen sensor's judgment of exhaust oxygen content, causing the ECU to misjudge the air-fuel ratio, thereby affecting the fuel injection strategy, exacerbating power deficiency and even causing "puffing" or "siren" phenomena .
Abnormal automatic transmission shifting: In some automatic transmission models, due to unstable engine operation, the TCU (Transmission Control Unit) may frequently forcibly downshift to protect the engine, resulting in shifting jolts .
Deformation at interface areas: Check the connection point between the front section of the exhaust pipe and the exhaust manifold, and small pits or deformations with uneven surfaces on the flange surface are often found .
Potential risks and suggestions
If not addressed for a long time, it may lead to:
Failure of the turbocharger (if equipped with a turbocharger);
Overheating or damage to the three-way catalytic converter;
Exceeding exhaust emission standards, unable to pass the annual inspection.
Suggestions: Once the above symptoms are detected, it is recommended to promptly visit a professional repair shop to inspect the exhaust system, with a focus on checking the condition of the gasket at the connection point between the exhaust manifold and the front section of the exhaust pipe. Replacement with new parts is necessary if necessary. Regularly check the exhaust pipeline for abnormal sounds or smoke, especially after high-load driving (such as uphill driving, using exhaust braking) .
