What is the core component of the car evaporator box?

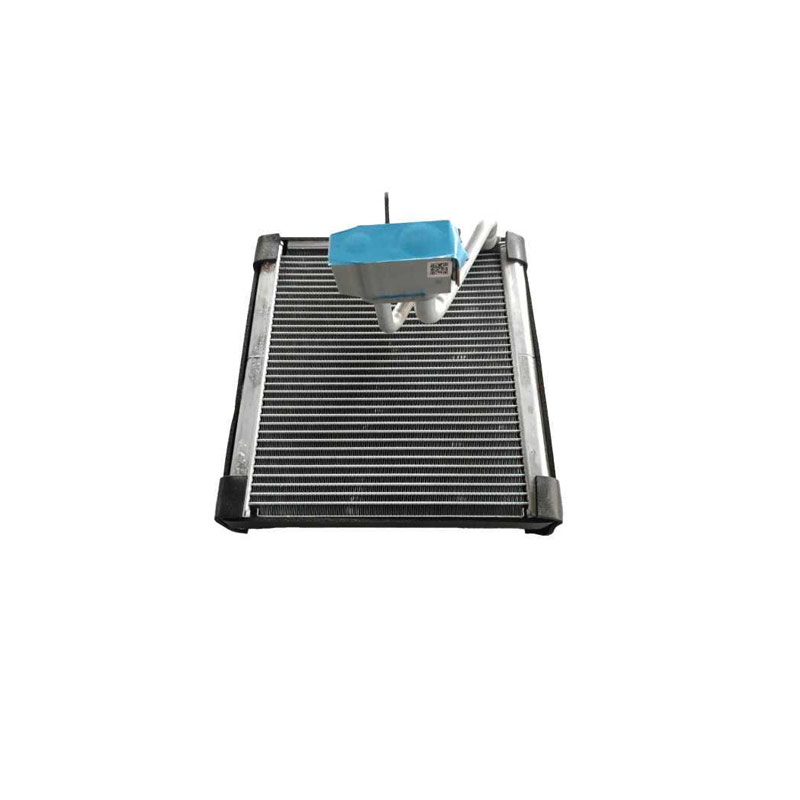

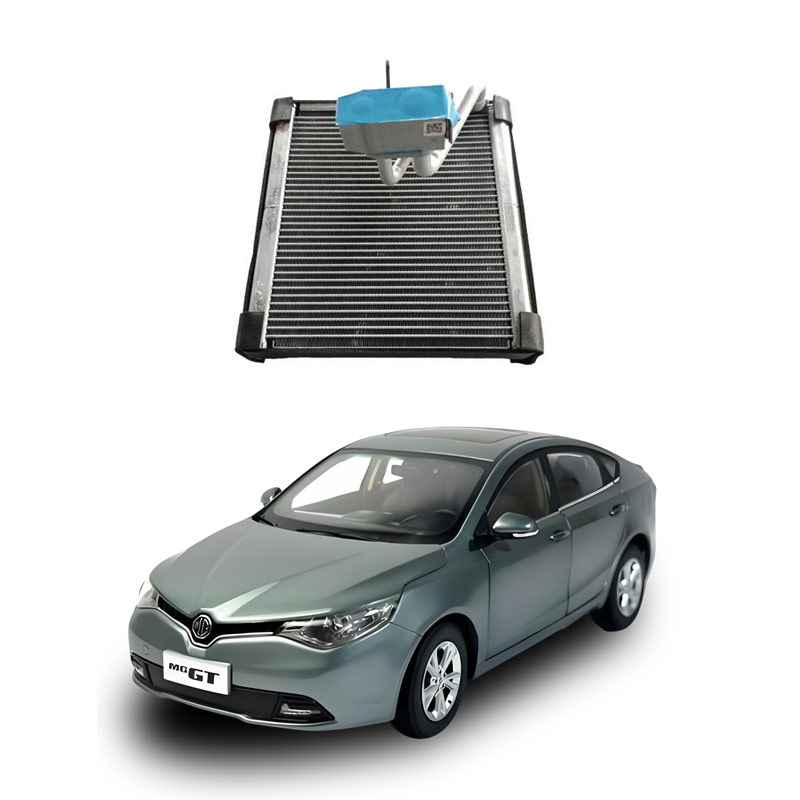

The core component of the automotive evaporator box is the evaporator core.
According to authoritative public information, the evaporator core is composed of closely combined copper tubes and aluminum sheets (or aluminum fins), forming multiple tube-plate combinations, which is the key part for achieving heat exchange. Its design aims to maximize the contact area, improve the heat absorption efficiency of the refrigerant, and thereby effectively lower the temperature of the flowing air.
The main features of the evaporator core:
Material: Usually copper tubes + aluminum fins, some high-end or large vehicles adopt a full aluminum laminated structure.
Function: Low-temperature and low-pressure liquid refrigerant evaporates and absorbs heat inside the core, cooling the surrounding air; at the same time, it condenses moisture to achieve dehumidification.
Type:
Tube-plate type (economy model, lower heat transfer efficiency)
Tube belt type (mainstream sedans, efficiency improved by about 10%)
Laminated type (high-end models, compact structure, highest efficiency) Therefore, the evaporator core is the most crucial component for achieving the cooling function in the evaporator box.
The automotive evaporator box is the core component of the vehicle's air conditioning system. Its main functions can be summarized as follows:
Cooling and temperature reduction: Through the vaporization of liquid refrigerant in the evaporator box, it absorbs heat and rapidly lowers the temperature of the air flowing through it, making the air blown into the vehicle cooler, achieving cooling in the vehicle during summer.
Humidity control: The surface temperature of the evaporator box usually remains at 0–4°C, causing water vapor in the humid air to condense into water droplets and be discharged outside the vehicle through the drainage pipe, effectively reducing the humidity inside the vehicle (from 60–80% to 40–50%), preventing window fogging.
Air assistance in purification: The metal fin structure can passively intercept 30% or more of PM2.5, pollen, dust, etc., and combined with approximately 500 m³/h of air circulation, forms a basic air purification barrier.
Note: Some sources mention that the evaporator box also participates in heating (through the heating water box), but strictly speaking, the heating function is mainly completed by the heating water box, rather than the core function of the evaporator box. The core of the evaporator box still focuses on cooling, dehumidification, and basic filtration.
It is recommended to have a professional cleaning every 1–2 years or after 2–3 ten thousand kilometers of driving to maintain the heat exchange efficiency and prevent mold growth.
The evaporator box in the vehicle is a core component of the air conditioning system, located inside the dashboard. Once there is a core component failure, it usually indicates that the structure or function has been severely damaged and requires professional handling. According to the latest authoritative public information (as of March 2026), the following are key details:
Typical manifestations of core component failure
The air conditioning does not cool at all: Even when the AC is turned on, there is no cool air inside the vehicle, and there may be a smell of refrigerant or refrigeration oil.
Leakage phenomenon: The evaporator box body is damaged, causing abnormal overflow of condensate water from the throttling valve or drainage pipe.
Power system abnormalities: Some vehicle models may experience power loss, increased fuel consumption, difficulty in cold start, and engine vibration due to the linkage of the air conditioning system and the engine load.
Odor and health risks: Internal accumulation of mold and bacteria, blowing out odorous air, may cause respiratory discomfort or allergies. Common causes of failure
Physical damage: The evaporator box body cracks, deforms, or corrodes.
Pipe problems: The connection pipes are welded, clogged, or fail in sealing, resulting in refrigerant leakage.
Temperature control failure: The temperature sensing tongue malfunctions, causing the compressor to run continuously, resulting in freezing and cracking of the evaporator.
Long-term lack of maintenance: Dust and dirt accumulate and block the filter and pipes, accelerating corrosion and performance decline.
Handling suggestions
Immediately stop using the air conditioning to avoid further damage to components such as the compressor.
Seek diagnosis at a 4S store or professional repair shop as soon as possible. Since the evaporator box is deeply hidden inside the dashboard, the repair requires disassembling the dashboard, which is a highly complex operation. If you have purchased an extended warranty service (such as Shanghai Lixin, etc.), some of the high-priced repair costs may be covered. For example:
Preventive Measures:
- Deep clean the evaporator box at least once a year;
- Replace the air conditioning filter every six months or every 10,000 kilometers;
- Before parking, turn off the AC but keep the air blowing to reduce moisture residue.
Note: Do not attempt to disassemble it yourself without professional knowledge. This may cause greater damage. It is recommended to schedule a professional inspection through official channels, such as the Pacific Auto Network Evaporator Box Fault Q&A or Autohome Evaporator Box Special Topic, to obtain more technical details.
