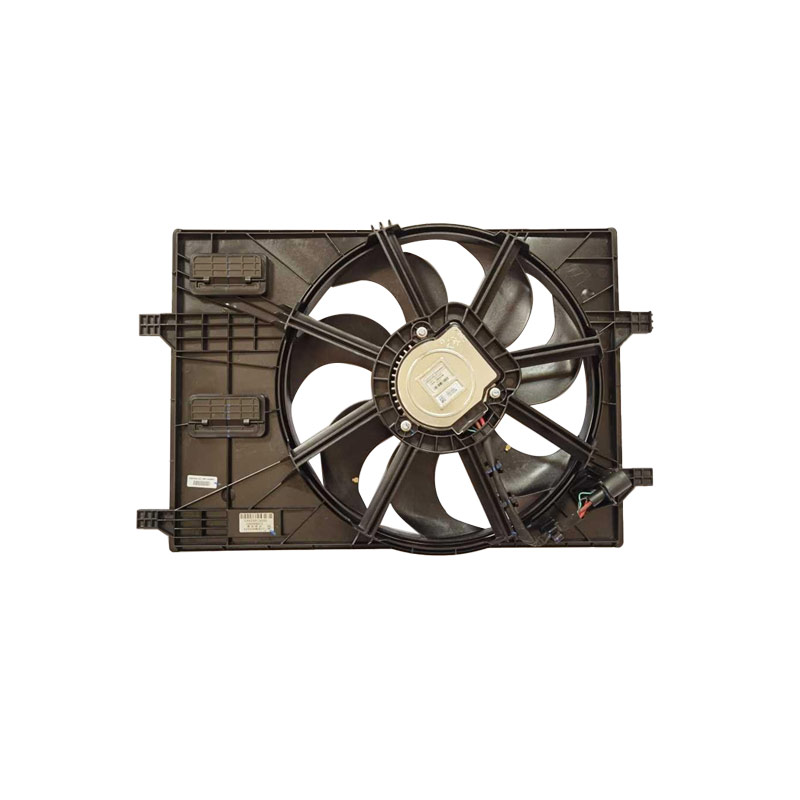

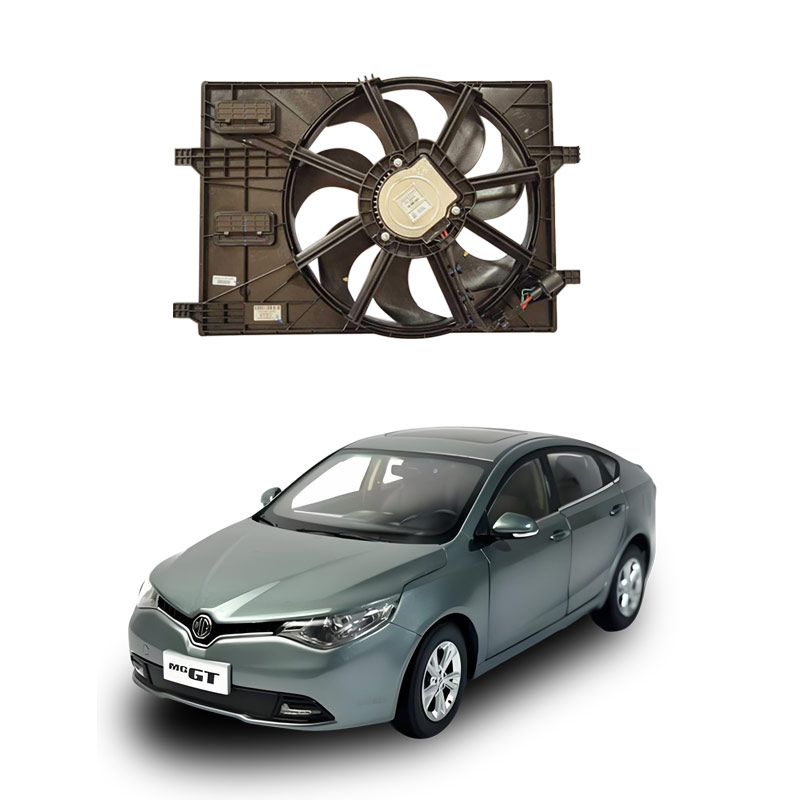

The working principle of automotive electronic fans
The automotive electronic fan automatically regulates the engine temperature through an intelligent temperature control mechanism, ensuring it operates within the optimal working range.
Working Principle Explanation
Temperature Sensing and Start/Stop Control
The core control components of the electronic fan are the temperature controller (or water temperature sensor) and the engine ECU (Electronic Control Unit). When the engine coolant temperature rises to the set upper limit (typically 92°C – 105°C), the temperature controller turns on the power supply and the fan starts for forced cooling. Once the temperature drops to the safe range (such as 88°C – 93°C), the temperature controller cuts off the power supply and the fan automatically stops to avoid excessive cooling that could affect engine efficiency.
Multi-level Speed Regulation Mechanism
Most electronic fans have two-speed options or even multi-speed capabilities:
When the water temperature reaches approximately 90°C, the fan operates at low speed;
When the temperature rises above 95°C, it switches to high-speed operation to enhance the cooling capacity.
This regulation is typically achieved by a thermal switch detecting the water temperature and sending a signal to the control unit J293, which then uses a circuit driver to change the duty cycle or PWM signal to control the speed.
Air Conditioning System Linked Control
Even if the water temperature has not reached the high threshold, starting the air conditioning will trigger the fan to operate. Because the air conditioning condenser needs to dissipate heat to maintain the cooling effect, the air conditioning computer (J301) will send a forced start signal to the fan control unit (J293), causing the fan to operate in coordination. This ensures efficient operation of the air conditioning while preventing additional load on the engine from causing overheating.
Delay Cooling After Engine Shutdown
Some vehicle models have a "delay cooling" feature: After the engine shuts off, if the coolant temperature remains above a certain value (such as 117°C), the fan will continue to run for a few minutes until the temperature drops to a safe level to prevent "heat accumulation" and other failures.
Fault Protection and System Monitoring
Modern electronic fan systems are equipped with comprehensive protection mechanisms, including real-time monitoring of motor current, voltage, and speed. If any issues such as overvoltage, overcurrent, short circuit, or motor jamming are detected, the control system will take power-off protection to prevent damage to the entire cooling system.
Comparison with Other Fan Types
Electronic Fan vs Silicone Oil Clutch Fan
The electronic fan is precisely controlled by the ECU, responding quickly and having high efficiency, suitable for modern intelligent thermal management systems; while the silicone oil fan is driven by the physical property of silicone oil thermal expansion, having a simple structure but lower control accuracy.
Electronic Fan vs Traditional Mechanical Fan
Traditional mechanical fans are directly driven by the engine belt and always operate; they have higher energy consumption; while the electronic fan starts and stops as needed, significantly reducing power loss and improving fuel economy.
Judging whether the automotive electronic fan is working properly can be done through multiple aspects such as observing the operating state, listening to the sound, detecting temperature changes, and checking related components.
Intuitive Observation Method
Check if the fan is rotating
Start the engine and wait for the water temperature to rise above 80°C (about 5–10 minutes), then open the hood and observe if the radiator fan automatically starts. Normally, when the water temperature reaches 90–98°C, the fan should start at low speed; if the temperature continues to rise (such as above 102°C), it will switch to high-speed mode.
Check the Air Conditioning Linked Function
Turn on the air conditioning cooling mode, even if the water temperature is not high, the fan should also start to assist the condenser in cooling. If the fan does not respond after turning on the air conditioning, there may be a fault in the control circuit or relay.
Auditory and Tactile Auxiliary Judgment
Listen to the operating sound
The fan operates with a uniform "whirring" noise. If there is a "clanging" abnormal sound or sharp friction sound, it may be due to blade deformation, bearing wear, or motor failure.
Feel the Airflow Volume Under safe conditions, when you bring your hand close to the rear of the fan (but do not touch the blades), you should be able to clearly feel the strong airflow. If there is no wind or the wind is weak, it may indicate insufficient motor power or stuck fan blades.
Temperature and instrument monitoring
Observe the water temperature gauge: If the water temperature remains high (the pointer is close to the red area) and the fan does not start, it indicates that the fan is not working as required.
If the fan continues to run for several minutes after the engine is turned off, it is a normal delay cooling function; but if it does not stop rotating for a long time, it may be a fault in the temperature control switch or control module.
Key component inspection
Check fuses and relays
Locate the fuse box in the engine compartment, confirm whether the fuse corresponding to the fan has blown, and whether the relay is operating normally. You can test the relay performance by substitution.
Test the motor and wiring
Disconnect the fan plug and directly connect a 12V power source. The fan should be able to rotate normally and there should be no abnormal noise. Otherwise, the motor is damaged.
Use a multimeter to measure the resistance of the motor. If the resistance is abnormal (too high or infinity), it indicates an internal winding fault.
Troubleshoot temperature control sensors and switches
The failure of the water temperature sensor or thermal switch will cause the fan to fail to receive the start signal. You can read the water temperature data stream using a diagnostic tool or test the conduction temperature of the temperature control switch in hot water (usually 93–98°C is conductive).
