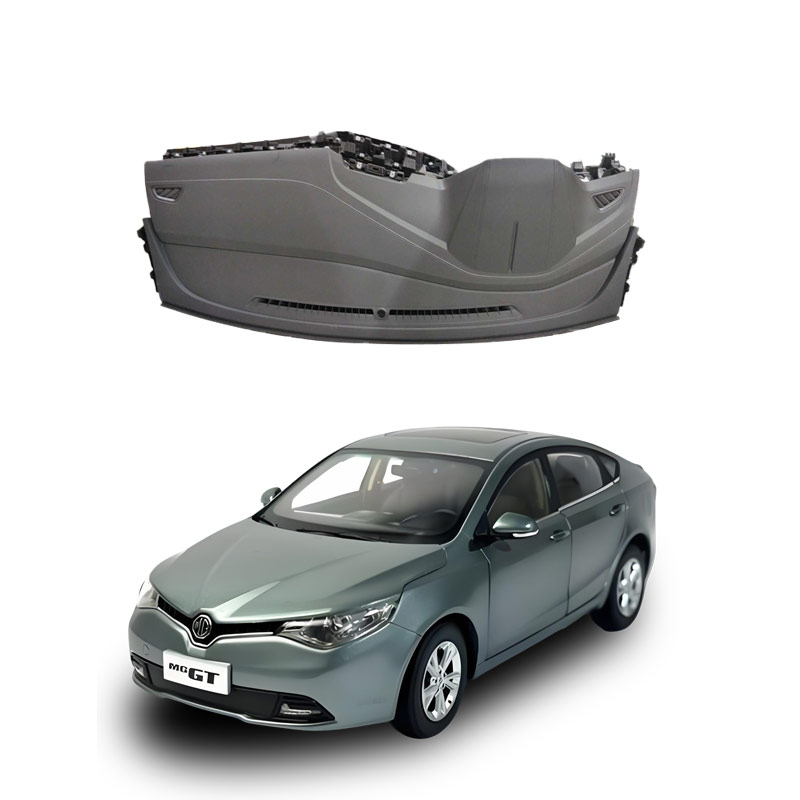

What is the car dashboard?
The car dashboard is the core interface through which drivers interact with the vehicle, centrally displaying key operating parameters such as speed, engine status, fuel level, and water temperature. It also uses indicator lights and alarm systems to alert the driver of the health of each system, helping them detect abnormalities in a timely manner and ensuring driving safety.
The core components and functions of the dashboard
Basic instrument display area
Speedometer and odometer: Real-time display of current speed (unit: km/h) and cumulative/individual mileage, the most frequently concerned information for driving.
Tachometer: Reflects the engine's revolutions per minute (rpm), assisting in determining the timing for gear shifting, especially in manual transmission vehicles.
Fuel gauge: Displays remaining fuel level, typically marked with "F" (full) and "E" (empty), and should be refueled as soon as it approaches "E".
Water temperature gauge: Monitors the coolant temperature, operating within a normal range of 80–90℃, and excessive temperature may cause engine overheating faults.
Oil pressure gauge: Indicates the pressure of the lubrication system, and if the alarm light is on, it is necessary to stop immediately for inspection to avoid engine damage.
Electronic indicator lights and alarm system
Modern dashboards integrate dozens of symbolized indicator lights to alert system status or faults:
?? Red Warning Light: Indicates a serious fault, such as engine failure, abnormal braking system, or low oil pressure. Immediate action is required.
?? Yellow Warning Light: Signals potential issues, such as ABS failure, insufficient tire pressure, or abnormal emission system. It is recommended to have it repaired as soon as possible.
?? Blue/Green Indicator Light: Only indicates that a function is enabled, such as high beam lights or turn signals operating status. It is a normal operation feedback.
Multifunction Display (available in some models)
Can switch to display various contents such as range, average fuel consumption, driving mode, and navigation information, enhancing driving convenience.
Technical Evolution of the Dashboard
With the development of automotive electronics, the dashboard has gradually upgraded from mechanical to an intelligent display system:
First Generation: Mechanical Mechanism Display - Dependent on a soft shaft transmission, the structure is simple but has limited precision.
Second Generation: Electrical Instruments - Transmits signals through sensors, improving response speed and accuracy.
Third Generation: Full-Digital Display - Uses LCD or OLED screens, supports graphical and personalized interfaces, and can communicate with the vehicle's network to achieve more comprehensive information interaction.
Dashboard Fault Lights are on. First, determine the risk level based on the color of the light and the actual vehicle condition, and take corresponding measures. Different colors represent different emergency levels, and the handling methods are completely different: Red light must be stopped immediately; Yellow light allows for short-distance low-speed driving to the repair point; Blue/Green are only function indications and do not need to be worried about.
The red fault light is on: Must stop immediately!
The activation of these lights indicates that the vehicle has serious safety hazards. Continuing to drive may result in engine failure, brake failure, and other major accidents.
Oil Pressure Alarm Light (Red Oil Can Icon)
Indicates abnormal lubrication system of the engine, insufficient oil volume or low pressure.
✅ Response: Stop the vehicle and turn off the engine. Wait for 5 minutes and check the oil dipstick. If it is below the MIN line, add the same model of oil; if the level is normal but the light is still on, it may be due to a fault in the oil pump or sensor, and it is recommended to tow for repair.
High Water Temperature Warning Light (Red Thermometer Icon)
Excessive engine coolant temperature, possibly caused by insufficient water, damaged water pump, or stuck thermostat.
✅ Response: Pull over to the side of the road, turn off the engine, and turn on the hazard lights. Wait for the coolant to cool down and check the liquid level of the antifreeze reservoir. If it is insufficient, temporarily add pure water as an emergency. Do not open the radiator cap when the engine is hot; the high-temperature steam may cause severe burns.
Brake System Fault Light (Red Circle + Exclamation Mark)
May be due to brake fluid leakage, brake pad wear to the limit, or ABS system failure.
✅ Response: First, confirm if the handbrake is fully released. If it is still on and the brake pedal becomes soft or has a longer travel, the braking system is abnormal. Do not continue driving, and contact for rescue.
Steering Assist Fault Light (Red Steering Wheel + Exclamation Mark)
Assist system failure, the steering wheel will suddenly become heavy, and high-speed driving is prone to loss of control.
✅ Response: Turn on the hazard lights, slow down and pull over to the side of the road. Do not force control; it requires professional repair.
