What is an automotive cylinder bed?

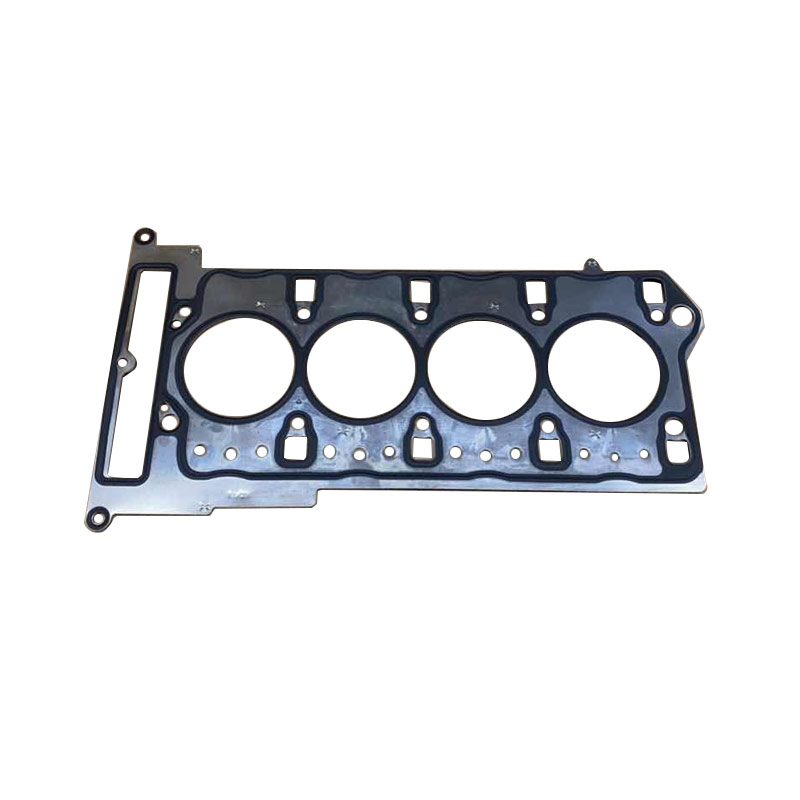

The cylinder gasket is located between the cylinder head and the cylinder block and is also known as the cylinder bed. Its function is to fill the microscopic pores between the cylinder block and the cylinder head, ensuring a good seal at the joint surface, thereby maintaining the sealing of the combustion chamber and preventing cylinder leakage and water jacket leakage.
When the cylinder bed of the car shows erosion problems, it will exhibit the following series of symptoms:
Reduced engine power: During driving, you will feel that the engine of the car is significantly less powerful, accelerating becomes difficult, response is sluggish, and power is insufficient.
Leaking sound: When the engine is running, you can hear a distinct leaking sound at the joint between the cylinder head and the cylinder block or at some local positions. This is a typical manifestation of cylinder bed erosion problems.
Abnormal engine operation: After starting the car, you may find that one or some cylinders do not work, accompanied by abnormal sounds, indicating a serious fault inside the engine.
Cooling system problems: You may find that the radiator frequently runs out of water, and bubbles can be seen at the water filling port of the radiator, or oil droplets appear on the surface of the cooling water. These symptoms are obvious signs of cylinder bed erosion problems, indicating that the sealing performance inside the engine has been damaged.
When you encounter the above symptoms, it is recommended to promptly take the car to a professional repair shop for inspection and repair to avoid further damage and potential safety risks. In addition, regular maintenance and inspections are effective methods to prevent cylinder bed erosion problems.
Cylinder gasket damage is a common fault of the engine, which can lead to engine performance decline, leakage, and other problems. In severe cases, it may cause engine damage.
Common Fault Symptoms
After the cylinder gasket is damaged, the engine will exhibit various symptoms. In terms of power, due to the decrease in cylinder pressure, the engine is weak, difficult to accelerate, and power is significantly reduced. During operation, there will be idling tremors, unstable operation, individual cylinders not working, and difficulty starting. In terms of leakage, a "sizzling" or "puffing" sound may be heard at the joint between the cylinder head and the cylinder block, or at some local positions. In severe cases, there may be oil and water splashing phenomena. When disassembled and inspected, carbon deposits can be seen at the corresponding position. In the cooling system, abnormal conditions will occur, such as abnormal increase in water temperature, bubbles and hot air emerging at the water filling port of the radiator, rapid consumption of cooling water and oil droplets on the surface. The lubrication system will also be affected, with the engine oil possibly becoming emulsified and turning white, the oil temperature rising, viscosity decreasing, and bubbles visible in the oil sent to the cylinder head. In the exhaust system, blue smoke, white smoke or black smoke may be emitted, and the exhaust muffler may drip water. When there is cross-leakage between two adjacent cylinders, it will cause insufficient pressure in the two cylinders and a decrease in engine speed.
Fault Causes and Triggers
The fundamental cause of cylinder gasket failure is the failure of sealing, resulting in the communication between the cylinder and the cooling water jacket or lubrication channels. Common triggers include engine overheating, which is the most common reason. High temperature causes the gasket material to deform or erode. Faults in the lubrication system, such as insufficient or deteriorated engine oil, can cause the engine temperature to rise or poor lubrication. Engine detonation, also known as "pinging", continuous abnormal combustion will exert additional stress on the cylinder gasket. The cylinder gasket itself may have material defects, and low-quality materials will age and fail prematurely. Improper installation is also an important reason. For example, the joint surface between the cylinder head and the cylinder block is not cleaned properly, or the cylinder head bolts are not tightened in the specified sequence and torque as per the manufacturer's instructions, resulting in uneven sealing pressure.
Preventive and Maintenance Measures
To prevent cylinder gasket failure, it is necessary to regularly check and maintain the cooling system and lubrication system to ensure their normal operation. Using high-quality fuel helps prevent engine detonation. During the repair and replacement of the cylinder gasket, it is necessary to ensure proper installation, including thorough cleaning of the joint surface and tightening the cylinder head bolts in the specified sequence and torque as per the manufacturer's instructions.
Emergency Handling Methods
If you encounter cylinder gasket burning damage during driving and there are no spare parts, you can take emergency measures. If the damage area is small, you can use the tin foil from a cigarette box, the tin foil from an old capacitor, or asbestos thread to fill in and then compact and press it flat. If the damage area is large, you can use dry cowhide or cut the same part from an old rubber gasket to patch it as a substitute. Afterwards, you need to return to the site and re-repair it according to the technical specifications.
If you want to know more, keep reading the other articles on this site!
