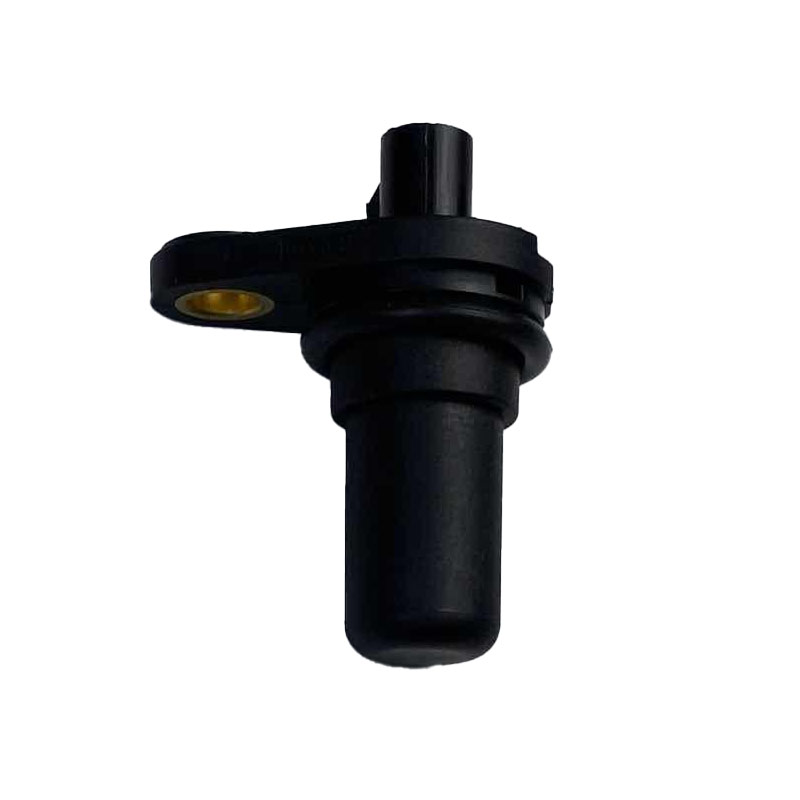

What is an automotive crankshaft sensor?
The crankshaft sensor (also known as the crankshaft position sensor) is a core component in the engine's electronic control system. It is mainly used to detect the rotation position (angle) of the crankshaft and the engine speed, and then transmit this information in real time to the engine control unit (ECU) to precisely control the ignition timing, fuel injection timing, and ignition sequence.
Main functions
Determine crankshaft angle: Determine the exact position of the piston in the cylinder (such as the top dead center).
Monitor engine speed: Calculate RPM (revolutions per minute) by the frequency of crankshaft rotation.
Cooperate with camshaft position sensor: Together, identify the working state of each cylinder (such as the compression stroke), and achieve sequential fuel injection and ignition.
Common types and working principles
Magnetic-electric induction type (magnetic pulse type)
Composed of a permanent magnet, an induction coil, and a signal disc with teeth/rim.
When the crankshaft rotates, the signal disc changes the magnetic field, generating an alternating voltage signal in the coil.
The structure is simple and reliable, widely used in older models and some modern vehicles.
Hall effect type
Uses a Hall element to sense changes in the magnetic field and outputs a square wave pulse signal.
It requires an external 5V power supply and has strong anti-interference ability and high accuracy.
Commonly found in brands such as General Motors (GM), Chrysler, etc.
Photoelectric type
Composed of an LED, a photodiode, and a signal disc with light holes.
Alternating light/shadow generation produces pulse signals, which were used in Nissan and other models.
Due to being susceptible to oil and dust, it has been largely phased out.
Installation location
Front end of the crankshaft (near the belt pulley)
Back end of the crankshaft (close to the flywheel or transmission housing)
Middle of the crankshaft
In the distributor (in older models)
Typical failure manifestations
Engine cannot start
Idle instability, weak acceleration
Engine fault light on
Stored fault codes (such as P0335, P0336, etc.)
Detection method (example: magnetic-electric type)
Resistance check: The resistance of the coil is usually 125–250Ω (depending on the model).
Signal voltage check: When starting the engine, use a multimeter to measure the output terminal, which should have an AC pulse voltage of 0.2–2V.
Gap check: The gap between the signal disc and the sensor's magnetic head is generally 0.2–0.4mm.
If the sensor is damaged, the ECU will not be able to obtain key timing information, resulting in the failure of the fuel injection and ignition system, and the vehicle will not be able to operate.
The crankshaft sensor (also known as the crankshaft position sensor) is a core component in the engine's electronic control system. Its main function is to detect the crankshaft angle, engine speed, and piston top dead center position, and then transmit this information in the form of an electrical signal to the engine control unit (ECU) for precise control of ignition timing and fuel injection timing.
Core function
Determine crankshaft position: Identify the current crankshaft angle.
Measure engine speed: Calculate the speed (RPM) by the number of pulses per unit time.
Identify piston top dead center: Provide a reference for the ignition and fuel injection of each cylinder.
Cooperate with camshaft position sensor: Together, determine which cylinder is at the end of the compression stroke, and achieve sequential ignition and fuel injection.
Working principle (by type classification)
The crankshaft sensor has three main types, and their working principles are as follows:
Magnetic-electric induction type (magnetic pulse type)
Composed of a permanent magnet, an induction coil, and a signal disc with teeth/rim.
As the crankshaft rotates, the signal disc changes the magnetic field, causing a change in the magnetic field, and generating an alternating induced electromotive force (sine wave signal) in the coil.
The ECU converts this signal into pulses and calculates the speed and position.
For example: Early models of Nissan and Toyota used this method, and the signal disc often had missing teeth for synchronization.
Hall effect type The Hall element is used to sense changes in the magnetic field.
The impeller (with blades and notches) is triggered to rotate with the crankshaft. When the notch aligns with the Hall element, the magnetic field passes through and outputs a high-level pulse; when the blade blocks it, the magnetic field bypasses and outputs a low level.
The output is a square wave signal, which requires an external 5V power supply and has strong anti-interference capability.
Optical
It is composed of an LED light source, a photodiode, and a signal disc with a light hole.
When the signal disc rotates, the light hole alternately allows light to pass and blocks it, causing the photodiode to generate a pulse voltage.
It can generate a high-precision 1° crankshaft angle signal, but is susceptible to oil contamination and dust, and is commonly seen in older distributor structures.
Typical fault manifestations
Engine cannot start or starts with difficulty
Insufficient power, vibration, stalling
The fault light comes on (such as P0335, P0336, etc., related fault codes for crankshaft position sensors)
Common causes: aged wiring, dirty sensors, improper clearance (such as the magnetic-electric type clearance should be 0.2–0.4mm)
Installation location
Front end of the crankshaft (near the pulley)
Flywheel or clutch housing
Front end of the camshaft
Inside the distributor (in older models)
Most current mainstream models use magnetic-electric or Hall-type sensors, as their structures are reliable and adaptable. The optical type is rarely used in modern engines due to its environmental sensitivity.
