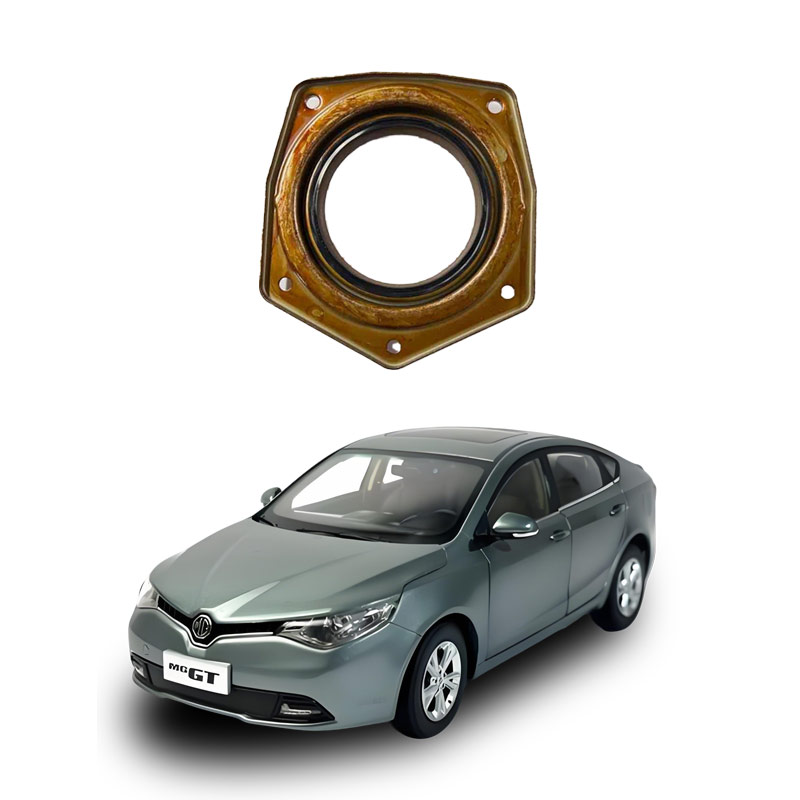

What is the rear oil seal of the car crankshaft?
The rear oil seal of the car crankshaft is a crucial sealing component installed at the end of the engine crankshaft, close to the connection point with the gearbox. Its main function is to prevent the engine's internal oil from leaking outwards and to prevent dust, moisture and other impurities from entering. Core function
Sealed engine oil: Prevents the lubricating oil in the crankcase from seeping out through the gap between the crankshaft and the cylinder block (or transmission housing).
Isolates external impurities: Prevents sand, water vapor, etc. from entering the engine interior, protecting the lubrication system.
Maintains lubrication stability: Ensures the normal operation of the engine lubrication system, avoiding lubrication failure, engine wear, and even overheating due to oil loss.
Structure and Materials
Usually made from high-temperature resistant rubber (such as fluororubber, nitrile rubber) and a metal frame.
It adopts a double lip structure design. One end dynamically seals the rotating surface of the crankshaft, and the other end statically seals the installation hole. Some products also have self-tightening springs to enhance the sealing effect.
During installation, it is necessary to precisely fit to the crankshaft seat hole. The tolerance control is strict (such as ±0.03mm) to ensure reliable sealing.
Common Problems and Effects
Consequences of aging or damage:
Minor: Oil leakage, contaminating the clutch, flywheel, or engine compartment.
Serious: Decrease in oil volume, resulting in insufficient lubrication, causing abnormal engine noise, overheating, and even severe damage.
Difficulty in replacement: Requires disassembling the transmission, with complex work and high costs.
Replacement Recommendation
It is recommended to use original or high-quality aftermarket parts. Non-original parts may only leak again after a few months.
During daily maintenance, check for oil stains. If leakage is detected, handle it promptly. If you would like to know the specific replacement methods for certain vehicle models (such as Mazda 3, Yuchai 6108, Cruze, etc.) or the compatible oil seal models, please provide further details.
The main function of the rear oil seal of the car crankshaft is to seal the connection between the rear end of the engine crankshaft and the gearbox, preventing the leakage of lubricating oil and blocking the entry of external contaminants such as dust and moisture into the engine. The specific functions are as follows:
Preventing oil leakage: Ensuring that the lubricating oil in the engine crankcase does not leak from the rear end of the crankshaft to the gearbox or the outside environment, thereby ensuring the normal operation of the lubrication system.
Blocking external contaminants: Preventing mud, water vapor, dust, etc. from entering the crankcase, avoiding wear on the bearings and internal parts.
Maintaining oil pressure and lubrication: Through dynamic sealing (the lip of the oil seal in contact with the rotating crankshaft) and static sealing (the outer edge of the oil seal in an interference fit with the installation hole), forming an effective sealing barrier to ensure the engine's lubrication efficiency.
If the rear oil seal of the crankshaft becomes aged or damaged, it will cause oil leakage, which may lead to insufficient engine lubrication, overheating, and even serious mechanical failures. Therefore, if there is oil leakage, it is necessary to replace it in time.
Replacing the rear oil seal of the crankshaft is not a major repair; it is a routine maintenance item and usually does not require disassembling the core components of the engine.
The failure of the rear oil seal of the car crankshaft is a common but important engine sealing problem. If not dealt with in time, it may cause insufficient lubrication, accelerated engine wear, and even severe damage. The following are the key information summaries:
Common causes
Edge leakage: The lip of the oil seal is worn, aged, the spring falls off, or the installation direction is incorrect, resulting in a failure of the seal .
Periphery leakage: The oil seal is deformed, loose, tilted, or scratched, mostly due to the non-parallelity of the press-fit surface and the installation surface, causing uneven force on the lip .
Non-quality factors:
Installation without using non-petroleum-based lubricants, causing the oil seal to loosen and fall off ;
Excessive or deteriorated engine oil, resulting in excessive pressure in the crankcase ;
High temperature and harsh working conditions accelerate the aging of the oil seal .
Fault impact
Increased oil consumption, drop in oil level, affecting lubrication effect;
Accelerated engine wear, long-term lack of oil may lead to catastrophic failures such as cylinder seizure and shaft seizure ;
Chassis oil contamination, posing safety hazards.
Handling suggestions
Immediately determine the extent of oil leakage:
Minor leakage: Can temporarily not replace, but need to regularly check the oil level and replenish ;
Significant leakage (such as dripping oil, oil accumulation in the oil pan): Must be repaired as soon as possible .
Emergency measures (for short trips only):
Add an appropriate amount of engine oil to the crankcase to maintain lubrication;
Try temporary sealing: Remove the last main bearing cover and use a mixture of grease-coated asbestos thread and graphite asbestos strip for temporary sealing .
Formal repair plan:
Replace the rear oil seal of the crankshaft: Requires disassembling the gearbox, and it is recommended to be operated by a professional technician ;
Use original factory parts and non-petroleum-based lubricants for installation to ensure sealing performance ;
If caused by excessive engine oil, the oil level should be lowered to the standard level first .
Prevention suggestions:
Regular maintenance, timely replacement of engine oil;
Avoid long-term high-temperature and high-load operation;
When replacing the oil seal, be sure to use special tools to ensure parallelism of installation .
Important reminder: Do not delay the oil leakage of the rear oil seal for a long time; even if it does not affect driving temporarily, it will gradually damage the engine lifespan .
It is recommended to go to a 4S store or professional repair shop for diagnosis and treatment .
