The difference between an automotive radiator and a condenser
Although both the radiator and the condenser involve heat exchange, they have significant differences in terms of function, working medium, installation location, and the system they belong to. Here is a clear comparison based on authoritative public information:
Core differences
Different functions
Radiator: Specifically serves the engine cooling system, dissipating the heat from the circulating hot water of the engine to the air to maintain the normal operating temperature of the engine.
Condenser: Belongs to the air conditioning refrigeration system, cooling and liquefying the high-temperature and high-pressure gaseous refrigerant discharged by the compressor, releasing heat to the outside and achieving the refrigeration cycle.
Different working media
The fluid flowing through the radiator is engine coolant (water + antifreeze).
The fluid flowing through the condenser is air conditioning refrigerant (such as R134a or R1234yf).
Different installation locations
The condenser is usually installed in front of the radiator, both are arranged side by side at the front of the vehicle to share the airflow from the driving, improving the heat dissipation efficiency.
Different systems
The radiator belongs to the engine cooling system;
The condenser belongs to the air conditioning refrigeration system, and the two are not interconnected and operate independently.
Brief description of structure and principle
Radiator structure: Composed of the inlet chamber, the outlet chamber, and the radiator core (containing flat tubes and corrugated heat dissipation fins), achieving heat exchange through the temperature difference between the coolant and the air.

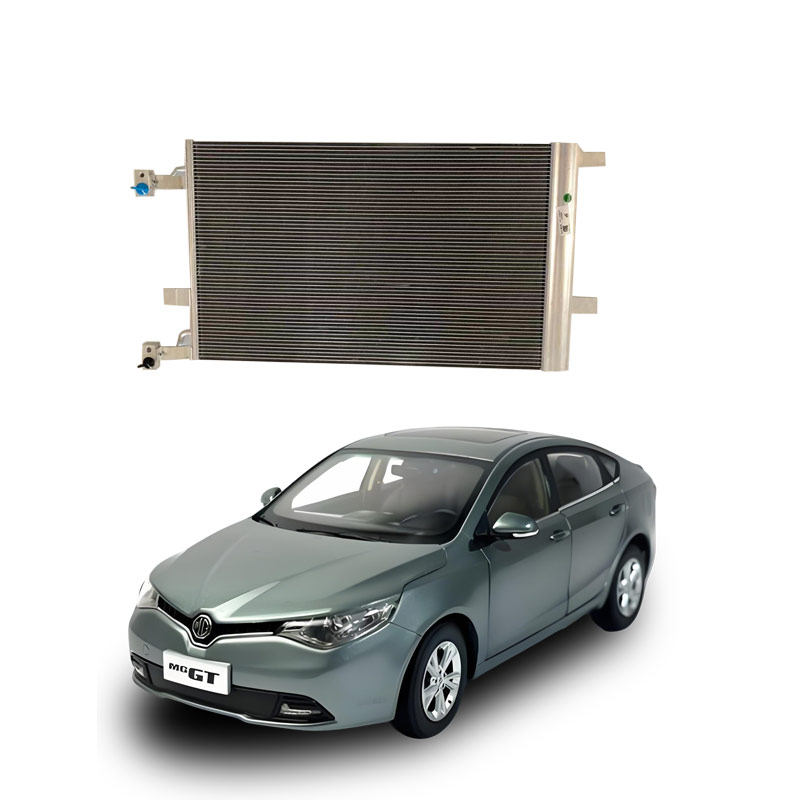

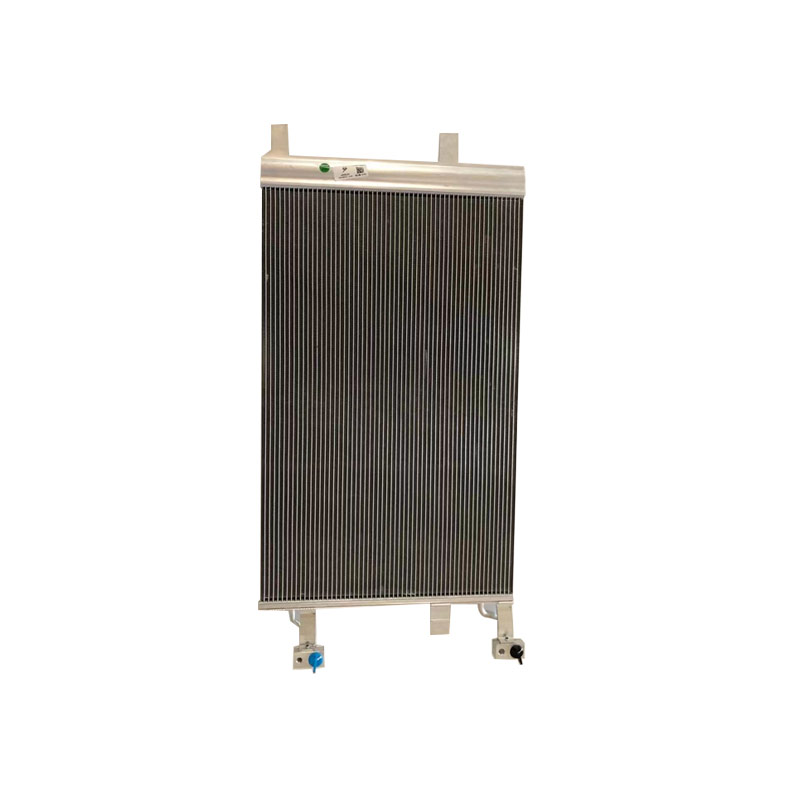

Condenser structure: Mostly in the form of tube sheet or tube belt type heat exchangers, consisting of multiple pipes and heat dissipation fins, focusing on quickly condensing the gaseous refrigerant into a liquid state.
Note: Although some sources (such as)
state that "the condenser is a type of radiator" or "it's just a different name", the mainstream authoritative view clearly distinguishes them as different components, with different functions, media, and systems.
Therefore, they should not be regarded as the same part.
Summary points
Radiator = "cooling down the engine" to protect the engine;
Condenser = "the outdoor unit of the air conditioner" to achieve interior cooling;
Although they have similar appearances and are adjacent in location, they are not the same component and cannot be interchanged.
The condenser of a car is a key heat exchange component in the air conditioning system, responsible for cooling the high-temperature and high-pressure gaseous refrigerant into a liquid state. Once faulty, it will directly affect the air conditioning cooling effect and even damage core components such as the compressor.
Common failure manifestations
Significant decrease or complete loss of air conditioning cooling effect: Blockage or leakage of the condenser will cause the refrigerant to fail to cool and liquefy normally, resulting in a higher temperature at the outlet of the air vent.
Condenser surface has oil stains or damage: Refrigerant leakage often accompanies oil seepage, especially at scratched or cracked areas.
Abnormal system pressure: Blockage causes the high pressure to rise, and leakage causes the low pressure, which may trigger the ECU fault light alarm.
Abnormal noise: The compressor emits "buzzing" or "sizzling" sounds due to pressure imbalance.
Abnormal temperature in the condenser area: Some areas are overheated or undercooled, indicating internal blockage or leakage.
Electronic system alarm: Some models' ECU will record air conditioning-related fault codes and light the warning light.
Typical failure causes
Dirty blockage: Dust, fluff, insects, etc., covering the fins reduce the heat exchange efficiency.
Refrigerant leakage: Caused by stones hitting, corrosion, or aging of seals, common in pipe joint or heat dissipation fins.
Mechanical damage: The condenser is deformed or cracked due to a head-on collision.
Long-term lack of cleaning: Accumulated dirt on the fins seriously affects the heat dissipation performance.
Handling and repair suggestions
Initial inspection:
Observe if there are oil stains, damage, or severe dirt blockage on the condenser surface.
Check if the air conditioning is working properly, and if the temperature at the outlet is normal.
Cleaning treatment (for blockage): Use a low-pressure water gun (with a pressure of ≤ 2MPa) to rinse the surface.
It can be combined with the dedicated air conditioning cleaning agent for deep cleaning.
When cleaning, be careful to protect the heat dissipation fins to avoid deformation.
Leakage handling:
Minor leakage: You can try welding repair, but it needs to be operated by a professional welder.
Severe leakage or large holes: You must replace the condenser. It is recommended to use the original factory specifications.
Pipe joint leakage: Replace the O-ring and then conduct leak detection and pressure test (the test pressure of the condenser is 2.0–2.4MPa).
After maintenance and repair, conduct debugging:
Vacuum for ≥ 30 minutes (vacuum degree ≤ 500mmHg).
Quantitatively add refrigerant (usually 450–650g).
The outlet temperature should be lower than 10℃ and perform road verification.
Preventive measures:
Clean the condenser surface once every quarter.
Perform deep maintenance of the air conditioning system every 20,000 kilometers or every 2 years.
Avoid running the air conditioner with the engine idling for a long time. Regularly check the cooling environment at the vehicle's front.
If you are unsure about the type of fault or lack professional tools, it is recommended to handle it at a 4S store or a certified repair point to avoid misoperation and greater losses.
