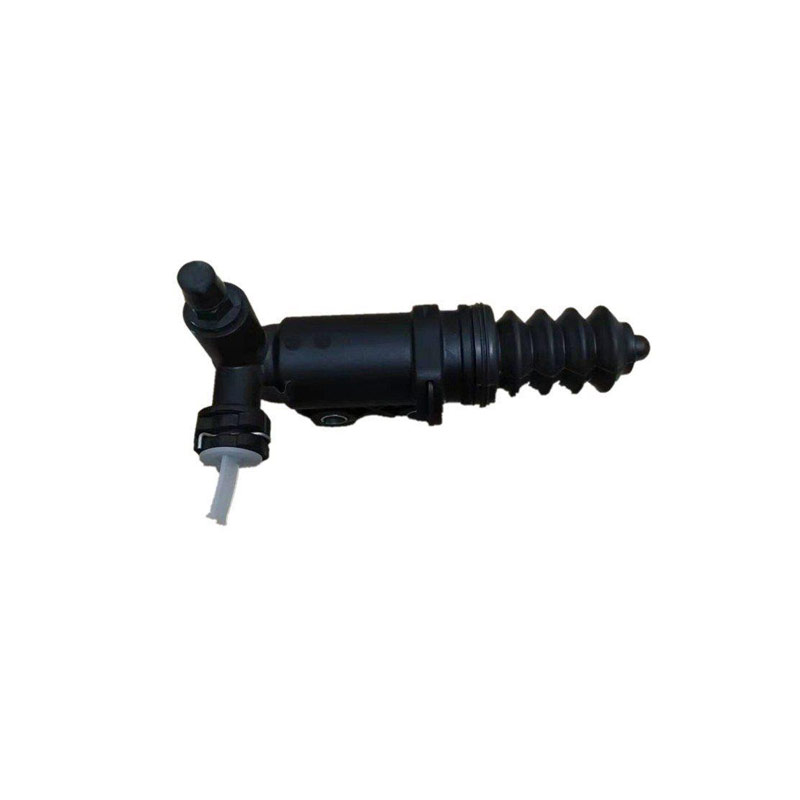

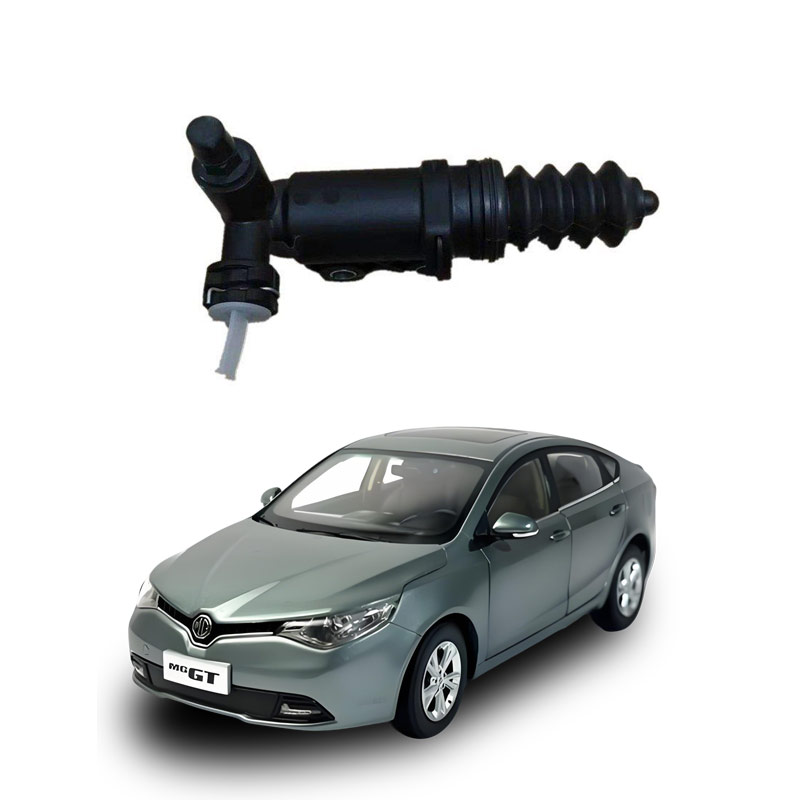

The function of the clutch slave cylinder in a car
The main function of the clutch slave pump is to convert hydraulic pressure into mechanical thrust, pushing the clutch release bearing or release fork to separate the clutch disc from the flywheel, thus cutting off the power transmission between the engine and the gearbox, facilitating gear shifting; when the clutch pedal is released, the slave pump stops working, and the clutch re-engages, restoring power transmission.
The main manifestations of clutch slave pump damage are heavy pedal operation, difficult shifting, incomplete separation, and oil leakage from the slave pump; it needs to be repaired in time to avoid safety hazards.
Core symptoms
Clutch slave pump failure directly affects the operation experience and driving safety, and is manifested as follows:
Operational abnormalities:
When stepping on the clutch pedal, the resistance is significantly increased, and it is impossible to release the clutch normally.
Shifting process is sluggish, with teething sounds (gear friction noise), and in severe cases, it is impossible to engage gears.
Mechanical fault signs:
Oil stains or oil leakage are found at the slave pump, and the leakage of hydraulic oil will corrode surrounding components.
The clutch does not separate completely, and the power transmission is intermittent during vehicle operation, accompanied by shaking or abnormal noises.
The main cause of clutch slave pump oil leakage is the failure of internal seals (such as piston rings, rubber cups), which are due to aging, wear, or quality issues, resulting in hydraulic oil leakage.
The core reason for oil leakage
Internal seal failure: This is the most common cause. The clutch slave pump relies on seals such as pistons, rings, and cups to seal the hydraulic oil. As the vehicle ages or is operated frequently, these rubber or metal components will naturally age, wear, lose elasticity and sealing ability. In addition, the clutch slave pump itself may have manufacturing quality issues (such as pockmarks, cracks) that directly lead to poor sealing.
Piston and cup wear: Long-term operation leads to an increase in the clearance between the components, making it impossible to effectively seal the oil.
Sealing ring aging: Rubber sealing rings are affected by temperature changes, lose plasticizers, and harden and crack.
External factors affecting: The working environment of the slave pump or external interference may also cause oil leakage.
Airway contamination and foreign substances: If the hydraulic system airway is not clean, dust, impurities, etc. will block the sealing surface, damaging the sealing effect.
Improper operation during maintenance or repair may also cause damage to the slave pump shell or oil pipes, resulting in oil leakage.
Installation process problems: If the slave pump is not firmly fixed or connected improperly, it may also cause sealing failure.
Hydraulic system-related issues: Problems with other parts of the clutch hydraulic system may also indirectly cause the slave pump to bear abnormal pressure and leak oil.
System pressure is too high: If the total pump or hydraulic pipeline pressure is abnormally high and exceeds the bearing capacity of the slave pump seals, it will cause oil leakage.
Poor return of the total pump: If the total pump does not return completely, it will maintain residual pressure in the slave pump for a long time, accelerating the wear of the seals.
One-way valve sealing failure: If the one-way valve in the slave pump does not seal properly, oil leakage will occur.
Fault phenomena caused by oil leakage
Oil leakage is not only a fault point but also triggers a series of perceptible vehicle problems, helping owners detect them in time.
Abnormal feeling of the clutch pedal: When stepping on the clutch pedal, it feels that the separation is not smooth or the pedal is particularly heavy, and it is impossible to release the clutch normally, affecting shifting.
Decrease in hydraulic oil level: Checking the clutch oil tank (usually shared with the brake fluid) will reveal a significant drop in the oil level, requiring frequent replenishment.
Visible oil stains and oil spots: Observe oil leakage traces on the clutch slave pump body, nearby oil pipes, or corresponding positions on the chassis. Clutch operation performance degradation: Due to insufficient hydraulic pressure, it may cause the clutch to not disengage completely or engage unevenly, resulting in difficulty in shifting gears or a feeling of power transmission interruption.
Handling and Prevention of Oil Leakage
Once oil leakage is detected, corresponding measures should be taken based on the specific situation, and daily prevention should be emphasized to extend the lifespan of the components.
Diagnosis and Treatment
Inspection and Determination of Leakage Points: First, determine whether the oil leakage occurs at the master cylinder body, the oil pipe interface, or other parts.
Replacement of Damaged Components: Since the seals such as the piston and ring of the clutch master cylinder usually do not have separate parts available, the common practice during repair is to replace the master cylinder assembly. If the oil pipe is aging and cracked or the assist pump (if any) is not properly sealed, it is also necessary to replace it together.
Cleaning and Removal of Foreign Objects: If the oil leakage is caused by foreign objects in the hydraulic circuit, during the replacement of components, it is necessary to thoroughly clean the hydraulic circuit to prevent recurrence of the problem.
Prevention and Maintenance Suggestions
Regular Inspection of Hydraulic Oil: According to the maintenance manual, regularly inspect and replace the clutch hydraulic oil (usually brake fluid), keep the oil clean and at the appropriate level to prevent deterioration of the oil quality and corrosion of the seals.
Avoid Improper Operating Habits: Try to reduce the use of the clutch pedal for a long time or keep the clutch in a semi-engaged state to reduce the continuous working pressure on the master cylinder.
Maintain a Clean Working Environment: Pay attention to cleaning the vehicle chassis, especially after driving in dusty environments, to reduce the invasion of dust and sand on the hydraulic components.
Choose Regular Maintenance and Components: During repair, ensure the installation process is standardized; if components need to be replaced, choose reliable and high-quality genuine parts to avoid early failure due to installation or component quality issues.
