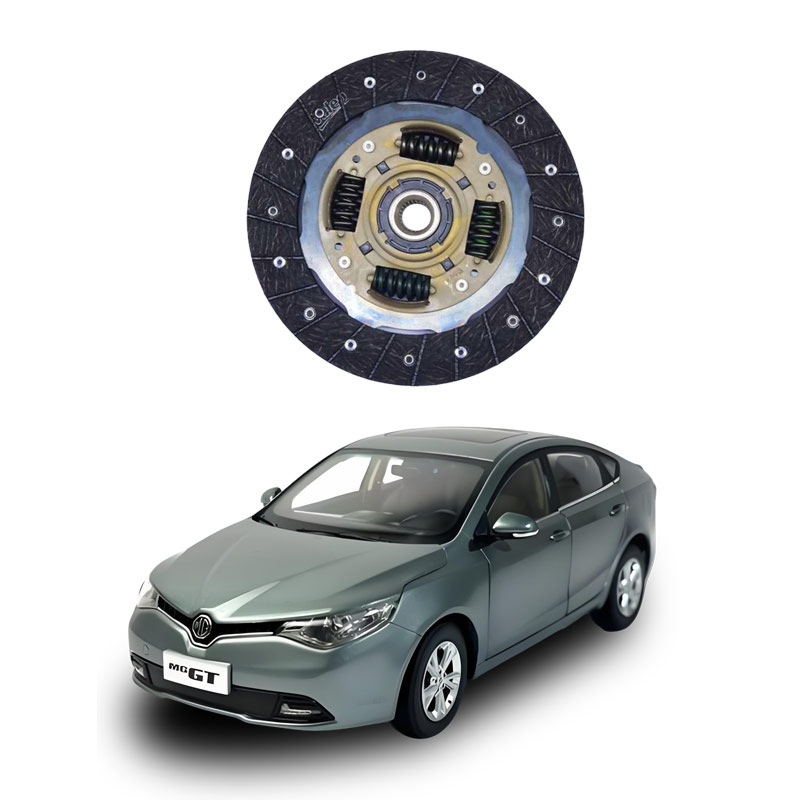

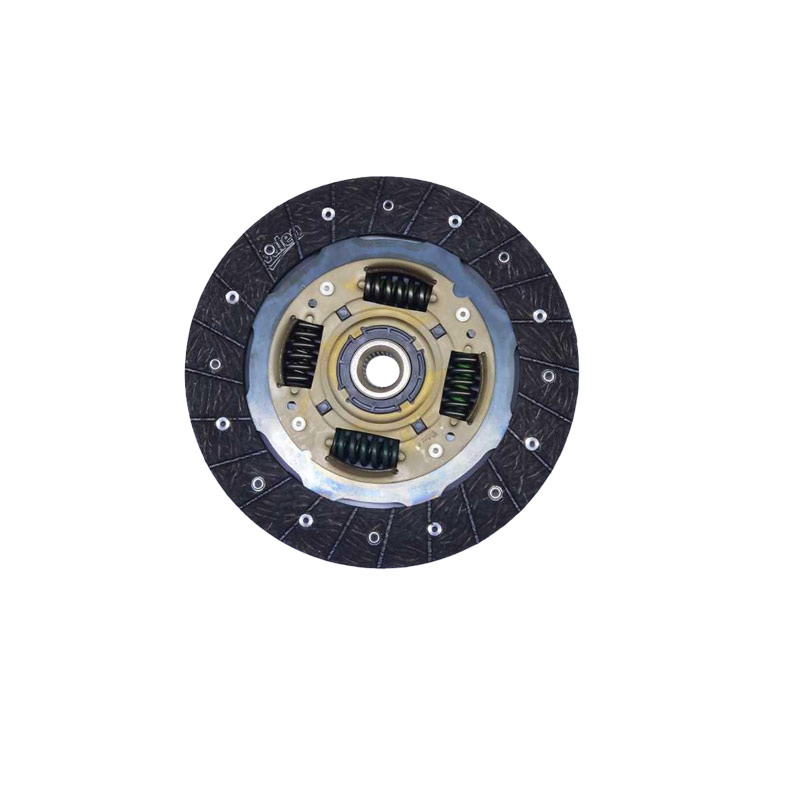

What is an automotive clutch plate?
The clutch plate of a car is one of the core components of the clutch system in manual transmission vehicles. It is a composite part made of friction materials and mainly functions to transfer or cut off power between the engine and the gearbox, enabling smooth starting, gear shifting, and parking of the vehicle.
Core Function
Power Transmission: Through friction between the clutch plate and the flywheel or pressure plate, the power output by the engine is transmitted to the gearbox.
Power Disconnection: When the clutch pedal is depressed, the clutch plate separates from the flywheel, interrupting the power transmission, facilitating gear shifting or parking.
Material Evolution
In the early days, asbestos-based friction materials were commonly used. Due to increased environmental and safety requirements, the current mainstream materials include:
Semimetallic friction materials
Composite fiber friction materials
Ceramic fiber friction materials
These materials must have a high and stable friction coefficient and good wear resistance.
Common Types (Based on the Number of Clutch Plates)
Single Plate: Simple structure and good heat dissipation, suitable for small and medium-sized vehicles
Dual Plate/Multi-Plate: Stronger torque transmission ability, mostly used in medium and heavy-duty vehicles or high-torque scenarios
Service Life and Replacement Signals
Typical Service Life: 10–15 kilometers; for drivers with good driving habits, it can reach over 20 kilometers; beginners may need to replace it after 5–6 kilometers.
Typical Signs of Replacement:
Foul smell or smoke during starting or acceleration (clutch plate overheating and ablation)
Difficulty shifting gears, unstable power transmission
Abnormal clutch pedal travel (too high or too low)
Increased engine speed but no corresponding increase in vehicle speed (slipping) Notes for Attention
Prohibit "Leaving the Clutch Pedal Down": This will cause semi-engagement wear on the clutch plate and shorten its lifespan.
Avoid contamination by oil, mud, and sand: Contact with grease or debris can cause slippage or erosion.
Regularly check the clearance and assembly quality: Excessive clearance can lead to slippage, while too small a clearance will result in incomplete disengagement.
Comparison with brake pads
Although both are friction materials, their functions and installation locations are completely different:
Clutch plate: Located between the engine and the gearbox, used to transfer power
Brake pad: Installed in the brake caliper, used for deceleration or parking
If you need to purchase or replace them, it is recommended to refer to the vehicle maintenance manual or consult a professional technician. Well-known brands include Dongfeng, Tiantaoduren, Man, Shenmindaohao, Yutong, etc.
After the clutch plate is damaged, the most effective solution is to immediately send the vehicle to a professional repair shop for inspection and replacement.
Emergency handling and sending for repair
First measure: Safely park the vehicle and contact professional repair services. Once signs of damage to the clutch plate are detected (such as difficulty shifting gears, insufficient power, or a burnt smell), immediately park the vehicle in a safe area and contact or go to a professional repair shop for inspection and repair.
Choose the repair method based on the vehicle's condition:
The vehicle can still move slowly: Try driving carefully to the repair shop. For dual-clutch models, if the clutch plate in the low gear (such as first gear) is damaged, you can try switching to a higher gear (such as second gear) and moving slowly.
The vehicle cannot move normally: The safest and most reliable way is to call for a tow truck for rescue, transporting the vehicle directly to the repair shop. Other methods such as pushing the vehicle to start are risky and are not recommended in non-emergency situations.
Professional repair plan
Core repair operation: Replace the clutch plate. The repair personnel will disassemble the gearbox and other related components, remove the damaged clutch plate and install a new one.
It is recommended to replace related components together. Since the clutch plate, pressure plate, and release bearing (collectively known as the "clutch trio") usually work together and have similar lifespans, it is often recommended to replace the pressure plate and release bearing together during repairs to ensure the overall performance and durability of the system.
Further understanding
How to determine if the clutch plate may be damaged: You can make a preliminary judgment based on phenomena such as obvious shaking when starting the vehicle, abnormal increase in clutch pedal travel, insufficient acceleration or difficulty shifting gears.
Common causes of damage and prevention: Clutch plate damage is often caused by improper driver operation (such as frequent semi-engagement, sudden lifting of the clutch pedal), natural aging and wear, or excessive use. Daily practice should include operating the clutch smoothly, avoiding prolonged semi-engagement, and regularly checking the vehicle's condition.
