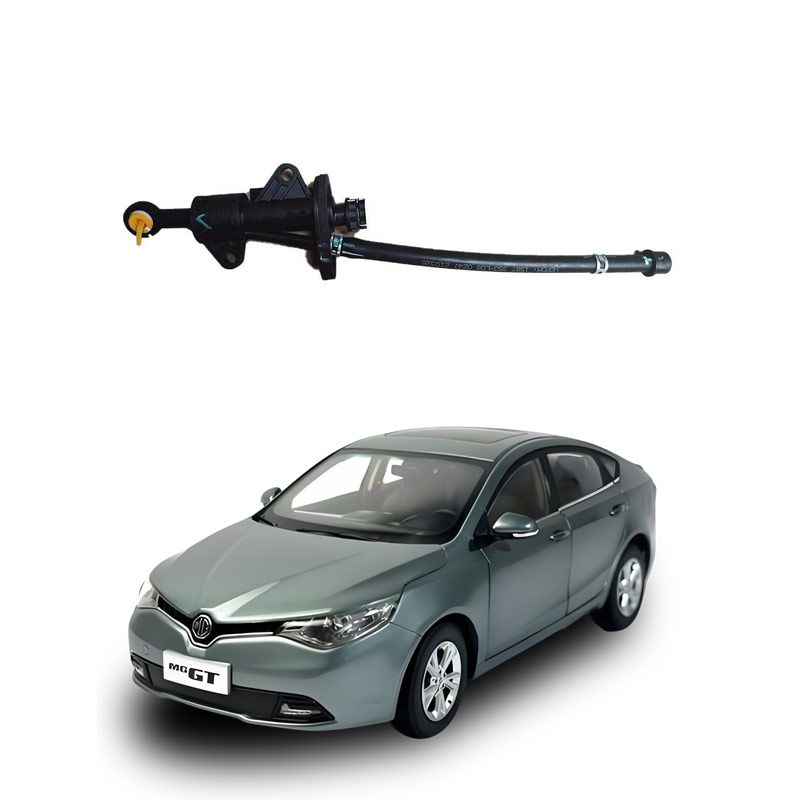

What is the master cylinder of the car clutch?
The clutch master cylinder is a key component in the hydraulic clutch system of manual transmission vehicles, responsible for converting the mechanical force applied by the driver on the clutch pedal into hydraulic pressure, and then transmitting it through the brake fluid lines to the clutch slave cylinder (or booster), thereby controlling the disengagement and engagement of the clutch.
Core functions
Force conversion: Transforms the mechanical force applied by the pedal into hydraulic energy.
Control of clutch operation: Through hydraulic pressure, the push rod drives the lever of the slave cylinder, causing the separation lever to move forward, cutting off the power connection between the engine and the gearbox (disengagement); after releasing the pedal, the hydraulic pressure is released, and the clutch re-engages.
Ensuring smooth shifting: Ensures a smooth shifting process and stable power transmission.
Brief description of the working principle
Pressing the clutch pedal → The push rod drives the piston of the master cylinder → The oil pressure increases → The brake fluid flows through the oil pipe to the slave cylinder → Pushes the separation lever → The clutch is disengaged.
Release the clutch pedal → The piston returns to its original position → The hydraulic pressure is released → The separation lever returns to its original position under the action of the return spring → The clutch is engaged.
Internal compensation mechanism: Automatically adjusts the pressure difference in the oil chamber through the intake valve to compensate for thermal expansion or residual vacuum in the pipeline, maintaining system stability.
Structural features
The central part of the piston is equipped with a radial long circular hole, and is secured with a limit screw to prevent rotation.
The intake valve is installed on the axial hole of the push rod on the piston, used to balance the pressure between the reservoir and the working chamber.
It is equipped with a dust cover and a sealing structure, etc., for optimized design to enhance durability.
Common application brands
It is widely used in the following vehicle models (including buses, heavy trucks, engineering vehicles, etc.):
Dongfeng Keltar, Foton, Sinotruk, Shaanxi Auto, Haowo, Sany, Mercedes-Benz, Jinliu, Hai Ge, Shantui, Huacheng, Delong, Linke, etc.
Fault manifestations (requiring prompt repair)
Difficulties in shifting gears/switching gears
Incomplete clutch disengagement
Soft pedal, abnormal pedal travel
Abnormal noise during semi-engagement or starting delay
Maintenance suggestions
Replacement cycle: There is no fixed mileage, but if any of the above faults occur, it is recommended to check and repair promptly.
Importance of matching: Especially for Japanese/American compact models (such as Lanzhou, Bao Li, New Jetta, etc.), it is recommended to choose original factory-level compatible products to ensure the pedal feel and response performance.
If you need further information on the compatible models of specific vehicles, you can refer to the clutch master cylinder questions and answers on Autohome.
