Car turn signals
A flashing indicator light that warns pedestrians or vehicles in front of or behind the vehicle and indicates the direction of travel of the vehicle itself

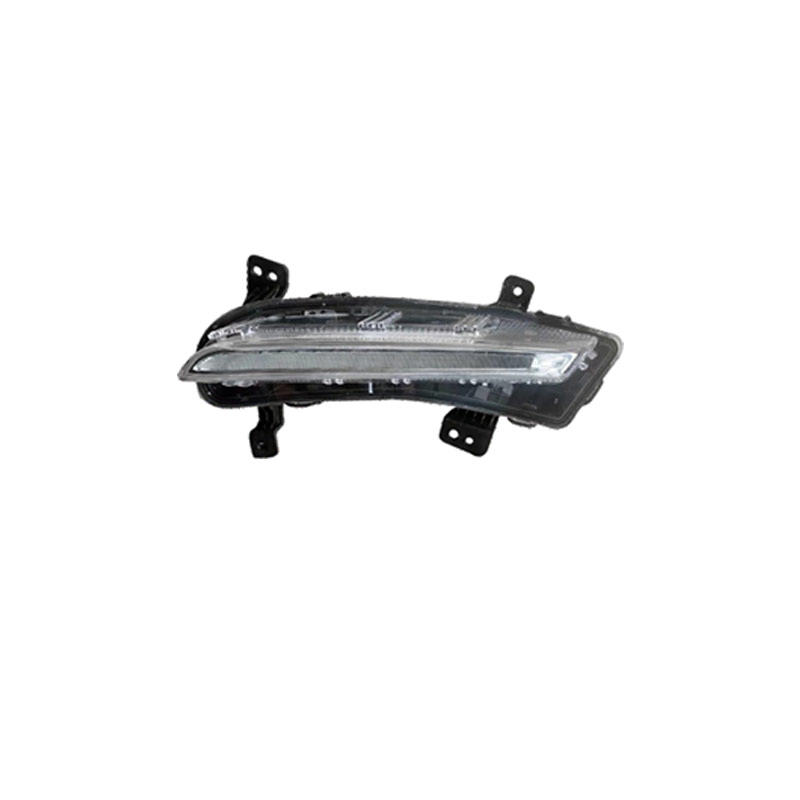

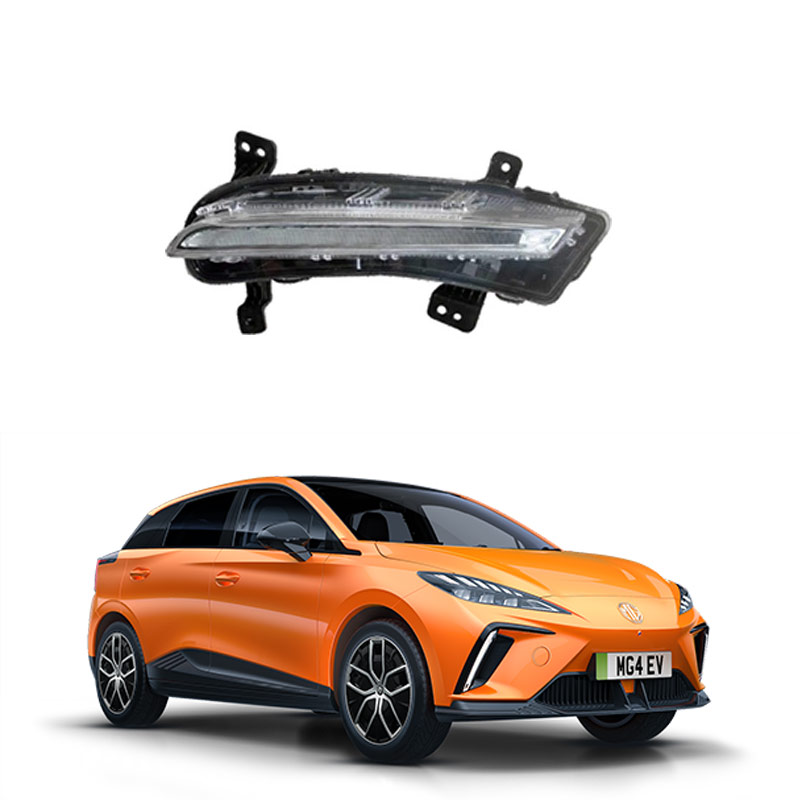

The turn signal lights of a car are indicator lights that flash signals to warn pedestrians or other vehicles around when the vehicle is turning or changing lanes, indicating the direction of travel. They are usually installed at the front, rear and sides of the vehicle body. According to the light source material, turn signals can be classified into gas turn signals and LED turn signals. The former has mature technology and low cost, but it poses a risk of mercury pollution. The latter is pollution-free, has a long lifespan, but its popularity is limited by cost. Its flashing function is controlled by a scintillator, and the main types include wire resistance type, capacitive type and electronic type. Among them, the electronic type achieves precise stroboscopic effect through relays or integrated circuits.
The manual indication device for automotive turn signals was first invented by Florence Lawrence in 1914. In 1936, Buick was the first to adopt the modern electronic turn signal system. With technological advancements, leds have gradually replaced traditional gas light sources, and the base models have formed standardized specifications such as P21W and PY21W based on differences in power and size [1]. The internationally recognized yellow light has become the mainstream color standard due to its strong penetrating power. Chinese regulations mandate that all imported vehicle models uniformly use yellow turn signals. Modern turn signal systems enhance safety and convenience through automatic return mechanisms, beeping alerts, and fault diagnosis functions (such as abnormal flashing frequencies indicating bulb damage).
The lamp tube adopts xenon lamp tube, with a single-chip microcomputer control circuit, and rotates left and right for continuous stroboscopic operation.
The use of flashers: According to their different structures, they can be classified into three types: resistive wire type, capacitive type and electronic type. Among them, the wire resistance type can be further divided into the hot wire type (electric heating type) and the fin type (bouncing type), while the electronic type can be further classified into the hybrid type (relay with contact and electronic components) and the all-electronic type (without relay). For instance, the spring-type flash device utilizes the principle of the thermal effect of current. It uses thermal expansion and contraction as the driving force to make the spring plate undergo sudden changes in action, thereby connecting and disconnecting the contacts and achieving the flashing of the light.
Youdaoplaceholder0 Faults of car turn signals are usually caused by damaged bulbs, blown fuses, relay failures or wiring issues. They can be resolved by inspecting and replacing the corresponding parts or through professional maintenance .
Youdaoplaceholder0 Fault cause analysis
Youdaoplaceholder0 bulb damage : The most common cause is that one side of the turn signal does not light up. It can be judged by observing whether the bulb is black or cracked.
Youdaoplaceholder0 Fuse blown : The corresponding fuse in the fuse box of the engine compartment or driver's seat has blown and needs to be replaced with a fuse of the same specification.
Youdaoplaceholder0 Relay failure : The damage of the flash relay will cause all turn signals to fail. You can short-circuit the two terminals with a screwdriver for testing. If the light is on, the relay needs to be replaced.
Poor contact of switch : Oxidation inside the turn signal switch or loose circuit. Use a multimeter to check and replace the parts.
Youdaoplaceholder0 Wiring issue : The power cord is open-circuited or has poor contact. It is necessary to check the connection points of the wiring and the status of the plug.
Youdaoplaceholder0 repair steps
Youdaoplaceholder0 replace the bulb :
Take out the old bulb after removing the lampshade.
Install a new bulb of the compatible model (pay attention to power matching).
Youdaoplaceholder0 Replace the fuse :
Locate the fuse corresponding to the turn signal light (refer to the fuse box marking).
Use a special clip to pull out the old fuse and replace it with a new one.
Youdaoplaceholder0 detection relay :
Short-circuit the two terminals of the flash relay for testing.
If the turn signal resumes working, replace the relay.
Youdaoplaceholder0 troubleshoot the line :
Check whether the live wire from the turn signal switch to the flash relay is energized.
Use a multimeter to detect the open circuit points in sections.
Youdaoplaceholder0 precautions
Youdaoplaceholder0 power-off operation : The power supply must be turned off before maintenance to prevent short circuits.
Youdaoplaceholder0 Component matching : When replacing bulbs and fuses, make sure the models are consistent. It is recommended to purchase original factory parts at 4S stores.
Youdaoplaceholder0 Complex circuit handling : It is recommended that line faults be handled by professional maintenance personnel to avoid the expansion of faults due to misoperation.
Youdaoplaceholder0 synchronous detection : After replacing the components, the function of the hazard lights needs to be tested to confirm that the overall signal system is normal.
