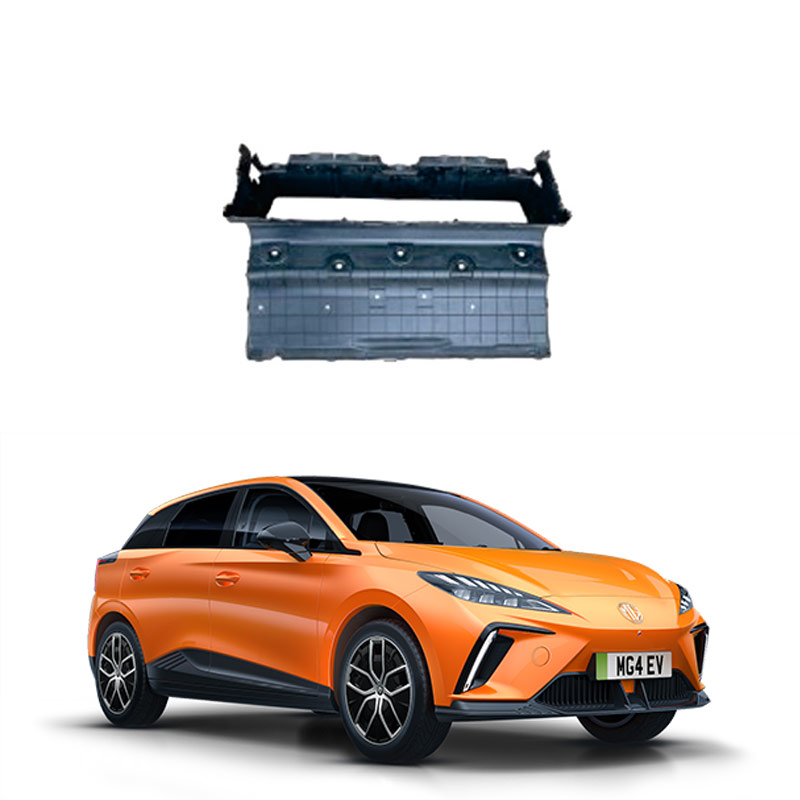

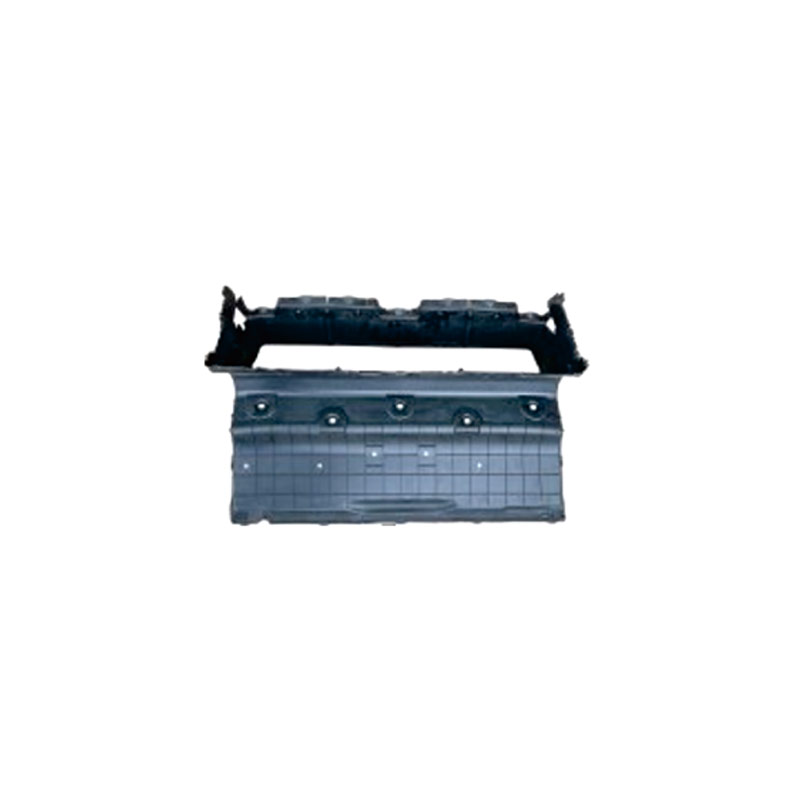

The function of the air deflector assembly for the automotive cooling system
The main function of the automotive cooling system air deflector assembly is to enhance heat dissipation efficiency and reduce air resistance by optimizing the air flow path. Its specific functions are as follows:
Optimize heat dissipation efficiency
The air deflector, by rationally designing the air intake duct, can accelerate the flow of cooling air and improve the heat dissipation efficiency. For instance, in high-temperature component areas such as battery boxes, the air deflector can guide the airflow to directly contact the high-temperature components, ensuring that they remain within the optimal operating temperature range.
Reduce air resistance
The air deflector guides the direction of the airflow and reduces the interference of turbulence around the vehicle body on driving stability. For instance, the air deflector of a van can enhance aerodynamic performance, reduce the air resistance coefficient, and thereby improve fuel economy.
Keep the engine clean
When a vehicle passes through a muddy road, the air deflector can block the mud and sand, preventing them from entering the engine compartment and keeping the interior clean.
Enhance power performance
In high-performance models, the air deflector optimizes the path of hot air exhaust in the engine compartment, reduces the vehicle's lift, and increases the downforce of the entire vehicle, thereby improving handling stability.
The air deflector assembly of the cooling system is a key auxiliary component in the engine cooling system, mainly used to guide the airflow towards the radiator to enhance the heat dissipation efficiency and ensure that the engine operates at an appropriate temperature . It is usually installed around the radiator. By optimizing the aerodynamic design, it reduces heat accumulation and enhances the cooling effect of the coolant, especially preventing the engine from overheating in high-temperature environments .
In terms of design, the air deflector assembly must meet strict manufacturing standards. For instance, the tolerance of the trimming line should be controlled within ±1.5mm, and the tolerance of the non-matching surface should be ±2.0mm to ensure precise matching with the radiator and fan assembly . This design ensures the directional flow of airflow and avoids the fluctuation of coolant temperature, thereby maintaining the stable performance of the engine .
The working principle of the air deflector depends on its structural layout: when the cooling fan is running, the air deflector forces external air into the surface of the radiator, accelerating the heat exchange process of the coolant, which is particularly important at low vehicle speed or idle . Meanwhile, it serves as a protective barrier for the cooling system, reducing the invasion of external impurities and extending the lifespan of components .
At the application level, the air deflender assembly can be purchased through professional platforms, such as wholesale markets which offer a variety of models to meet the needs of different vehicle models . Its integrated optimization helps improve the thermal management efficiency of the entire vehicle and is a fundamental component for ensuring the reliable operation of the engine .
The material selection for the air deflector assembly mainly depends on factors such as application scenarios, heat dissipation requirements, and costs. Common materials include:
Metal material
Youdaoplaceholder0 aluminium alloy
Youdaoplaceholder0 Features : lightweight, high thermal conductivity, corrosion-resistant, suitable for high-temperature environments, can improve heat dissipation efficiency and reduce overall weight . Some car air deflectors are made of all-aluminum, taking into account both heat dissipation performance and aesthetics .
Youdaoplaceholder0 applications : automotive engine cooling systems (such as the air deflector of the E36 model), air conditioning outdoor unit protective covers .
Youdaoplaceholder0 stainless steel
Youdaoplaceholder0 characteristics : high strength, rust-proof and corrosion-resistant, suitable for harsh environments .
Youdaoplaceholder0 application : Air conditioner outdoor unit air deflector, which needs to be exposed outdoors for a long time or in a high-humidity environment .
Engineering plastics
Youdaoplaceholder0 polypropylene (PP)
Youdaoplaceholder0 Features : Resistant to acids and alkalis, anti-aging, and never rusts. The full hot melt welding process enhances structural stability. Lightweight design can reduce the load of equipment .
Youdaoplaceholder0 application : The mainstream material for the air deflector of air conditioners' outdoor units, especially suitable for chemical or coastal areas with high salt fog .
Youdaoplaceholder0 heat-resistant engineering plastics
Youdaoplaceholder0 Characteristics : Resistant to chemical corrosion and high and low temperatures (such as the commonly used materials for coolant kettles), ensuring long-term stability in use .
Youdaoplaceholder0 application : automotive cooling system components (such as fan covers, air ducts).
Composite material
Youdaoplaceholder0 copper-aluminum composite structure
Youdaoplaceholder0 Feature : Combining the high thermal conductivity of copper with the lightweight advantage of aluminum, the heat conduction efficiency is enhanced through copper tubes (such as in radiator design) .
Youdaoplaceholder0 application : In high-end heat dissipation scenarios, when some air deflectors are integrated with heat sinks, this solution can be referred to.
Factors for material selection considerations
Youdaoplaceholder0 heat dissipation requirements : aluminum alloy and copper-aluminum composite are suitable for high-efficiency heat dissipation scenarios; PP plastic meets general protection requirements .
Youdaoplaceholder0 Environmental adaptability : stainless steel has strong corrosion resistance, PP plastic is resistant to acids and alkalis, and aluminum alloy needs surface treatment to prevent oxidation .
Youdaoplaceholder0 Lightweight requirements : aluminum alloy and PP plastic significantly reduce the weight of components .
Note: The specific selection should be comprehensively evaluated in combination with the actual working conditions (such as temperature range, chemical contact, mechanical load, etc.).
