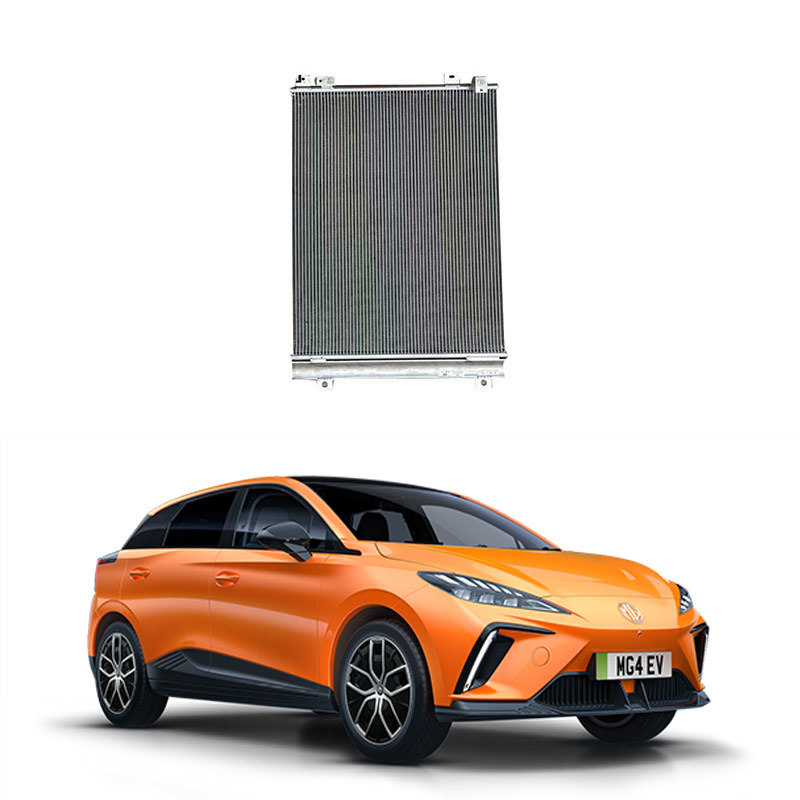

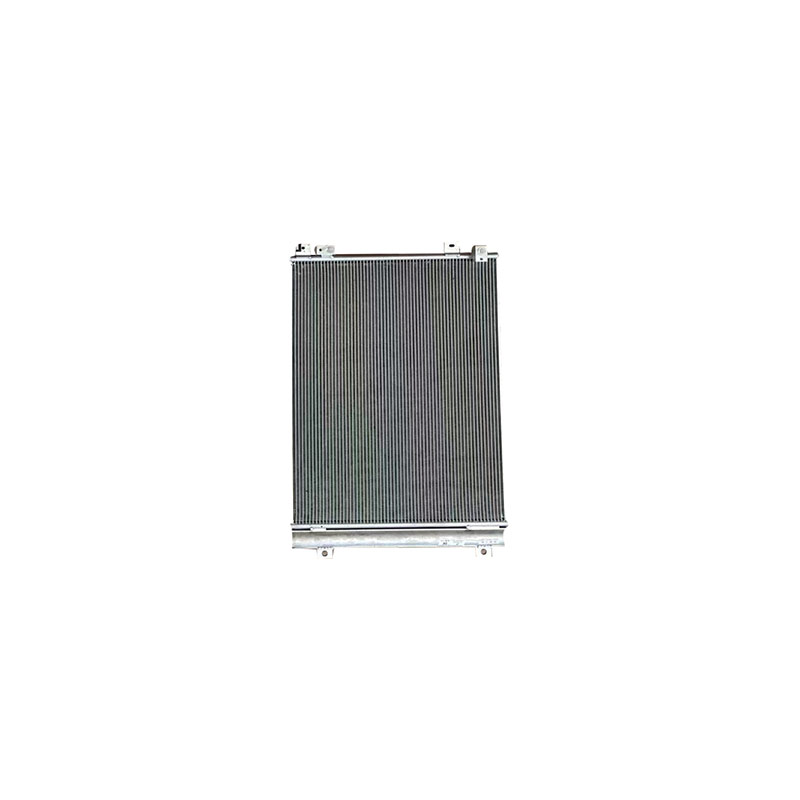

What is a car condenser
The automotive condenser is a core heat exchange component in the automotive air conditioning system, responsible for cooling and converting high-temperature and high-pressure gaseous refrigerants into liquid form to achieve the function of heat dissipation.
Youdaoplaceholder0 Core Functions and Working principle
The automotive condenser is a key component of the refrigeration system. Its core function is to cool the high-temperature and high-pressure gaseous refrigerant (such as R134a or R32) discharged by the compressor into a liquid state through heat exchange. This process is achieved through a structure of copper tubes and aluminum heat sinks, relying on the head-on airflow when the vehicle is in motion or the forced heat dissipation by the cooling fan.
Youdaoplaceholder0 Physical structure and installation position
Youdaoplaceholder0 Structural features :
It adopts a combination design of multiple rows of copper tubes and aluminum foil fins to increase the heat dissipation area.
The diameters of the pipe interfaces are relatively large, and the materials are mostly rubber or plastic.
Youdaoplaceholder0 installation location :
It is usually located near the front radiator of the vehicle and arranged side by side with the engine radiator.
It is designed on the windward side to utilize the driving airflow to enhance the heat dissipation efficiency.
The role of in the refrigeration cycle
The automotive air conditioning system completes the refrigeration cycle through four major components:
The compressor compresses the refrigerant into high-temperature and high-pressure gas.
The condenser cools and liquefies the gas into a medium-temperature and high-pressure liquid.
The expansion valve atomizes the liquid into a low-temperature and low-pressure state.
The evaporator absorbs the heat inside the vehicle to complete the cooling process.
The automotive condenser is a core component of the air conditioning system. Its main function is to cool the high-temperature and high-pressure gaseous refrigerant discharged by the compressor into a liquid state, achieving heat exchange to maintain a stable temperature inside the vehicle.
Youdaoplaceholder0 Core function
Youdaoplaceholder0 Heat exchange and refrigerant liquefaction : The condenser, through a copper tube and aluminum heat sink structure, cools the high-temperature and high-pressure gaseous refrigerant (such as Freon) discharged by the compressor into liquid high-pressure refrigerant, releasing heat to the external air.
Youdaoplaceholder0 Pressure regulation : Reduce the pressure of the refrigerant through the cooling process to provide conditions for the subsequent heat absorption by the evaporator.
Youdaoplaceholder0 working principle
Youdaoplaceholder0 thermodynamic cycle : The refrigerant undergoes a phase change from gas to liquid in the condenser, and the heat is dissipated through forced convection by the heat sink and the fan.
Youdaoplaceholder0 High-efficiency heat dissipation design : By using heat-conducting metals (such as copper tubes) and fin structures that increase the heat dissipation area, the heat exchange efficiency is enhanced.
Youdaoplaceholder0 Additional effect
Youdaoplaceholder0 dehumidification and air purification : During the cooling process, moisture in the air is absorbed. Some condensers can also adsorb odor molecules through aluminum sheets, improving the air quality inside the vehicle.
The main manifestations of faults in automotive condensers are air conditioning cooling failure, decreased heat dissipation efficiency and refrigerant leakage, which need to be solved through professional detection and targeted maintenance .
The core manifestation of the fault is
Youdaoplaceholder0 Loss of air conditioning cooling function : Refrigerant leakage can cause the air conditioning system to completely fail, and the leakage point is usually accompanied by oil stains or scratch marks.
Youdaoplaceholder0 Significant decrease in heat dissipation efficiency : Dust on the surface of the condenser or internal blockage will reduce the heat exchange efficiency, which is manifested as a decrease in the air volume of the air conditioner and poor cooling effect.
Youdaoplaceholder0 Abnormal system pressure : The leakage pressure of the condenser can reach 2.0-2.4MPa. The leakage may cause the compressor to overheat or get damaged.
Analysis of the main causes of
Youdaoplaceholder0 Physical damage : Deformation or cracking of condenser fins caused by vehicle collision or impact from flying rocks on the road (accounting for approximately 35% of fault cases).
Youdaoplaceholder0 Dirt blockage : Long-term lack of cleaning causes dust, insect corpses and other foreign substances to accumulate between the heat sinks, affecting the air circulation efficiency.
Youdaoplaceholder0 refrigerant anomaly :
Leakage causes pressure imbalance in the system.
Excessive filling causes the condenser to operate under overload conditions.
Youdaoplaceholder0 Material aging : Inferior condensers are prone to deformation, cracking and other problems in high-temperature and high-pressure environments.
Youdaoplaceholder0 Key points for handling and maintaining
Youdaoplaceholder0 Emergency measures :
Surface cleaning: Rinse with a mist water gun or a dedicated foam cleaner (water pressure should be controlled at 3-5 bar).
Pipeline inspection: Locate the leakage point by fluorescence leak detection or electronic leak detector.
Youdaoplaceholder0 professional maintenance process :
Disassembly and cleaning: Use nitrogen to purge the internal pipelines (the pressure is recommended to be 0.3-0.5MPa).
Welding repair: For aluminum condensers, argon arc welding repair is adopted. After the repair, a 24-hour pressure holding test is required.
Youdaoplaceholder0 preventive maintenance :
Clean the condenser every 30,000 kilometers or annually.
Check the integrity of the heat sink before and after the rainy season.
When replacing the air conditioning filter, check the surface condition of the condenser simultaneously.
